Product Details:
|
| Warranty: | 1 Year | Place Of Origin: | Donggaun,china |
|---|---|---|---|
| Model Number: | GSA 2740 | Relative Error Of The Test Force: | Within±1% |
| Compression Platen Dimensions: | 230mm | Power: | Hydraulic, 1.0kW |
| Max Testing Force: | 300kN | Weight: | 650kg |
| Highlight: | Compression Testing Machine,Hydraulic Compression Testing Machine |
||

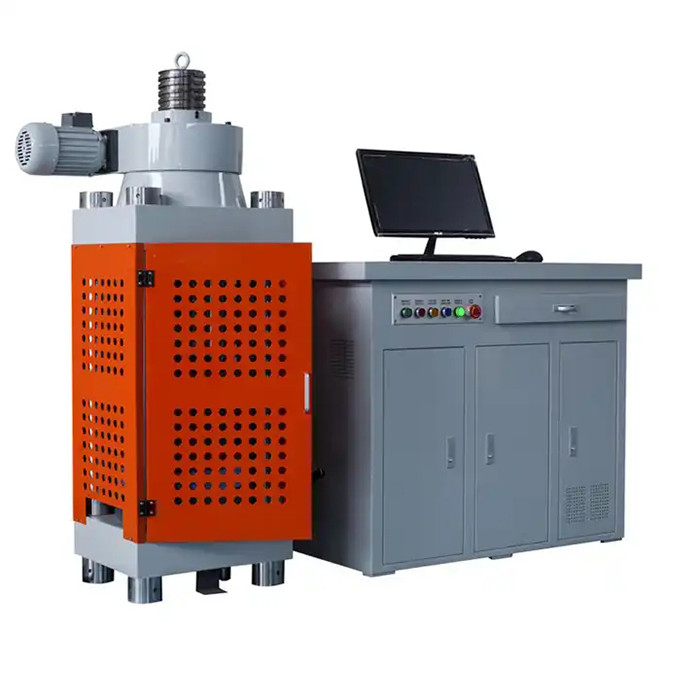

Hydraulic 300KN Compression Testing Machine For Civil Engineering Materials
product presentation:
This electro-hydraulic servo compression testing machine(YAW-300) is driven by the hydraulic power source. The electro-hydraulic servo control technology, computer data collection and processing can realize the closed loop control and automatic detection of high-precision materials testing equipment. This machine is composed of the testing host, oil source (hydraulic power source), measurement and control system, as well as the test instruments of four parts, its max test force can reach to 300 kn, testing machine precision is better than that of grade 1.
This type of machine can carry out load rate setting and satisfy the corresponding national standard. The loading rate control index shall carry the testing of compressive strength, bending test for cement, concrete, etc civil engneering materials under the rated testing force, which has the founctions of loading, time and testing curve dynamic display as well as timely controlled and max force holding.
It is a host oil source separation structure and suitable for the compressive test of cement and concrete. With proper clamps and measuring devices, it can meet the requirements of split tensile test, flexural test and static compression elastic modulus test of concrete.
The testing machine and accessories in line with the GB/T2611, GB/T17671, GB/T16826, GB/T50081 standard requirements.
Parameters
| Level | 1 |
| Maximun load | 300KN |
| Relative error of the indicator | Within ±1% |
| Ccompression plate size | φ230mm |
| 1%-100%FS | |
| Piston stroke | 150mm |
| Size | 115*50*150(mm) |
| Compression space | 280mm |
| Piston stroke | 150mm |
| Power | 1.0kW |
| Weight | 650kg |
FAQ:
1. Are you a manufacturer?
Yes, we are the largest manufacturer of universal tensile testing machines and have a history of more than 11 years.
2. Do you have after-sales service?
In general, every machine shipped from our factory provides 12 months of free maintenance. If your machine does not work properly, you can
contact us and we will try our best to communicate with you via email or skype video chat. We promise we will reply to you within 24 hours and
with 3 Within a working day to provide solutions.
3. What is the delivery deadline?
Most of the time, we have inventory at the factory. If not, the delivery time is usually 15 to 20 days after receiving the payment. If you need it
urgently, we can consider making special arrangements for you.
4. What kind of packaging and transportation do you use?
Under normal circumstances, we will use ordinary orders such as DHL, Fedex, UPS TNT transport. Large orders will use aviation or shipping.
5. Can the device be customized?
We can not only provide standard machines, but we can also provide customized machines according to your needs.At the same time, we can
also place your trademark on the machine.
6. What kind of packaging do you use?
Plastic sealed and sturdy wooden box.
7. What payment methods do you support?
Paypal, T/T, Western Union and Escow.
