Product Details:
|
| Model NO: | GSA-C427 | Brand: | GSKA |
|---|---|---|---|
| Inner Size (cm): | 160x100x50 | Brine Temp: | 35°C±1°C 50°C±1°C |
| Test Chamber Volume: | 800L | Compressed Air Pressure: | 1.00±0.01kgf/cm2 |
| Test Room Relative Humidity: | 85%RH Or More | Power: | AC220V1Φ20A |
| High Light: | Temperature Test Chamber,Climate Test Chamber |
||

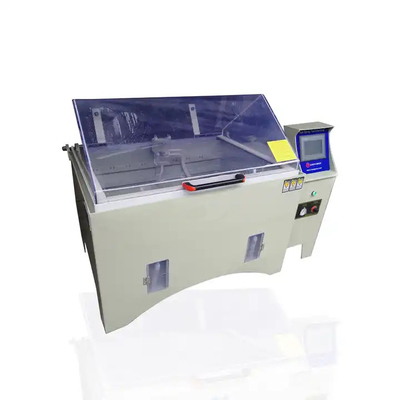

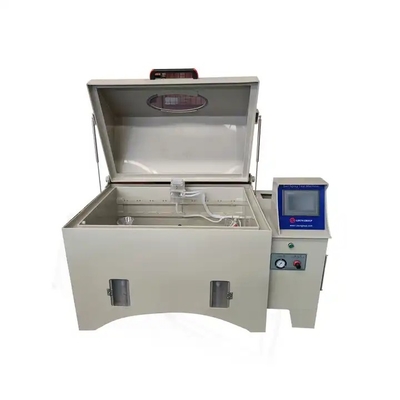

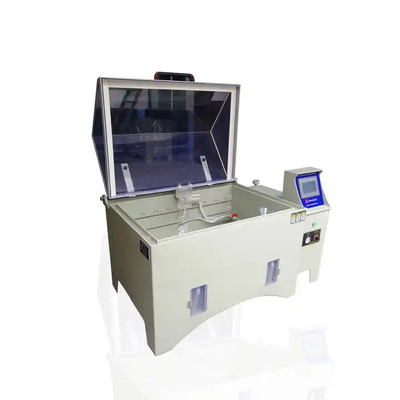

Programmable Corrosion Test Chamber Can Be Used For Material Corrosion Test
product presentation:
corrosion testing machine is a kind of testing equipment used to corrosion test of metal, plastic, rubber and other materials. It can simulate a variety of environmental corrosion conditions, including high temperature, high humidity, acid, alkaline, salt spray and so on. Corrosion testing machine is mainly used for quality detection and quality control of materials, especially in aviation, automobile, electronics, chemical, construction and Marine and other fields. Common corrosion testing machines are salt spray testing machine, thermal oxidation testing machine, acid fog testing machine and so on.
Specifications:
| Model | GSA-C427 | GSA-C428 | GSA-C429 | GSA-C430 | GSA-C431 |
| Inner size (cm) | 60x45x40 | 90x60x50 | 120x100x50 | 160x100x50 | 200x100x50 |
| External size(cm) | 107x60x118 | 141x88x128 | 190x130x140 | 230x130x140 | 270x130x140 |
| Inside temp | Brine test method(NSS ACSS)35°C±1°C/Corrosion resistance test method (CASS)50°C±1°C |
||||
| Brine temp | 35°C±1°C 50°C±1°C | ||||
| Test chamber volume | 108L | 270L | 600L | 800L | 1000L |
| Brine chamber volume | 15L | 25L | 40L | 40L | 40L |
| Compressed air pressure | 1.00±0.01kgf/cm2 | ||||
| Spray volume | 1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average) | ||||
| Test room relative humidity | 85%RH or more | ||||
| PH | 6.5~7.2 3.0~3.2 | ||||
| Spray method | Programmable spray (including the continuous spray interrupted spray) |
||||
| Power | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A | AC220V1Φ20A | AC220V1Φ30A |
