Product Details:
|
| Warranty: | 1 Year | Model Number: | GSA-954M |
|---|---|---|---|
| Humidity Range: | Humidity Range | Power: | 220V/380V Or Other Customized |
| Heating Rate: | 2.0-4.0c/Min Or Customized | Inner Materials: | SUS#304 Stainless Steel |
| Cooling Rate: | 0.7-1.0c/Min | Temperature Range: | -40ºC~+150ºC |
| High Light: | Programmable Temperature And Humidity Test Machine,1.0c/Min Temperature And Humidity Climate Chamber,Humidity Climate Chamber 380V |
||

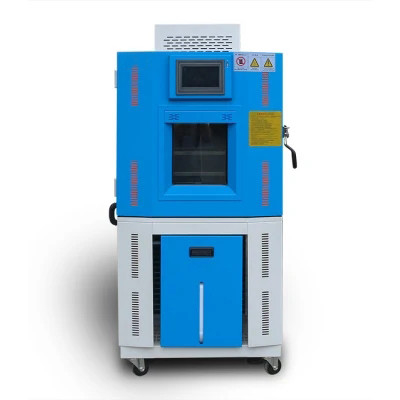

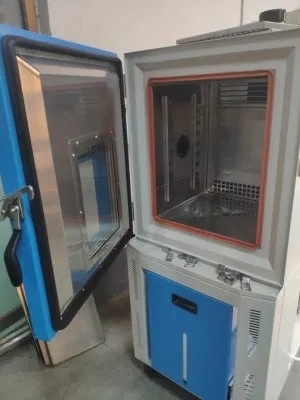

Programmable Environmental Temperature And Humidity Test Machine/ Climate Chamber
product presentation:
Programmable Environmental Temperature and Humidity Test Machine/ Climate Chamber are available as standard products in a variety of sizes to suit your needs. Our environmental test chambers are often used for steady-state stability testing, basic temperature cycling and accelerated stress testing. In keeping with the needs of today's lab, we designed these temperature and humidity test chambers to have a compact exterior that maximizes the interior workspace.
Lowest temperature: -20 or -70°C (-4 or -100°F)
Highest temperature: 150°C (302°F)
Humidity range: 20 to 98% RH
Chamber size: 3.53 cubic feet
Touch-screen Watlow F4T programmer with Ethernet access
| Model | GSA-954M | GSA-955M | GSA-956M | GSA-957M |
| Inner size: WHD(cm) | 40*50*40 | 50*60*50 | 60*75*50 | 100*100*100 |
| External size: WHD(cm) | 105*165*98 | 105*175*108 | 115*190*108 | 155*215*155 |
| Temperature range | (Low:A:+25ºC; B:0ºC;C:-20ºC; D:-40ºC;E:-60ºC;F:-70ºC) (High:+100ºC/+150ºC) | |||
| Humidity range | 20%~98% R.H.(10%~98%R.H);(5%~98%R.His special optional condition) | |||
| Temp analytic accuracy/uniformity | 0.1ºC/±2.0ºC | |||
| Temperature Fluctuation | ±0.5ºC | |||
| Humidity analytic accuracy/ Humidity control accuracy | ±0.1%;±2.5% | |||
| Heat; cooling time | Heat up about 4.0°C/min ; Cooling about 1.0°C/min | |||
| Inner and outer materials | SUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outer | |||
| Insulation materials | Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials | |||
| Cooling system | Air cooling/single segment compressor(-40°C) ,air and water double segment compressor (-50°C~-70°C) | |||
| Protection devices | Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch, super humidity over-temperature protection switch, fuse, failure warning system | |||
| Parts | Watching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4,Foot Cupx4 | |||
| Compressor | Original France"Tecumseh"brand | |||
| Controller | TEMI South Korea | |||
| Power | AC220V 50/60Hz & 1, AC380V 50/60Hz 3 | |||
| weight (kg) | 150 | 220 | 270 | 580 |
FQA:
1. who are we?
We are based in Guangdong, China, start from 2021,sell to Southeast Asia(90.00%),North America(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Environmental Test Chamber,Rapid Temperature Change Chamber,environmental temperature test chamber,Climatic Testing Chamber,Industrial Test Chamber
4. what services can we provide?
Accepted Delivery Terms: FOB,CIF;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: L/C,Cash;
Language Spoken:English,Chinese,Russian
Contact Person: Ms. Kris Zhang
Tel: 0086-0769-85914911
