Product Details:
|
| Warranty: | 2 Years | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Model Number: | GS-664W | Accurate Grade: | 1 % /0.5 % |
| Effective Tensile Stroke: | 500mm Or Customize | Accuracy Of Displacement: | Tolerance: ±0.5%/ Tolerance: ±0.2% |
| Max Load: | 50N,100N,200N, 500N, 1KN,2KN(optional ) | Tester Resolution:: | Max Load 1/200000 |
| High Light: | 500mm Universal Tensile Testing Machine,500N Universal Tensile Testing Machine,Non Woven Fabric Tensile Testing Machines |
||

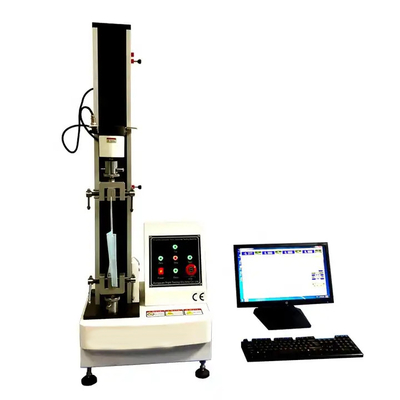

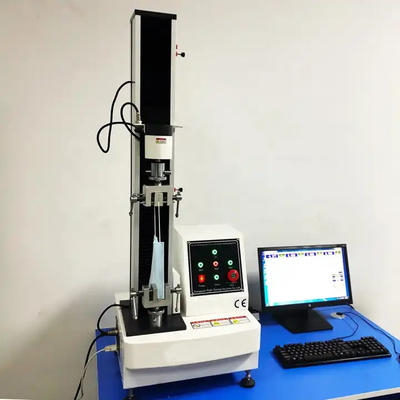

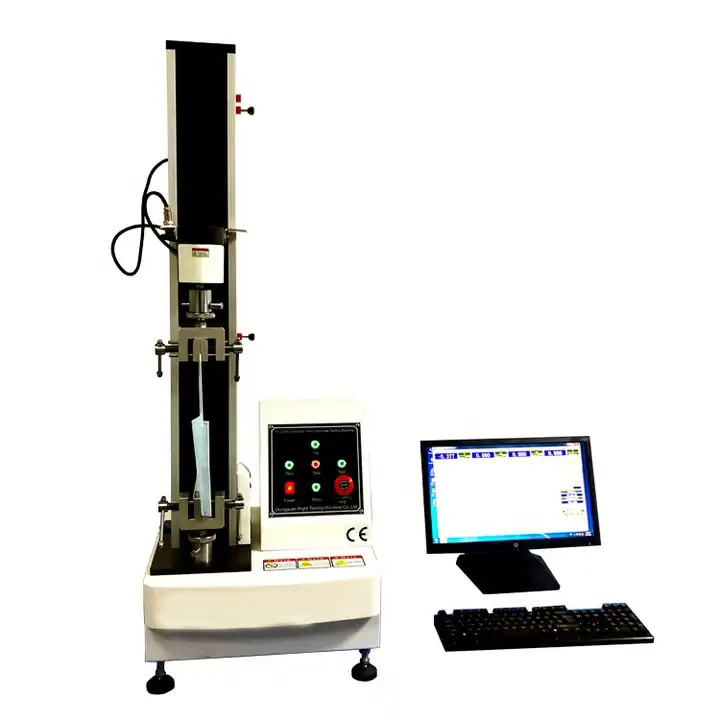

Universal Tensile Testing Machine For Non-Woven Fabric Tensile Testing
product presentation:
The basic function of non-woven tensile testing machine: Tensile property, tensile strength and deformation rate, breaking force, tearing resistance, heat sealing strength, drum stripping test, 90 degrees stripping, rope breaking force, pants type tearing force, 180 degrees stripping, compression test, bending test, shear test, bursting test and so on to complete different tests, according to the different needs of customers, different fixtures can be installed, wide sample clamping device, Japanese jig, British jig and so on meet the standards of many countries.
specification:
|
ITEM
|
DESCRIPTION
|
|
Brand Name
|
RIGHT
|
|
Model Number
|
GS-664W
|
|
Maximum load
|
50N,100N,200N, 500N, 1KN,2KN(optional )
|
|
Accurate grade
|
1grade / 0.5 grade
|
|
Effective measuring range
|
Force from 0.2% to 100% / from 0.4% to 100%
|
|
Measuring accuracy
|
the value ±1% / the value ±0.5%
|
|
Tester resolution
|
Max load: 1/200000, constant the resolution
|
|
Load sensor
|
Basic configuration sensor max load: one
|
|
Effective tensile stoke
|
500mm (can be increased the tensile space according to customers requirement )
|
|
Testing speed
|
From 0.001 to 500mm/min
|
|
Accuracy of displacement measurement
|
Tolerance:±0.5% / tolerance: ±0.2%
|
|
Safety
|
Electronic-limit protection
|
|
Return Back
|
Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation
|
|
Overload protection
|
Overload 10%, automatic protection
|
|
Fixture
|
A set of tensile clamp
|
|
Motor
|
Delta AC servo motor and drive
|
|
Unit
|
KG,N,LB, TON can be exchanged.
|
|
Machine size
|
45x58x135cm (L*W*H)
|
|
Weight
|
75kg
|
