Product Details:
|
| Warranty: | 14 Months | Place Of Origin: | Donggaun,china |
|---|---|---|---|
| Model Number: | GSA1004 | Product Name: | UTM Tensile Strength Testing Machine |
| Display: | LCD ( Linkable To PC ) | Test Speed: | 1~500 Mm/min Selectable |
| Test Stroke: | 600mm (without Grips) | Force Precision: | ±0.5% |
| High Light: | UTM Tensile Strength Testing Machine,Tensile Strength Testing Machine 500mm/min,Tensile Testing Equipment 600mm |
||

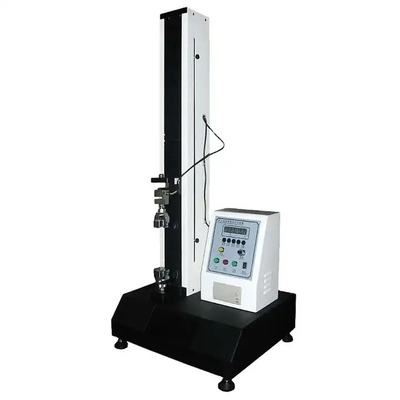

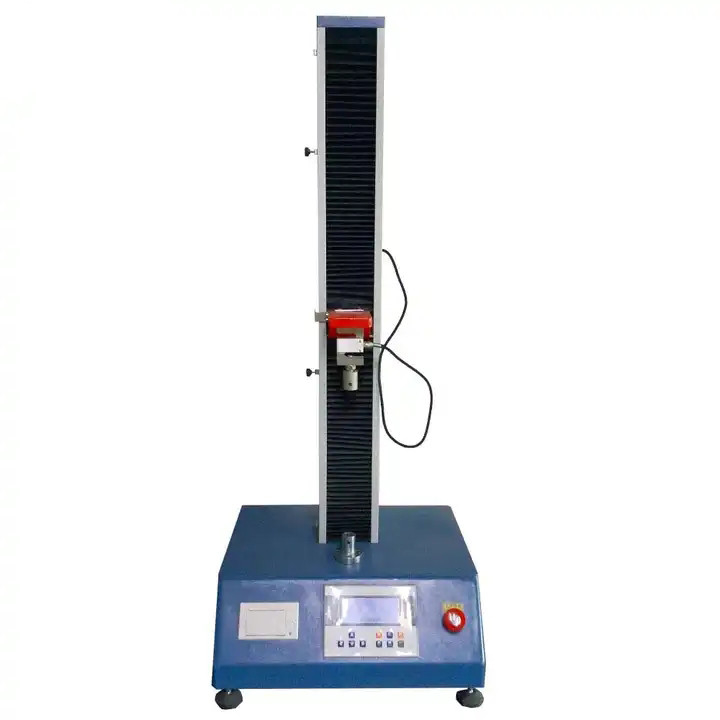

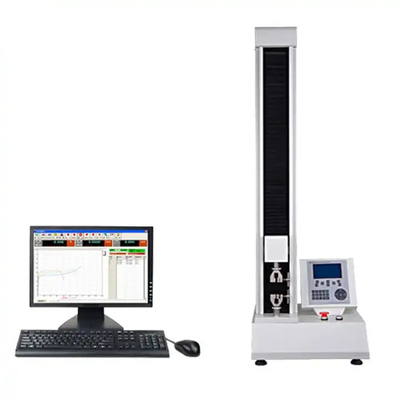

Tensile Testing Equipment, UTM Tensile Strength Testing Machine
Description
This machine can test various materials (both finished and semi-finished products ) of tensile strength ,compressive strength and elongation ,can do stripping ,tear strength ,flexural ,compression test and etc. It can connect up to the computer and display or printout the test times , test value , max. value , etc . Also it can make various report forms according to the requirements .
The testing machine is widely used in all kinds of hardware, metal, rubber and plastics, footwear, leather, clothing, textiles, insulators, wires, cables, terminals and other types of materials, testing, tensile, tear, peel,compression, bending, shear, three-point bending ... and other physical test performance.
Technical parameter
|
Capacity
|
5,10,20,50,100,200,500,1000,2000,5000KG optional
|
|
Stroke
|
800mm(not including fixture)
|
|
Test speed
|
0.5~1000mm/min(control by keyboard inputing)
|
|
Test range
|
400mm MAX
|
|
Dimension
|
50*50*107CM
|
|
Weight
|
75kg
|
|
Accuracy
|
±0.5%or better
|
|
Operation method
|
Computer control
|
|
Resolution
|
1/250,000
|
|
Motor
|
Panasonic servo motor
|
|
Accessories
|
customized clamps by appointed, force sensors,printer, and operation manual
|
|
Power
|
220V/50HZ or 110V/60HZ
|
FQA:
Q1: What's your guarantee?
A: The product warranty is 12 months, but lifetime service. Non-consumable parts will be provided free of charge in the event of performance
failure due to non-human damage within 12 months.
Q2: How to provide video?
A:Yes. If needed, our engineers will record a special video for you.
Q3:Is your company a trading company or a factory?
A: Yes, we are manufacturing plant and trade (integration). 10 years focused on the field of test instruments. 5 years of export experience, warmly welcome to visit the factory.
Q4: After the order is placed, when will it be shipped?
A: Usually about 15-30 days. If we have stock, we can arrange shipment within 15 days. Please note that our production lead time depends on the specific project and the number of projects.
Q5:What about after-sales service and product quality?
A:The warranty is 12 months. After warranty, professional after-sales service team will provide perfect technical support. Help customers to solve the problems encountered in the process of use, professional and timely handling problems and complaints. Each instrument must be inspected and tested for 100% quality at the time of shipment and delivery. Product use training, each of our products provide video training to show you how to install and operate. Engineers will go abroad for training and maintenance.
Q6:How about the packaging of the equipment?
A: Before the machine is put into the standard export wooden box, the bubble film is covered first, which not only has good shock absorption and impact resistance, but also has the advantages of non-toxic, odorless, moisture-proof corrosion and good transparency.
