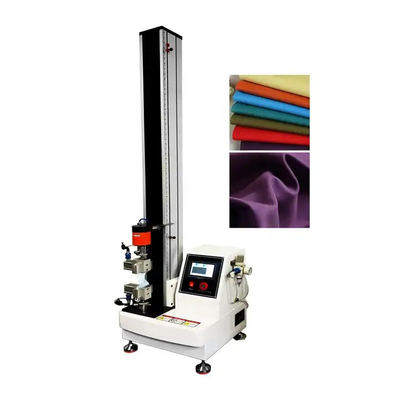

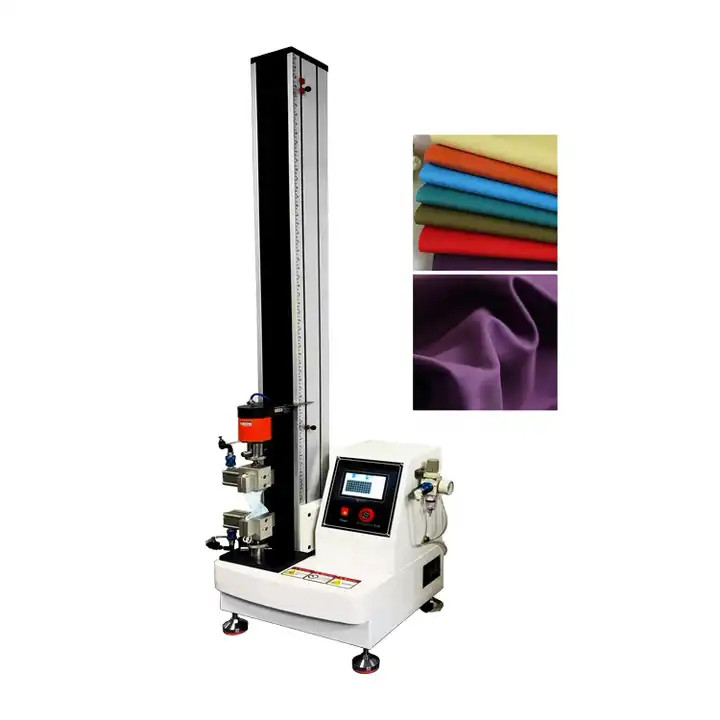

2KN Fabric Tensile Strength Testing Machine Universal Device

2KN Fabric Tensile Strength Testing Machine Universal Tensile Testing Device



Fabric tensile strength tester is a commonly used test instrument for testing the tensile properties of fabrics. It can measure the degree of deformation and fracture strength of the fabric under different tensile forces, so that the quality and performance of the fabric can be assessed. The testing machine usually includes a universal tensile test device that can be used to test different types of fabrics.

When the fabric tensile strength test machine is tested, the fabric sample needs to be clamped between two fixtures and a certain tensile force is applied. Tensile forces can be provided by electrical or hydraulic systems. During the test, tensile forces and deformation of the sample can be monitored in real time by measuring devices such as electronic sensors or mechanical force meters. When the sample breaks, the test machine automatically stops, and the fracture strength and tensile deformation data are recorded.

Fabric tensile strength testing machine is widely used in textile, printing and dyeing, clothing and other industries, as well as scientific research institutions, universities and other fields.


Product name	Desktop Digital Tensile Testing Machine
Maximum load	50N,100N,200N, 500N, 1KN,2KN(optional )
Accurate grade	1grade / 0.5 grade
Effective measuring range	Force from 0.2% to 100% / from 0.4% to 100%
Measuring accuracy	the value ±1% / the value ±0.5%
Tester resolution	Max load: 1/200000, constant the resolution
Load sensor	Basic configuration sensor max load: one
Effective tensile stoke	500mm (can be increased the tensile space according to customers requirement )
Testing speed	From 0.001 to 500mm/min
Accuracy of displacement measurement	Tolerance:±0.5% / tolerance: ±0.2%
Safety	Electronic-limit protection
Return Back	Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation
Overload protection	Overload 10%, automatic protection

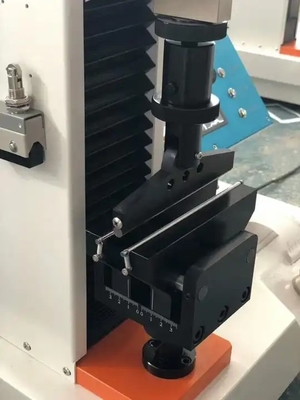

Fixture	A set of tensile clamp
Motor	Delta AC servo motor and drive
Unit	KG,N,LB, TON can be exchanged.
Machine size	45x58x135cm (L*W*H)
Weight	75kg
Power supply	220V , 50HZ or according to the requirement
Power	0.4KW ( depending on different demand of force,using different motor)





 FQA:

Q1: What's your guarantee?

A: The product warranty is 12 months, but lifetime service. Non-consumable parts will be provided free of charge in the event of performance

failure due to non-human damage within 12 months.

Q2: How to provide video?

A:Yes. If needed, our engineers will record a special video for you.

Q3:Is your company a trading company or a factory?

A: Yes, we are manufacturing plant and trade (integration). 10 years focused on the field of test instruments. 5 years of export experience, warmly welcome to visit the factory.

Q4: After the order is placed, when will it be shipped?

A: Usually about 15-30 days. If we have stock, we can arrange shipment within 15 days. Please note that our production lead time depends on the specific project and the number of projects.

Q5:What about after-sales service and product quality?

A:The warranty is 12 months. After warranty, professional after-sales service team will provide perfect technical support. Help customers to solve the problems encountered in the process of use, professional and timely handling problems and complaints. Each instrument must be inspected and tested for 100% quality at the time of shipment and delivery. Product use training, each of our products provide video training to show you how to install and operate. Engineers will go abroad for training and maintenance.

Q6:How about the packaging of the equipment?

A: Before the machine is put into the standard export wooden box, the bubble film is covered first, which not only has good shock absorption and impact resistance, but also has the advantages of non-toxic, odorless, moisture-proof corrosion and good transparency.
