Product Details:
|
| Warranty: | 12 Months | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Capacity: | 2,5,10,20,50,100,200,500,1000kg | Load Accuracy: | ±0.5% |
| Test Width: | 40 Cm (can Be Customized) | Material: | Stainless Steel Frame |
| Load Resolution: | 1/250,000 | Test Speed: | 0.1-500mm/min |

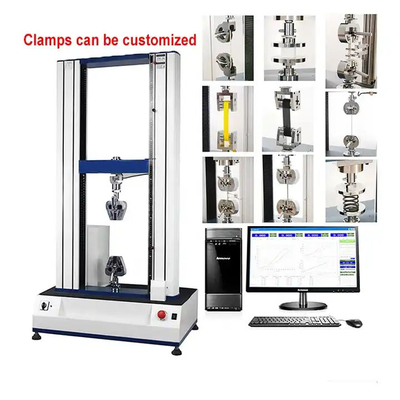

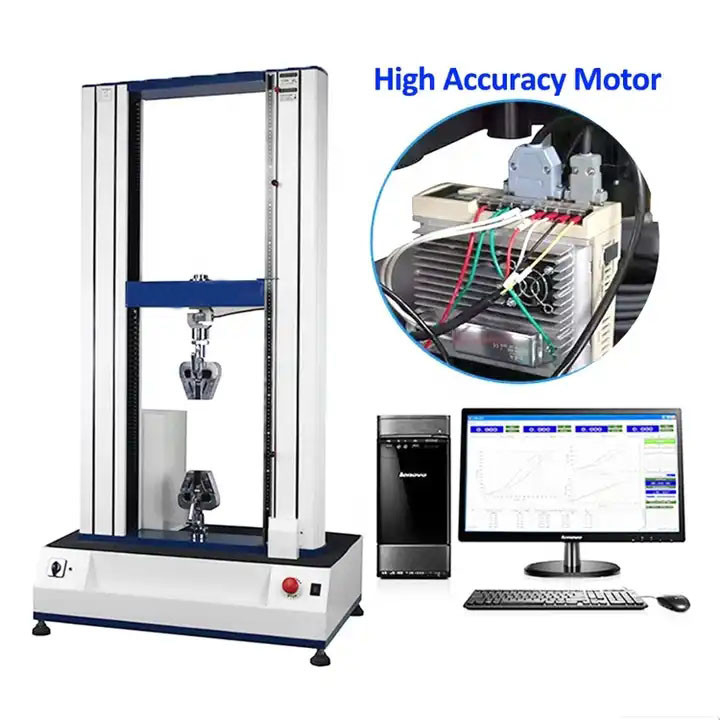

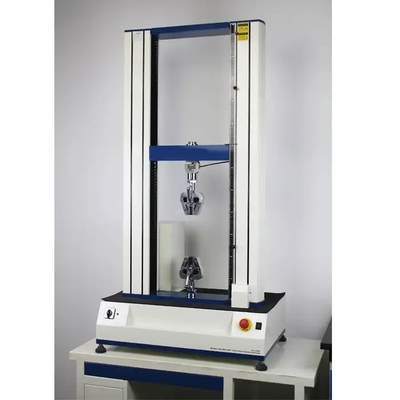

600KN Universal Tensile Strength Testing Machine, Computer Controlled
product presentation:
Universal tensile strength testing machine can be used for rubber, plastic, foaming materials, plastic, film, flexible packaging, pipe, textile, fiber, nanomaterials, polymer materials, polymer materials, composite materials, synthetic materials, packaging belt, paper, wire and cable, optical fiber and cable, safety belt, safety belt, leather belt, footwear, rubber belt, polymer, spring steel, stainless steel, casting, copper pipe, nonferrous gold Tensile, compression, bending, tearing, 90° peeling, 180° peeling, shear, adhesive force, drawing force, elongation and other tests are carried out on parts, automobile parts, alloy materials and other non-metallic materials and metal materials. Universal tensile strength testing machine can be used for rubber, plastic, foaming materials, plastic, film, flexible packaging, pipe, textile, fiber, nanomaterials, polymer materials, polymer materials, composite materials, synthetic materials, packaging belt, paper, wire and cable, optical fiber and cable, safety belt, safety belt, leather belt, footwear, rubber belt, polymer, spring steel, stainless steel, casting, copper pipe, nonferrous gold Tensile, compression, bending, tearing, 90° peeling, 180° peeling, shear, adhesive force, drawing force, elongation and other tests are carried out on parts, automobile parts, alloy materials and other non-metallic materials and metal materials.
Features:
1. Automatic zero clearing: After the computer receives the instruction to start the test, the system automatically clears zero. 2, automatic return: after the sample fracture, automatic return to the initial position. 3, automatic shift: according to the size of the load, can switch different gears, to ensure the measurement accuracy. 4, change the speed: This machine can be according to different samples, arbitrarily change the test speed. 5. Indicating value verification: the system can realize the accurate calibration of force value. 6. Control method: Test force, test speed, displacement, strain and other test methods can be selected according to the test needs.
|
Model
|
GSA407E
|
GSA408E
|
||
|
Capacity
|
1,2,5,10,20,50,100,200,500,1000,2000 optional(or customize)
|
|||
|
Accuracy level
|
0.5%
|
|||
|
Effective pull space
|
1200mm(contain grips)
|
|||
|
Effective test width
|
400mm
|
320mm
|
||
|
Speed accuracy
|
Less than ±0.5%
|
|||
|
Displacement accuracy
|
Less than ±0.5%
|
|||
|
Deformation test accuracy
|
Less than ±0.5%
|
|||
|
Sensor
|
High Accuracy Sensor
|
|||
|
Test force resolution
|
1/250,000
|
1/150,000
|
||
|
Test Speed
|
0.1~500mm/min
|
50~500mm/min
|
||
|
Motor system
|
Panasonic servo motor +
Panasonic sevor drive
|
AC motor + AC drive
|
||
|
Lifting control
|
Computer control or manual button control
|
|||
|
Optional parts
|
Lenovo computer
|
|||
|
Dimension
|
80×50×150cm
|
|||
|
Operation method
|
Computer Control
|
|||
|
Operation system
|
TM2102(A controlling system designed by ourselves)
|
|||
