Product Details:
|
| Sample Test Angle: | 30° 15° | Power Supply: | AC220V 1Phase 15A |
|---|---|---|---|
| Air Pressure: | 86~ 106Kpa | Controller: | Programmable LCD Touch Screen Casters |
| Humidity Range: | 20%~98%RH | Testing Room Capacity: | 60,120,270,480L / Customized |
| Authentication Certificate: | CE | Brand: | GASK |
| High Light: | Salt Spray Test Chamber,Salt Spray Corrosion Tester |
||

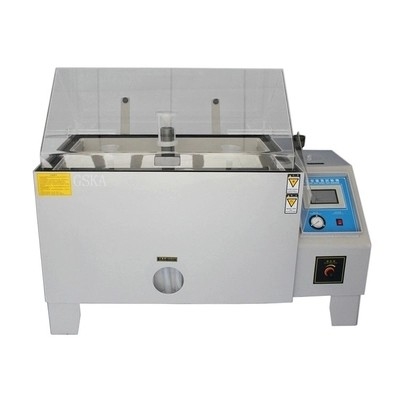

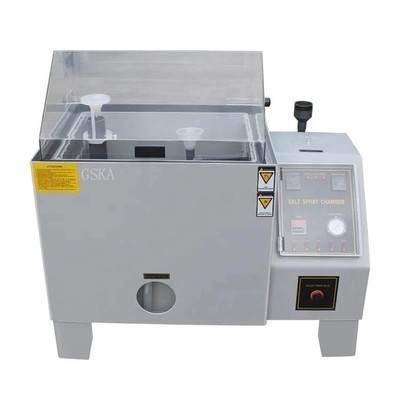

Industrial Salt Water Spray Test 86-106Kpa Air Pressure Aging Chamber
Corresponding standard:
1. GB/T 2423.17-1993 salt spray test
2. GB/T 2423.18-2000 salt spray test
3. GB/T 10125-1997 salt spray test
4. ASTM.B117-97 salt spray test
5. JIS H8502 salt spray test
6. IEC68-2-11 salt spray test
7. IEC68-2-52 1996 salt spray test
8. GB.10587-89 salt spray test
9. CNS.4158 salt spray test
10. CNS.4159 CASS Accelerated acetic acid copper salt spray test
11. GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Introduction:
The salt spray test machine is an artificial climate environment "three prevention" (humid heat, salt spray, mold) test equipment, is an important test to study the environmental adaptability and reliability of various industries such as machinery, national defense, light industry, electronics, instrumentation, etc. equipment.
The salt spray test machine can be used for neutral salt spray test and also for acetate salt spray test. The salt spray test is to test the corrosion resistance of the surface of various materials after anti-corrosion treatment such as coating, electroplating, anodizing, anti-rust oil, etc.
Features:
1. Adopt automatically add water system, can watered by itself while lack of water.
2. Precise glass spray nozzle, good uniformity, mist dropping naturally, no Na-Cl crystallized salt.
3. Double over-heat protection devise and alarm when water short storage to ensure use safety.
4. Digitally temperature controller, PID controlled.
5. Tapered Spray tower, even mist dropping.
6.Applicable fields including automobile parts, aviation equipment, photographic equipment, building materials, electricity,
electrical and electronic systems.
Specification parameter list:
| Inner box size: (L×W×H) cm |
60×45×40 | 90×60×50 | 120×100×50 | 160×100×50 | 200*100*50 |
| Outside box size: (L×W×H)cm |
108*108*65 | 135×112×75 | 190×128×125 | 230×128×125 | 270*128*125 |
| Temperature range | 35℃~55℃; | ||||
| Test chamber temperature | NSS ACSS 35℃±1℃(CASS 50℃±1℃) | ||||
| Saturated air barrel temperature | NSS ACSS 47℃±1℃(CASS 63℃±1℃) | ||||
| Temperature fluctuations | ≤±0.5°C | ||||
| Temperature uniformity | ≤±2.0°C | ||||
| Lab volume | 110L | 270L | 600L | 800L | 1000L |
| Brine tank capacity | 15L | 25L | 40L | 65L | 80L |
| Multiple safety protection devices | Water shortage; over temperature ;phase protection | ||||
| Standard accessories | Test salt, measure bucket, tool etc 1 set | ||||
| weight (kg) | 60 | 90 | 180 | 280 | 450 |
| Power | AC220V 1Φ20A | AC220V 1Φ20A | AC220V 1Φ30A | AC380V 3Φ15A | AC380V 3Φ15A |
Advantage:
1 Programmable control, touch screen operation
2. It can spray regularly, intermittently and evenly
3.24 hours online
4.Sample chamber of each model
5. Best price, fast delivery
6.OEM,ODM
7.Oversea offices
8.Own import and export business license
9.ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
