Product Details:
|
| Warranty: | 1 Year | Place Of Origin: | Donggaun,china |
|---|---|---|---|
| Model Number: | GSA-364U | Power: | Hydraulic |
| Displacement Resolution: | 0.01mm | Beam Adjustment Speed: | 120mm/min |
| Test Force: | 2%-100% | Piston Maximum Moving Speed: | 0.2-70mm/min Stepless Speed Regulation |
| High Light: | ASTM Standard Material Testing Machine,0.01mm Displacement Material Testing Machine,70mm/min Tensile Testing Machines |
||
ASTM Standard Material Deformation Testing Machine For Reinforcement Materials
product presentation:

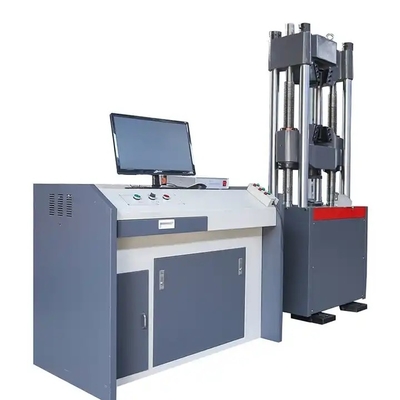

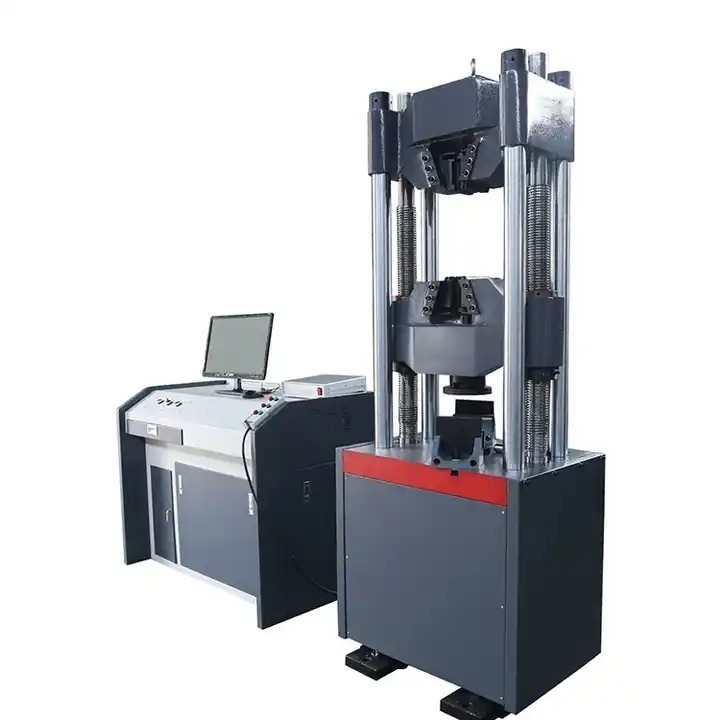

material deformation testing machine is mainly used for tensile,compression, bending and other mechanical properties test of metal materials. After adding simple accessories, it can test cement,concrete, brick, tile, rubber and its products.This machine is composed of a four-column double-screw oil cylinder under-mounted high-strength main engine and a piano-type oil source control cabinet. The oil pump adopts a low-noise high-performance gear pump imported from Italian Marzucci. The tensile space is located above the main engine, and the compression and bending tests are located under the main engine, that is, between the middle beam and the workbench. The adjustment of the test space is realized by moving the middle beam, and the lifting and lowering of the middle beam is driven by a chain. Computer automatic closed-loop control of high-performance electro-hydraulic proportional servo valve to complete the tensile, compression, bending and other tests of various materials. After the test is completed, the experimental results such as FM, REH, REL, RPO.2, RP1, RM and elastic modulus E of the material are automatically taken.
Specification
|
Product number
|
GSA-364U |
GSA-365U
|
GSA-366U
|
GSA-367U
|
||
|
Host structure
|
Four-column double-screw cylinder under-mounted high-strength main engine structure
|
|||||
|
Maximum test force
|
600100 kN
|
1000 kN
|
1500kN
|
2000 kN
|
||
|
Testing machine level
|
Level 1/Level 0.5
|
|||||
|
Test force measurement range
|
2%-100%FS
|
|||||
|
Relative error of test force indication
|
≦±1% of indicated value
|
|||||
|
Force resolution
|
1/300000
|
|||||
|
Deformation measuring device
|
Electronic Extensometer
|
|||||
|
Displacement measuring device
|
Photoelectric encoder
|
|||||
|
Displacement resolution
|
0.01mm
|
|||||
|
Piston maximum moving speed
|
0.2-70 (mm/min) stepless speed regulation
|
|||||
|
Beam adjustment speed
|
120(mm/min)
|
|||||
|
Piston stroke
|
250mm
|
|||||
|
way to control
|
Three closed-loop control and programming control
|
|||||
|
Column spacing
|
550mm
|
650mm
|
650
|
700mm
|
||
|

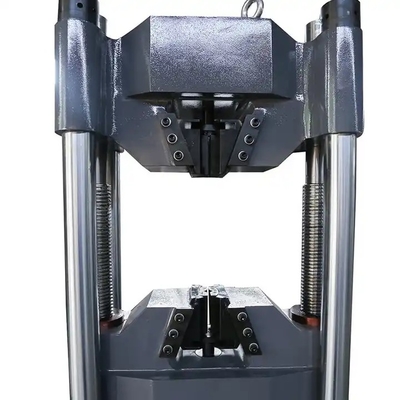

Clamping method
|
Hydraulic automatic clamping
|
|||||
|
Round Specimen Holder Diameter
|
φ6-φ40mm
|
Φ13-φ60mm
|
Φ26-φ70mm
|
Φ26-φ80mm
|
||
|
Upper and lower platen size
|
204*204mm
|
|||||
FQA:
Q1: What's your guarantee?
A: The product warranty is 12 months, but lifetime service. Non-consumable parts will be provided free of charge in the event of performance
failure due to non-human damage within 12 months.
Q2: How to provide video?
A:Yes. If needed, our engineers will record a special video for you.
Q3:Is your company a trading company or a factory?
A: Yes, we are manufacturing plant and trade (integration). 10 years focused on the field of test instruments. 5 years of export experience, warmly
welcome to visit the factory.
Q4: After the order is placed, when will it be shipped?
A: Usually about 15-30 days. If we have stock, we can arrange shipment within 15 days. Please note that our production lead time depends on the
specific project and the number of projects.
Q5:What about after-sales service and product quality?
A:The warranty is 12 months. After warranty, professional after-sales service team will provide perfect technical support. Help customers to solve
the problems encountered in the process of use, professional and timely handling problems and complaints. Each instrument must be inspected
and tested for 100% quality at the time of shipment and delivery. Product use training, each of our products provide video training to show you
how to install and operate. Engineers will go abroad for training and maintenance.
Q6:How about the packaging of the equipment?
A: Before the machine is put into the standard export wooden box, the bubble film is covered first, which not only has good shock absorption and
impact resistance, but also has the advantages of non-toxic, odorless, moisture-proof corrosion and good transparency.
