Product Details:
|
| Warranty: | 14 Months | Place Of Origin: | Donggaun,china |
|---|---|---|---|
| Model Number: | GSA1005 | Measuring Range: | (1~30)N/(6~300)N/(10~5000)N |
| Certification: | CE SGS ROHS UL | Customized Support: | OEM |
| Power: | Electronic | Accuracy: | ≤±1% |
| High Light: | Vertical Universal Tensile Testing Machine,Tensile Strength Tester 5kN,90mm/min Tensile Testing Machine |
||

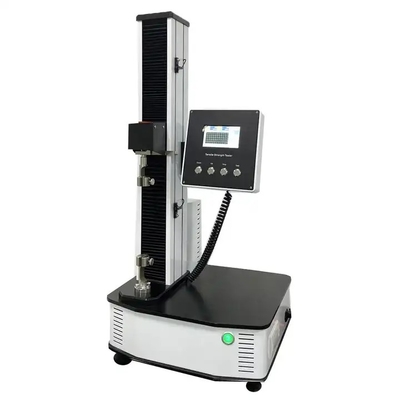

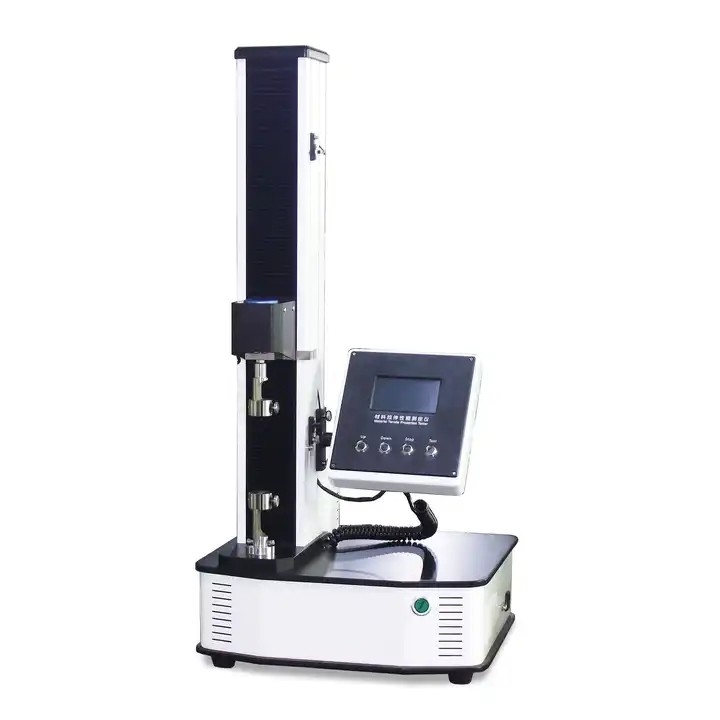

5kN Vertical Universal Tensile Testing Machine Tensile Strength Tester
Descriptions:
GSA1005 Electronic Universal tensile strength tester can be used to detect the tensile strength, elongation, energy absorption index, in accordance with the national standard GB / T 12914, ISO 1924. 2: the tensile strength of paper and cardboard (constant speed tensile method).
Features:
1. Using 32-bit high-precision AD converter (resolution of up to 1 / 10,000,000) and high-precision load cell to ensure that the instrument force data collection of the rapidity and accuracy;
2. Can be connected to computer software, with real-time display compression curve function and data analysis function;
3. The use of imported electrical components, high-speed data processing, the entire English menu, before the test can be pre-input sample parameters and test parameters, after the end of the test automatically calculate and output the maximum force, elongation, maximum tensile strength, Can save multiple sets of test data and results.
4. Stepless speed regulation (5-500mm / min arbitrary setting) screen real-time display test force, peak, test speed, running status and so on.
5. Using a single space test structure, the sensor is bi-directional pull-pressure force sensing, tensile or compression tests are completed below, pre-selected test methods;
6. With peak hold, sample break down, return to the original test and other functions, with upper and lower mechanical limit, electrical overload and other protection features.
Technical parameters:
| Model | GSA1005 |
| Test capacity | (1~30)N/(6~300)N/(10~500)N/(10~5000)N |
| Accuracy | ±1% |
| Force resolution | 0.01N |
| Deformation resolution | ≤ 0.1mm |
| Test speed | (1~500)mm/min |
| Recovery speed | 90mm/min |
| Human machine interface | 5.7inch Color Touch screen, with a graph display |
| Communication output | RS232 (according to customer's requirements) |
| Working environment | temperature (20 ± 10) ℃, humidity <85% |
| Overall dimensions | 600 * 400 * 450mm |
| Weight | About 50kg |
FQA:
Q1: What's your guarantee?
A: The product warranty is 12 months, but lifetime service. Non-consumable parts will be provided free of charge in the event of performance
failure due to non-human damage within 12 months.
Q2: How to provide video?
A:Yes. If needed, our engineers will record a special video for you.
Q3:Is your company a trading company or a factory?
A: Yes, we are manufacturing plant and trade (integration). 10 years focused on the field of test instruments. 5 years of export experience, warmly welcome to visit the factory.
Q4: After the order is placed, when will it be shipped?
A: Usually about 15-30 days. If we have stock, we can arrange shipment within 15 days. Please note that our production lead time depends on the specific project and the number of projects.
Q5:What about after-sales service and product quality?
A:The warranty is 12 months. After warranty, professional after-sales service team will provide perfect technical support. Help customers to solve the problems encountered in the process of use, professional and timely handling problems and complaints. Each instrument must be inspected and tested for 100% quality at the time of shipment and delivery. Product use training, each of our products provide video training to show you how to install and operate. Engineers will go abroad for training and maintenance.
Q6:How about the packaging of the equipment?
A: Before the machine is put into the standard export wooden box, the bubble film is covered first, which not only has good shock absorption and impact resistance, but also has the advantages of non-toxic, odorless, moisture-proof corrosion and good transparency.
