Product Details:
|
| Warranty: | 1 Year | Lamp Quantity: | 8 Lamp Imported From Canada |
|---|---|---|---|
| Humidity Range: | RH75%~95% | Weight: | Appro 150KG |
| Temp Range: | RT+10°C ~70°C | Specimen Standard Size: | Specimen Standard Size |
| Centre Distance Between The Lamp: | 70mm | Use: | UV Aging Testing Machine |
| Highlight: | CE Uv Weathering Test Chamber,70mm Uv Weathering Test Chamber |
||

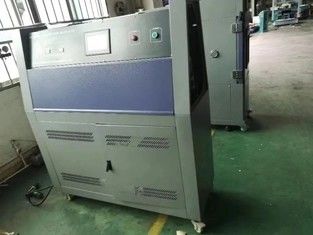

High Precision Intelligent Uv Weathering Test Chamber
product description:
UV Accelerated Weathering Tester is the world's most widely used ,can be used in more labs throughout the world than any other accelerated weathering tester. It's used widely in the industry, such as printing ink, paint, pastics, print, packaging,motor van, metal, electron, medical... and so on.
Product Features:
Our UV aging test chamber series includes 4 different types of UV aging test boxes, It can meet the testing standards of coatings, ink, adhesives, plastic products and other industries.
1. Different test methods and procedures: Automatic control, real-time monitoring and display.
2. The sample frame temperature: Sample temperature BPT directly display and automatic control.
3. Condensation control: Condensation directly display and automatic control.
4. Circular manner: Light, condensation and spray directly display and automatic control.
5. Light irradiance: Testing process can be set light irradiance energy and time and monitoring.
6. Spray water: Adjustable and display, automatic control, test process can be set spraying time.
7. The calibration function: Automatic temperature calibration, convenient, fast.
8. Alarm function: Automatic alarm .
9. Water supply way: Automatic feed water.
10. PC connection method : RS232
Specifications:
| Model | GSA-647 |
| Control system | The man-machine interface, color LCD touch screen |
| Machine size | 500×1300×1460(D×W×H)mm |
| Temperature range | RT+10℃~+70℃ |
| Temp fluctuation | ±1℃ |
| Temp uniformity | ±3℃ |
| Humidity range | ≥95% R·H |
| Distance between lamps | 70mm |
| Distance between samples and lamps | 50±2 mm |
| Lamp life | 1600~1800h(Imported lamps) |
| Light source | UVA-340 or UVB-313 8 pcs(40W/each lamp) |
| Wavelength of UV light range | UV-B Wave (280~315nm) or UV-A Wave (320~400nm) |
| Power | AC 220V 50HZ 5KW |
| Size of standard specimen | 75×150×10mm WHD (customized available) |
| Net Weight | 150KG |
|
|
● SAE J2020 ● PREN 1062-4 ● ISO4892-3 ● ASTM G53 ● EN534 ● ISO11507 ● ASTM D4587 ● ISO 11507 ● ASTM D4329 ● ASTM D5208 ● ISO4892-3 ●ASTM D4587 |
FAQ:
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
A:Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while
considering of sea transportation, we can extend 2 months for our customers. If your machine doesn’t work, you can send E-mail to us and we will
try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or
provide on-site repair.
2. What’s the delivery term?
A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you
are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
A: Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put
your logo on the machine.
