Product Details:
|
| UV Temperature: | From 50 ℃ To 75 ℃ | Humidityrange: | More Than 90%R.H. |
|---|---|---|---|
| Humidity Range: | ≥75%RH | Power: | Electronic |
| Product Name: | UV Accelerated Aging Test Machine | Wave Length Of Test Light Source: | 280~400nm |
| Air Pressure: | 86~ 106Kpa | Material: | Stainless Steel |
| Highlight: | Asphalt Light Aging Test Chamber,Bitumen UV Lamp Aging Tester |
||

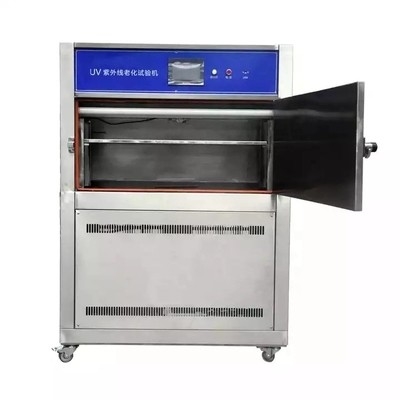

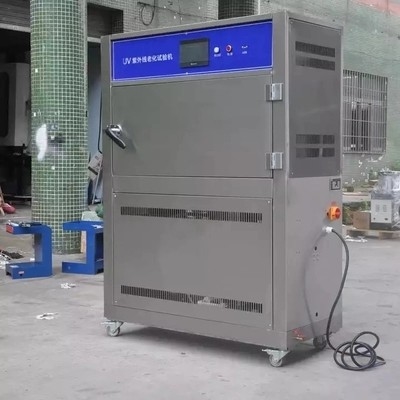

Asphalt Light Aging Test Chamber, Bitumen UV Lamp Aging Tester AC220V
Equipment summary:
Aging Discoloration UV Test Chamber can simulate the sun, rain and dew to damage the material, UV using UV lamp simulate the effect of sunlight, cold rain and dew. Being tested materials are placed in a certain environment which the light and moisture are alternating. The materials are tested for several days or weeks, you can know the damage of material at outside for several months or several years, Damage types include: bleaching, discoloration, loss of light, powder, crack, turbidity, bubble-based, embrittlement, strength decline and oxidation.
Main functions:
UV test machine, the UV lamp can simulate the effect of the sun, condensation and water spray system can simulate the effect of rain and dew. the temperature can be controlled at the process of testing. A typical test cycle is usually testing at UV radiation of high temperature and the 100% humidity at dark; Typically used in paint and coatings, automotive, plastic products, wood products, glue, etc.
Corresponding standard:
Accord with ASTMG53-77,ASTM D4355
Applicable industries:
Asphalt Light Aging Test Chamberis widely used in paint, resins, plastics, printing and packaging, aluminum, adhesives, auto, cosmetics, metals, electronics, electroplating, medicine, et
Specifications :
| Rubber Programmable Accelerated Weathering UV Aging Test Chamber Technical Parameters | ||
| Model | GSKA-UV-280 | |
| Internal Dimension W*H*D (cm) |
115*50*40 | |
| External Dimension W*H*D (cm) |
150*150*55 | |
| Applicable Standard | GB/T16422,GB/T5170.9 | |
| Temperature Range | R.T.+10degree C~+70degree C | |
| Temperature Fluctuation | ±0.5degree C | |
| Humidity Range | ≥95%R.H. | |
| Environmental Temperature for Use |
+5degree C~+35degree C | |
| Test Light Source | UVA,UVB UV light | |
| Wave Length of Test light Source (nm) |
280~400 | |
| Center Distance between Sample and Tube (mm) |
50±2 | |
| Center Distance Between Tubes (mm) |
75±2 | |
| Material of Internal Case | Stainless steel with sanding polish | |
| Material of External Case | Stainless steel with sanding polish or painting coated | |
| Heating and Humidifier | Electric-heat type steam generator ,heating and humidification | |
| Safety System | Operation Interface | Digital smarts touch key input (Programmable) |
| Running Mode | Program/constant running type | |
| Input | Black panel thermometer.PT-100 Sensor | |
| Standard Configuration | 1 pc Stainless steel shelves | |
| Safety Configuration | Protection of electric leakage, power outage when over-load, over-temperature protection, water short storage, ground lead protection | |
| Power | AC220V 1phase 3 lines, 50HZ | |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Package: Standard export wooden case, plywood case or according to customer's requirement.
If you need more info about this UV Weather Simulated Plastic Accelerated Aging Test Machine / Plastic Aging Chamber , please contact with us,thank you
