Product Details:
|
| Salt Spray Type: | Continuous/Periodic | Power Supply: | AC220V 1Phase 15A |
|---|---|---|---|
| Humidity Range: | 20%~98%RH | Brand: | GSKA |
| Keyword: | Salt Spray Test Chamber | Controller: | Programmable LCD Touch Screen Casters |
| Air Pressure: | 86~ 106Kpa | Testing Room Capacity: | 60,120,270,480L / Customized |
| Highlight: | 86Kpa Salt Spray Test Chamber,106Kpa Salt Spray Test Chamber |
||

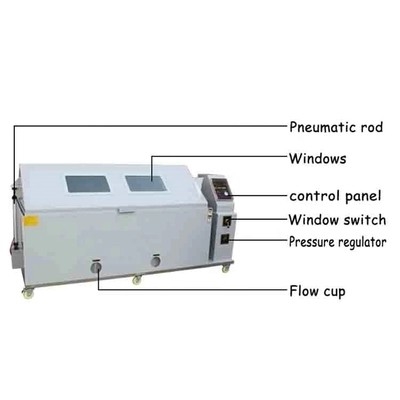

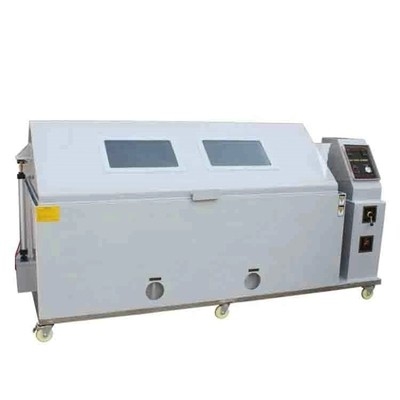

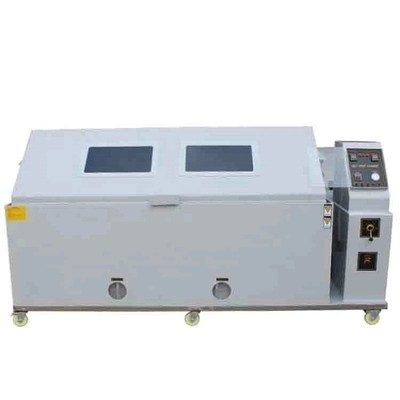

Corrosion Resistant Salt Spray Test Chamber 86Kpa-106Kpa Antirust
Salt spray test system has the following characteristics:
1. Controller: Controller imported from Korea "TEMI-880" 16-bit true color touch screen, the program group of 1,20 groups, the total number of cycles 1200 times.
2, the temperature sensor: anti-corrosion platinum resistance PT100Ω / MV
3, heating method: using titanium high-speed heating heater, multi-point layout, good stability and uniformity
4, spray system: tower spray system, advanced quartz nozzle, no crystallization for a long time, fog particles are evenly distributed
5, salt collection: in line with the national standard funnel and standard measuring cylinder, adjustable settlement controllable
6, bipolar decompression, to ensure that the spray pressure stability.
Features:
specification:
| Volume(L) | 108 | 270 | 480 | customi-zable | ||
| Internal Size W×H×W(mm) |
600×400×450 | 900×500×600 | 1200×500×800 | |||
| External Size W×H×W(mm) |
1150×1090×672 | 1450×1200×842 | 2080×1285×1240 | |||
| Performance Index | Temperature Range | LaboratoryTemperature Range :RT~50℃ Saturated air barrelTemperature Range :RT~63℃ |
||||
| Temperature Deviation | ±1.0℃ | |||||
| Temperature Uniformity | ≤2.0℃ | |||||
| Temperature Fluctuation | ±0.5℃ | |||||
| Heating Rate | Test Room RT→+50℃≤60 min Pressure Barrel RT→+63℃≤60 min |
|||||
| Salt fog deposition | 1~2ml/80 square meter (At least 16 hours were collected and averaged) | |||||
| Spray Pressure | 70~170Kpa | |||||
| Spraying Mode | Continuous spray | |||||
| Test time | 1~999(S,M,H)adjustable | |||||
| PH | 6.5~7.2 3.0~3.2 | |||||
| Main Part | Control System | temperature controller | ||||
| PT100 thermocouple (armor), PID control | ||||||
| Spraying System |
|
|||||
| operate manual spray or set automatic spray according to program | ||||||
| Structural Features | Material Enclosure | Imported PVC polyethylene board is adopted | ||||
| Medicament refill cylinder | hidden type supplementary water gauge | |||||
| Pressurized air drum | SUS304# stainless steel high-pressure barrel | |||||
| Test Rack |
|
|||||
| Cover Material | imported European acrylic board | |||||
| Spray Tower | air atomizing nozzle, height can be adjusted | |||||
| Spray volume collector | Cone funnel with diameter of 100mm | |||||
| Heating System | Titanium alloy heat pipe, steam heating, P.I.D. control heating | |||||
| Brine Tank | Made of PVC board | |||||
| Saturated air barrel | SUS304 Stainless | |||||
| Drain line | acid and alkali resistant PVC piping | |||||
| Heater |
SUS316# stainless steel armoured heating tube (saturation barrel) |
|||||
| Standard Fittings |
|
|||||
| Safty Device | Leakage, short circuit, motor overheating, overload, over current protection | |||||
| Supply Voltage | AC220V 50Hz | |||||
| Environment Requirement | Temperature 5.0~+30.0℃, Humidity≤85%RH, Air Pressure 86Kpa~106Kpa | |||||
Advantage:
1 Programmable control, touch screen operation
2. It can spray regularly, intermittently and evenly
3.24 hours online
4.Sample chamber of each model
5. Best price, fast delivery
6.OEM,ODM
7.Oversea offices
8.Own import and export business license
9.ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
