Product Details:
|
| Function:: | Protection/ Insulation | Application: | Wrapping Wire Harness |
|---|---|---|---|
| Use:: | MASKING | Material:: | PVC |
| Adhesive Type: | Pressure Sensitive | Packing:: | Single Roll-naked Packing, And One Release Paper Betwe |
| Usage:: | Custom Printed Waterproof Paper Tape | Design Printing:: | No Printing |
| Highlight: | Adhesive Packaging Tape,Custom Packing Tape |
||

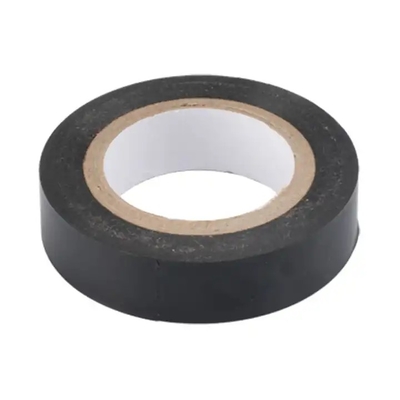

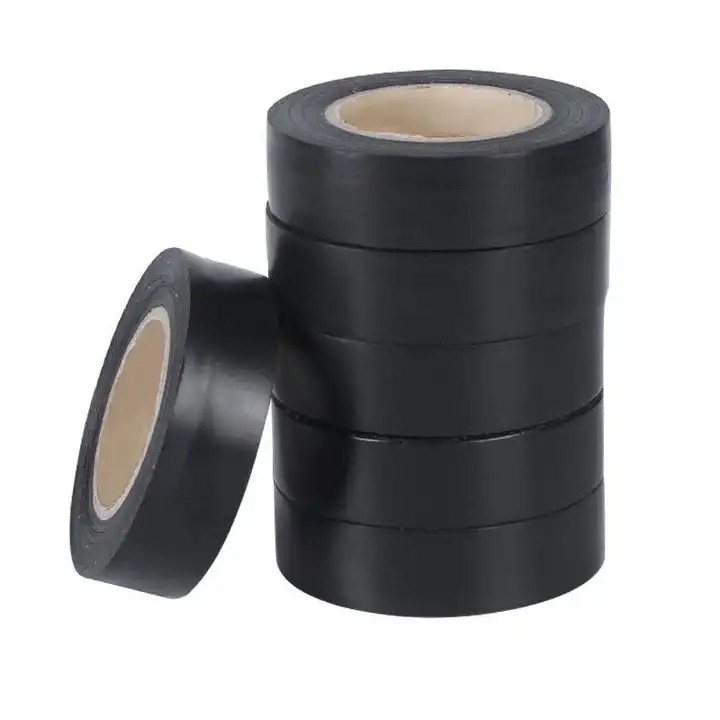

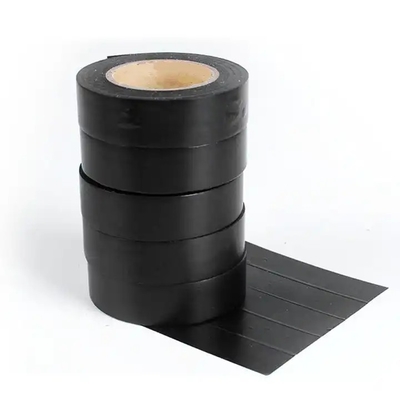

Environmental Protection Low Temperature Resistance Black PVC Wire Harness Tape
introduction:
Insulation tape is widely used in electrical operations such as wrapping, fitting and sealing of wires under 380V voltage. There are two kinds of production technology: gluing and gluing. Production process: polyvinyl chloride film as the base material, coated with rubber type pressure sensitive adhesive manufacturing.
Electrical insulation adhesive tape, commonly known as electrical tape (hereinafter referred to as insulation tape), is a special adhesive tape used for electrical wiring and other insulation. In the past, the electrical line has been using adhesive tape type insulation adhesive tape, that is, black insulation adhesive tape, its base tree (back material) with woven cloth soaked with insulation material. With the progress of science and technology and the development of economy, there are many types of insulation tape, but the common ones are: PVC and polyolefin insulation tape.
| Model number | PVC DUCT TAPE |
| Size | 0.13mmx48mmx30m 36rolls/ctn or customized |
| Color | Gray, White, Black |
| Material | PVC+Rubber |
| Feature | Waterproof,weather resistance and antiocorrosion. |
| Usage | Widely used for corrosion protection and pipes wrapping like air duct,water pipe and oil pipe line. |
| Code | Thickness/mm | Adhesive kg/19mm | Tensile Strength kg/25mm | Elongation% |
| GSKA-013 | 0.13 | 0.40 | 6.0 | 150 |
| GSKA-015 | 0.15 | 0.40 | 6.6 | 200 |
| GSKA-018 | 0.18 | 0.50 | 7.0 | 200 |
| GSKA-020 | 0.2 | 0.50 | 9.0 | 200 |
