Product Details:
|
| Body Table: | SUS#304 Stainless Steel | Vibration Mode: | Reciprocating (commonly Known As Horse Racing) |
|---|---|---|---|
| Certification: | CE ISO | Amplitude Range (mm): | 25.4mm |
| Work Surface SizeL × W (cm): | 100 × 120 | Voltage: | 110-240V/50-60Hz |
| Frequency Range: | 100 ~ 300rpm | Environmental Conditions: | Temperature Temperature 5 ~ 40 ° C |
| Highlight: | Vibration Test Bench,Vibration Testing Machine |
||

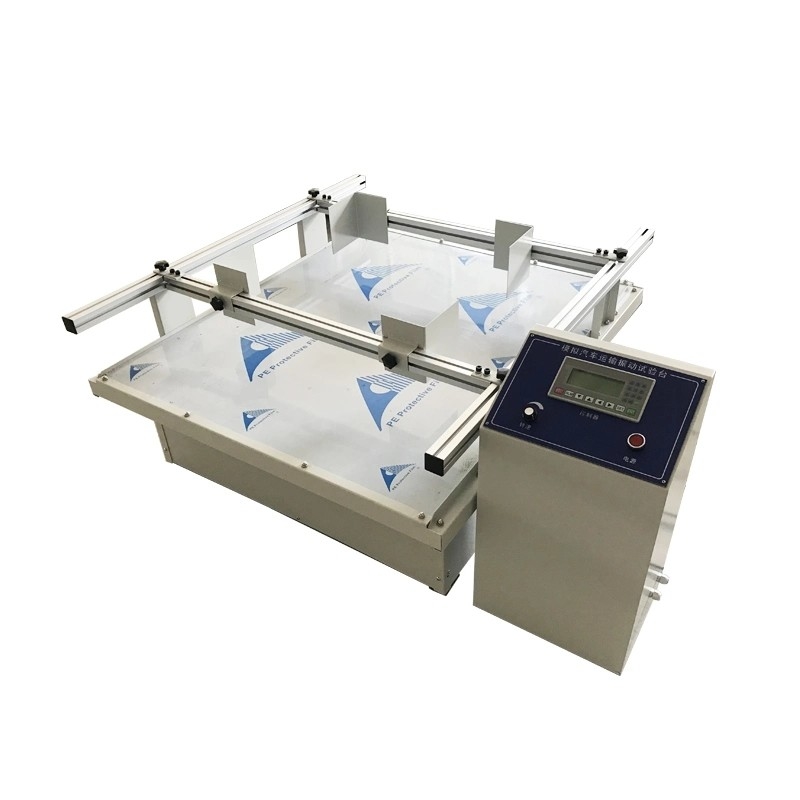

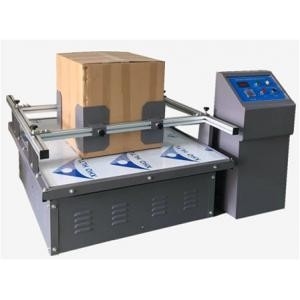

Test Load Vibration Testing Machine Vibration Table Test Equipment Transport Simulation
Test Load Transport Simulation Vibration Testing Machine:
The simulated transport vibration table is mainly used to simulate the collision of goods and articles produced by the product in the car trunk when
the vehicle encounters different road conditions such as bumps, up-hills, down-hills, corners, etc. Collision, extrusion of items and articles may
cause damage to the product, thereby further improving the quality of the articles and the quality of the packaging of the articles, and giving the
basis for the evaluation or confirmation of the packaging of the articles and articles.
Features:
1). Buffer start function, work medium noise very low.
2). Digital meter shows the vibration frequency
3). Synchronization silencing belt transmission
4). Sample clamping adopts guide rail type,safe and easy to operate
5). Machine base adopts heavy channel steel with vibration damping pads
6). Easy to install, operate steadily, no need to install foot screws
echnical Sheet:
| Model | GSKA-100 |
| Maximum test load (kg) | 100kg |
| Frequency range | 100 ~ 300rpm |
| Amplitude range (mm) | 25.4mm |
| Vibration mode | reciprocating (commonly known as horse racing) |
| Work surface sizeL × W (cm) | 100 × 120 |
| Body table | SUS#304 stainless steel |
| Outer box part | Electrolytic board outside baking anti-static powder paint baking table fixture aluminum alloy |
| Time setting | 0seconds,99hour hours |
| Start time setting | 0-15seconds |
| Speed control mode | frequency control (frequency motor low noise 60 decibel long service life) |
| Power supply voltage (V/HZ) | AC 1 ∮220/50Hz |
| Power consumption (KVA) | 0.75 |
| Machine weight (kg): 150 | 150 |
| Environmental conditions | Temperature Temperature 5 ~ 40 ° C; Humidity ≤ 85% RH |
| Aplicable Standards | EN, ANSI, UL, ASTM, ISTA, GB/T4857.7-2005 and other domestic or international transportation standards. |
Contact Person: Ms. Kris Zhang
Tel: 0086-0769-85914911
