Product Details:
|
| Power: | 0.75kw | Mixing Pot Volume: | 5L, |
|---|---|---|---|
| Working Clearance: | 3 ± 1mm | Net Weight: | 85kg |
| Overall Dimension: | 74 * Forty-nine * 80(cm) | Wall Thickness: | 1.5mm |
| Mixing Blade Width: | 135mm | ||
| Highlight: | 0.75kw Cement Mortar Mixer,Planetary Cement Mortar Mixer |
||

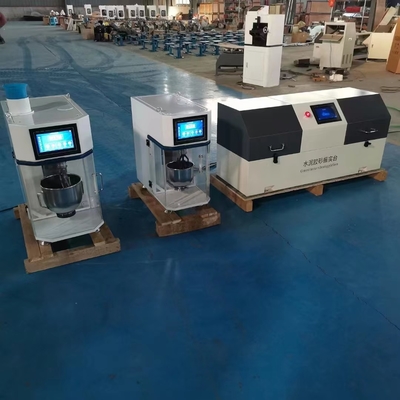

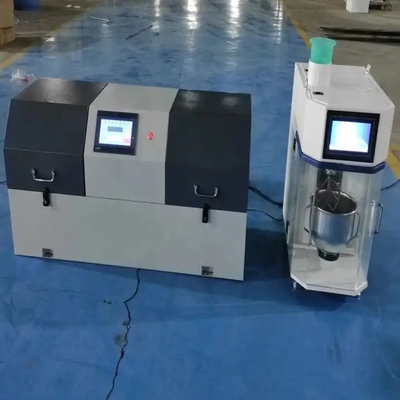

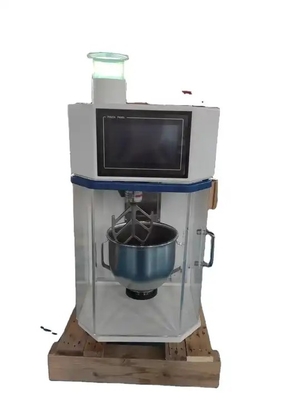

Planetary Cement Mortar Mixer Fully Automatic Laboratory Mortar Strength Mixer
1. Introduction:
This mixer is designed to mix mortars and cement pastes to the requirements of the above standards.The mixing paddle has a planetary motion and is driven by a motor with a microprocessor based speed and program controller. The mixer can be operated either in an automatic or manual mode. When the mixer is used in the manual mode, the two mixing speeds can be changed by means of a rocker switch, without switching off the motor. In the automatic mode any one of the pre-set mixing programmes may be
selected.
2. Specification:
|
path of particle |
Low speed (rotation: 140 ± 2R / min) (Revolution: 62 ± 2R / min)
High speed (rotation: 285 ± 3R / min) (Revolution: 125 ± 3R / min) |
|
path of particle
|
The movement track of the stirring blade in the stirring pot is the same as that in iso679-1989 (E) |
| Width of mixing blade | 135mm |
|
Mixing blade connection
|
Use quick connect (the blade can be disassembled at any time to facilitate blade cleaning) |
| Mixing pot volume | 5L (wall thickness 3mm) |
| Installation of mixing pot | Adopt magnetic suction locking structure |
| Sanding method | New sand adding structure, 90 degree dumping sand adding, with higher sand adding completeness. |
| Electric protective door | Automatic door opening and closing mode is adopted |
| Working clearance | The working clearance between the mixing blade and the mixing pot is 3 ± 1mm |
| motor | Servo motor soft drive (power 0.75kw) |
| Net weight | 79kg |
| Overall dimensions | Length: 400 × Width: 560 × Height 900 (mm) |
Advantage:
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC
