Product Details:
|
| Warranty: | 1 Year | Place Of Origin: | Donggaun,china |
|---|---|---|---|
| Model Number: | GSA687E | Frequency Range: | 2-4000 |
| Max Speed(cm/s): | 150;60;120; | Power Supply: | 220V/50Hz;380V50Hz |
| Max Shock Excitation(kg.f): | 100;200;300;500;600 | Loading(kg): | 65;110;120;190 |
| High Light: | Vibration Test Equipment,Vibration Test Table |
||

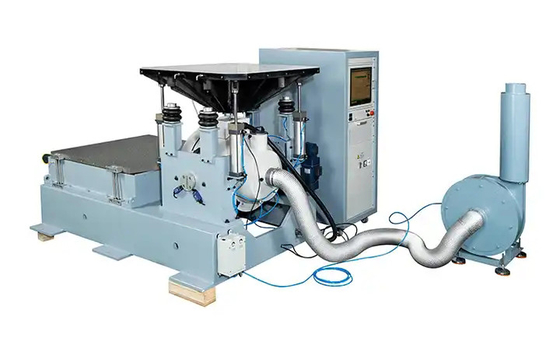

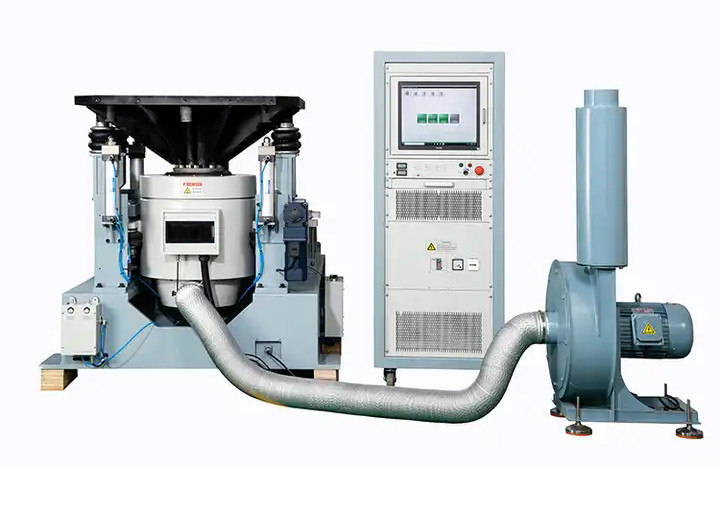

The GSA series of electromagnetic random shaker the vibration environment under laboratory conditions and test the impact strength and reliability of a variety of vibration testing applications. In the laboratory, sinusoidal reproduction, random reproduction, resonance search, classical impact and road simulation can be realized with the help of vibration test system. It is very important for product quality assurance and new product research and development.
The GSA series of electromagnetic vibration test systems is designed specifically to meet the needs of long run, with vertical and horizontal vibration achieved by installing a vibration proof base. The standard platform is fitted with an efficient airbag isolation device that minimizes vibration transmission to the building while avoiding the need for additional foundations in most cases.
A complete vibration test system consists of a shaker, a power supply and a vibration measurement and control system, providing technical support for establishing product quality inspection in accordance with relevant national and international standards.
Solid suspension system and linear motion guide, strong bearing capacity, good guide function, high stability;
The load center airbag has high static stiffness, low dynamic stiffness, strong bearing capacity and good amplitude change resistance.
High efficiency D level power switch with peak current of 3 sigma provides optimal power consumption and minimal harmonic distortion;
Fast self-diagnosis, safety interlock, high safety and reliability;
Air bag isolation device is used for vibration platform, without additional foundation, perfect reproduction of vibration wave, reduce vibration
transmission;

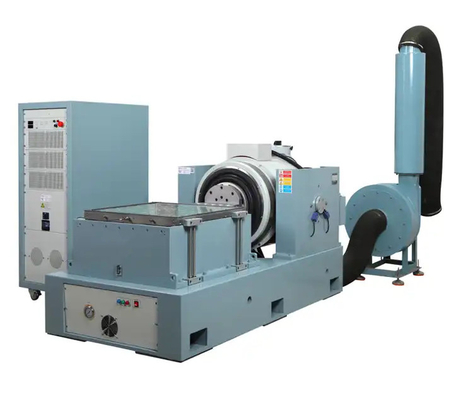

Providing horizontal and vertical expansion platforms for different applications;
The controller is simple to operate.
| Max. sine force | 300Kg.f peak (3kN) | |||
| Max. random force | 300Kg.f r.ms (3kN) | |||
| Max. shock force | 600Kg.f peak (6kN) | |||
| Frequency range | 1~4000Hz | |||
| Max. displacement | 40mm p-p | |||
| Max. velocity | 2.0m/s | |||
| Max. acceleration | 100G (980 m/s2) | |||
| Max. load (sine) F=M.A | ||||
| 5G (49 m/s2) | 10G (98 m/s2) | 20G (196 m/s2) | 30G (294 m/s2) | |
| 57kg | 27kg | 12kg | 7kg | |
| Effective load | 120 kg | |||
| Vibration isolation frequency | 2.5 Hz | |||
| Diameter of armature | 150 mm | |||
| Mass of armature | 3kg | |||
| Table screw | 13×M8 | |||
| Flux leakage | <10gauss | |||
| Allowable eccentric moment |
300N.m
|
|||
| Shaker dimensions | 750×560×670 mm | |||
| Shaker weight | About 560Kg | |||
FAQ:
Q1: Are you manufacturer?
Yes, we are manufacturer. You are welcome to visit our company and check every steps which we are manufacturing Environmental test chambers.
Q2: Which languages can your team support?
Our team can support you English, Chinese, Spanish(Español), Indonesian(Bahasa Indonesia),Japanese(日本語).
Q3: If we order is big test chambers from you,how should we install it at our side?
We offer the service of on-site installation and trainning for you.
Q4: Excellent after sale service?
Free parts warranty for 12 months. We can offer support via email, telephone, skype.,etc. On-site technical support can be available with charges
by the customer.
Q5: Good Packaging:
The chamber will be covered with air bubble film before put into wooden case, which not only has good shock absorption, impact resistance, heat
sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency.
