Product Details:
|
| Feature: | Coreless Brushless Motor | Rated Voltage: | 24V |
|---|---|---|---|
| Rated Output Torque(N.m): | ≤16 | Torque: | 2.4-120Kgf.cm |
| Speed(RPM): | 1.6-1620RPM | Continuous Current(A): | 0.01-1A |
| Highlight: | Bevel Gear Reduction Motor,24V Gear Motor Reducer,OEM Gear Motor Reducer |
||
24V Bevel Gear Reduction Motor Gearbox Gear Motor Reducer OEM

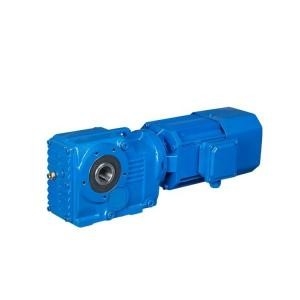

Helical Bevel Geared Motor Gearbox Gear Electric Motor Reducer:
We are offerings series helical-worm geared motor:
output speed(r/min): 0.04-349
output torque (n.m): top to 6500 motor
power (kW): 0.12-22 -
structures: foot-mounted, flange-mounted, with or without motor, shaft-input type for sprocket or pulley;
transmission ratio: fine division, wide scope, and may combine different series to get larger ratio;
the box body is made of high-strength cast iron. Gear and gear shaft adapts the gas carbonization, quenching and fine grinding process, therefore the bearing capacity of unit volume is high.
high efficiency up to 98%per stage, low noise
| Gear type | Helical Gear |
| Gear & Gear Shaft Material | 20 CrMnTi |
| Gear hardness | HRC58~62 |
| Solid & Hollow shaft material | 42CrMo |
| Housing material | HT250 High-strength Cast Iron |
| Gear precision | DIN6 |
| Bearing | C&U ,HRB ,NSK, LYC ,ZWZ |
| Oil Seal | NAK Brand VITON or NBR |
| Warranty | 1 Year |
The features of R Series Foot Mounted Speed Reducer:
1. Compact structure, modular design
2. High efficiency of the gear units of over 90%
3. Long service life
4. Multi-stage(2 or 3 stages) gear units for low output speed
5. Hollow output shaft with keyed connection, shrink disk, splined hollow shaft, or torque arm
6. Can be combined with other types of gearboxes (Such as R Series, UDL Series)R K S F helical gear motor
R Series Helical Gear Reducer:
1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.
Often ask questions:
Q: What are your main products?
A: We currently produce brushed DC motors, brushed DC gear motors, planetary DC gear motors, brushless DC motors, stepper motors, AC motors and high precision planetary gearboxes. You can view the specifications of the above motors on our website and you can email us to recommend the motors required according to your specifications.
Q: How to choose the right motor?
A: If you have pictures or drawings of the motor to show us, or if you have detailed specifications such as voltage, speed, torque, motor size, motor working mode, required life and noise level, please feel free to let us know so that we can recommend A suitable motor according to your requirements.
Q: Do you have a custom service for your standard motors?
A: Yes, we can customize according to your requirements for voltage, speed, torque and shaft size/shape. If you need to solder additional wires/cables to the terminals or need to add connectors, capacitors or EMCs, we can also manufacture.
Q: Do you have a separate motor design service?
A: Yes, we would like to design the motor separately for the customer, but there may be some die development costs and design costs.
Q: What is your delivery time?
A: Generally speaking, it takes 15-30 days for our regular standard products and longer for our custom products. But we are very flexible about the delivery time, which will depend on the specific order.
