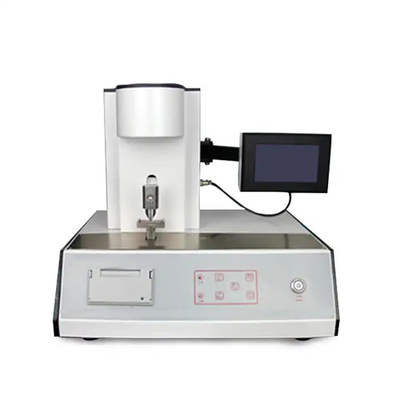

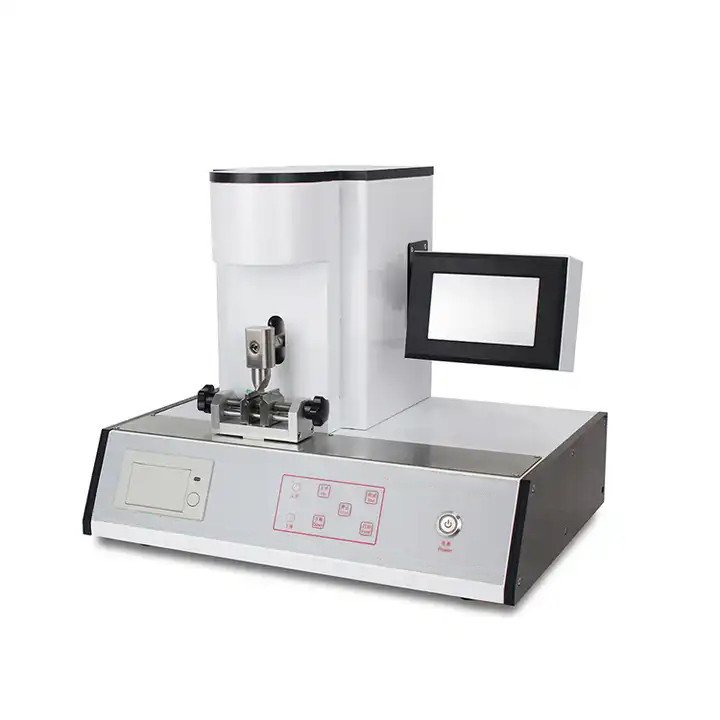

Medical Syringe Needle Stiffness Testing Machine Used For Laboratories

Medical Syringe Needle Stiffness Testing Machine  Used For Laboratories
Medical Syringe Needle Stiffness Testing Machine  Used For Laboratories Medical Syringe Needle Stiffness Testing Machine  Used For Laboratories

Large Image :  Medical Syringe Needle Stiffness Testing Machine Used For Laboratories

Product Details:
Place of Origin: Guangdong,China
Brand Name: GSKA
Certification: CE
Model Number: GSA-687
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiate
Packaging Details: Import and export standard packing.
Delivery Time: 25-45working days after received deposit
Payment Terms: L/C, T/T,
Supply Ability: 160 Set / Sets per Month

Medical Syringe Needle Stiffness Testing Machine Used For Laboratories

Description
Warranty: 1 Year Model Number: GSA-687
Place Of Origin: Guangdong,China Deflection Range: 0-5mm
Setting Load: 0-60N Needle Bracket Distance: 0-55mm
Power: Electronic Deflection Accuracy: ±0.01mm
High Light:

Stiffness Testing Machine

,

Hardness Testing Equipment

Medical Syringe Needle Stiffness Testing Machine Used For Laboratories



product presentation:



Syringe needle stiffness testing machine is a device used to test syringe needle stiffness. It is usually composed of three parts: a frame, a loading system and a data acquisition system. The main function of the testing machine is to test the stiffness and bending properties of the syringe needle during the injection process, so as to ensure the quality and safety of the syringe needle. During the test, the sample is clamped and a certain load is applied to measure its bending and stiffness under a certain pressure. The testing machine usually has the characteristics of high precision, high reliability and easy operation, and is widely used in medical equipment, pharmaceutical, food and other industries.



Technical parameter
Deflection Range
0-5mm
Deflection Accuracy
±0.01mm
Setting Load
1-80N
Force Accuracy
±0.01N
Needle Bracket Distance
0-60mm
Distance Accuracy
0.1mm
Needle Tube Specifications
0.3mm-3.4mm
Loading Speed
0-10mm/min (Stepless speed)
Speed Accuracy
±0.1mm/min
relative humidity
Up to 80%, no condensation
Power supply
220V,50Hz



Technical characteristics


* Large color touch screen with intelligent data processing functions providing users with a comfortable and smooth operating experience
* Equipped with advanced displacement control system to ensure test accuracy
* Concise and intuitive operation interface, convenient user-defined test functions, and complete data analysis and reporting functions
* Automatic calibration, simple and convenient operation
* Brand-new UI interface design, intuitive operation interface, greatly improving the operation experience
* Automatic judgement of test status and result qualification.
* Support a variety of specifications sample test, normal wall, thin wall, ultra-thin wall can freely choose
* With automatic data storage, power-off automatic memory function
* Micro printer and USB data interface, convenient for data output and transmission
* Powerful data storage function, which can store more than 6000 data
* The computer software fully complies with the requirements of GMP "Computerized System", with functions such as user management, authority management, and data audit trail.

Medical Syringe Needle Stiffness Testing Machine  Used For Laboratories 0

Medical Syringe Needle Stiffness Testing Machine  Used For Laboratories 1

Medical Syringe Needle Stiffness Testing Machine  Used For Laboratories 2



FAQ


Q1.Are you a manufacturer or a trading company ?
A: We are a professional manufacturer of test instruments. And we have our own subsidiary company for trading. All the import and export business will be handled by our own trading company.



Q2.Where is your factory located ? How can I visit there ?
A: Our factory is located in Dongguan, Guangdong Province.



Q3.What’s the price of your test instruments?
A: Please contact us via trademanager or email, we will send you detailed quotation.



Q4.How to support me if i don't know how to use it?
A: Free training within the warranty by tel and mail or skype. And we have professional operation manual and operation video. We also can let our technician to customer’s company to provide training and support if customer request.



Q5. If machines wearing parts need changing, what should we do?
A:We can offer the wearing parts all the time, and offer video to show how to change it.



Q6. What's the payment terms if we want to buy the machines?
A: L/C or 100%T/T.
