Product Details:
|
| Sample Size: | Φ39.1×80mm, Φ61.8×125mm | Place Of Origin: | Donggaun,china |
|---|---|---|---|
| Axial Load: | 0-30KN, Relative Error ±1%. | Lifting Plate Stroke: | 0-90mm |
| Lifting Plate Speed: | 0.0024-4.5mm/min Continuously Variable Speed | Ambient Pressure (σ3): | 0-2mpa Digital Display NC, Relative Error ±1%FS |
| Power Supply: | 220±22V, 50HZ | Pore Water Pressure (µ): | 0-2mpa Electrical Measurement Digital Display, Relative Error ±1%FS |
| High Light: | Strain Controlled Triaxial Apparatus,Soil Sample Strength Triaxial Apparatus,CE Triaxial Test Apparatus |
||

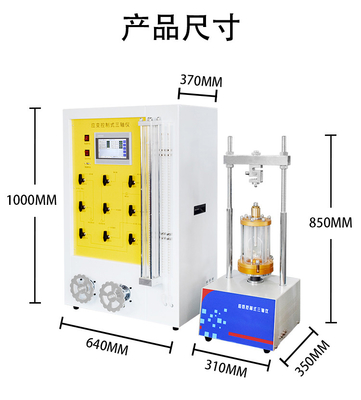

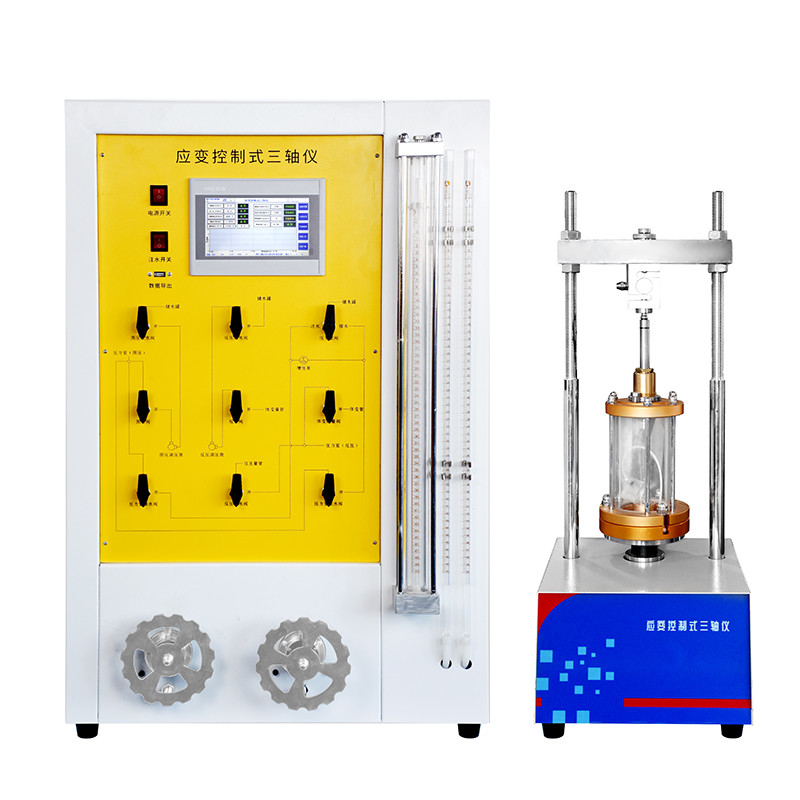

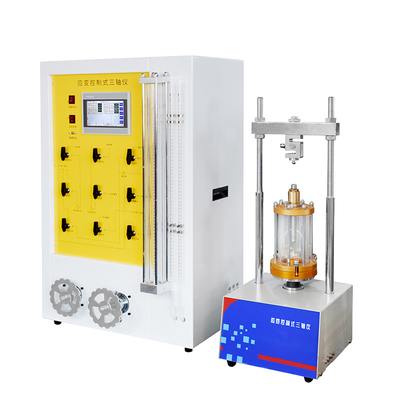

Strain Controlled Triaxial Apparatus For Testing Soil Sample Strength
Product introduction:
This product is suitable for testing the strength, deformation and pore water pressure of soil samples. According to different drainage conditions, it can be used as unconsolidated undrained shear (UU), consolidated undrained shear (CU) and consolidated drainage shear (CD).
Implementation standard
GB24107.1-2009 "Strain control triaxial apparatus"
GB/T50123-2019 "Geotechnical Test Method"
JGT 3430-2020 Code for Highway Geotechnical Test
Product characteristics
1, the pressure is large, you can do medium pressure or low pressure triaxial test can meet the needs of high dam and large important engineering triaxial test in hydraulic engineering.
2, can be used for fine grained soil, also can be used for coarse grained soil test.
3, without equipped with air compressor or other pressure sources, the instrument is measured and controlled by the sensor through the measurement and control instrument. Numerical control electric pressure regulation, full water pressure cycle.
4, the operation is simple, because it adopts the pressure of electric measurement digital display numerical control so its hydraulic system pipeline less, less valves, and intuitive, easy to learn and understand, easy to operate, high precision.
5, the host adopts high-power stepper motor, light weight, less vibration, low noise, outstanding function can realize stepless speed regulation, suitable for indoor or field use.
6, no mercury pollution safe and reliable use.
7, pressure chamber high pressure resistance, small wear resistance.
technical specifications:
| Sample size | Φ39.1×80mm, Φ61.8×125mm |
| Axial load | 0-30KN, relative error ±1%. |
| Lifting plate stroke | 0-90mm |
| Lifting plate speed | 0.0024-4.5mm/min continuously variable speed |
| Ambient pressure (σ3) | 0-2mpa digital display NC, relative error ±1%FS |
| Back pressure (σb) | 0-2mpa digital display NC, relative error ±1%FS |
| Pore water pressure (µ) | 0-2mpa electrical measurement digital display, relative error ±1%FS |
| Volume variation measurement | 0-50ml, minimum grading value 0.1ml |
| Power supply | 220±22V, 50HZ |
FQA:
Q1: How long is the delivery time?
A:Normally 15-30 working days after received deposit,we have our own factory,the delivery time can be adjust flexible.
Q2: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q3: What is the payment terms?
A: T/T, L/C, Western Union, etc
Q4: How about the products quality?
A: Our products apply to ISO, ASTM, GB, etc
Q5: Is it OK to print my logo on machine product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
or 100% L/C at sight .
Q7: Can we test sample before place order?
A: Of course,we can test sample and provide test report to you with free.
