Product Details:
|
| Power: | Electronic, 380V/220V | Type: | Manual And Automatic |
|---|---|---|---|
| Light-duty: | 2.5kg | Compacting Number: | 37 Times/min |
| Heavy Duty: | 4.5kg | Hammer Head Dia.: | 50 Mm |
| Dimension: | 650*400*1320 Mm | Keyword: | Proctor Compactor |
| High Light: | CBR Test Machine,CBR Testing Machine |
||
ASTM Standard Automatic Soil CBR/Proctor Compactor For Soil Compaction Testing

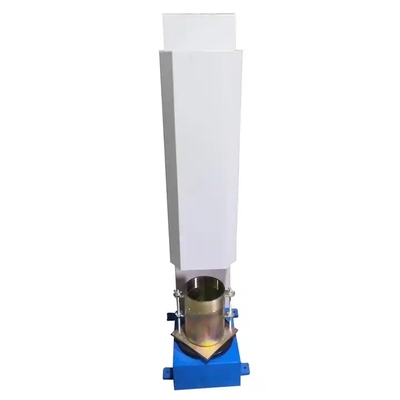

Automatic Proctor Compactor:
It is suitable for the foundation engineering construction such as water conservancy dam, traffic, railway, airport
and building etc. With standard compaction method to determine the relationship between density and water ratio,then confirm the dry density and moisture content of soil. It could satisfy the specimen preparation requirements of CBR tests and resilience modulus tests. It could provide sand module and spodosol module of dia. 152 and dia. 100. It could perform light compaction and heavy compaction. With perfect designation, it has lots of specialties such as digital display, auto number and auto circulation etc.
Manual Proctor Compactor:

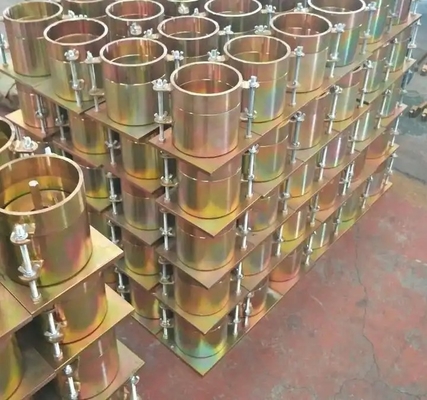

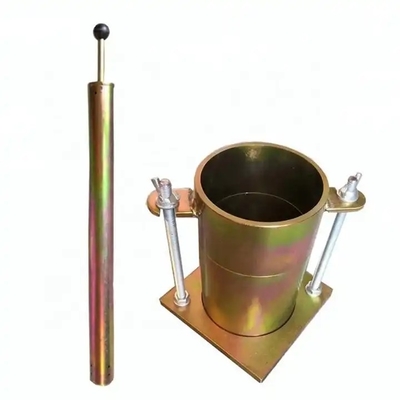

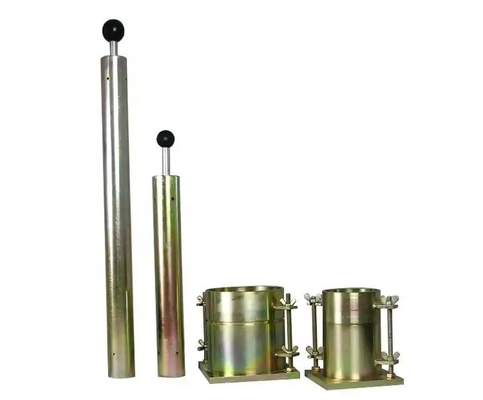

Moulds and rammers are used for determining the relationship between the moisture content and density of compacted soil. Made of plated steel, includes collar, mould body and base plate. Rammers are used to compact the soil sample in the Proctor Moulds and made of plated steel. Different models are available conforming to the relevant standards.
| Product Name | Automatic Soil Modified Proctor Compactor |
| Heavy-duty compacting test | hammer weight 4.5kg drop height: 450mm |
| Light-duty compacting test | hammer weight 2.5kg drop height: 300mm |
| Specimen cylinder dia | dia. 100, dia. 152 mm |
| Hammer head dia. | dia. 50 mm |
| Compacting number | 30 times/min |
| Power | 380V / 220V |
| Dimension | 650×400×1320 mm |
| Weight | 130kg |
