Product Details:
|
Rated FlowModel NO: | GSA-G27 | Brand: | GSKA |
---|---|---|---|
Customized Support: | OEM | Volume: | 700L |
Interior Dimensions(mm)L*W*H: | 1950*1250*1400 | Temperature Accuracy: | ±1°C |
Temperature Range: | Laboratory Temperature: 35°C--50°C (can Be Set Arbitrarily) | Certification: | CE SGS ROHS UL |
High Light: | Temperature Test Chamber,Climate Test Chamber |

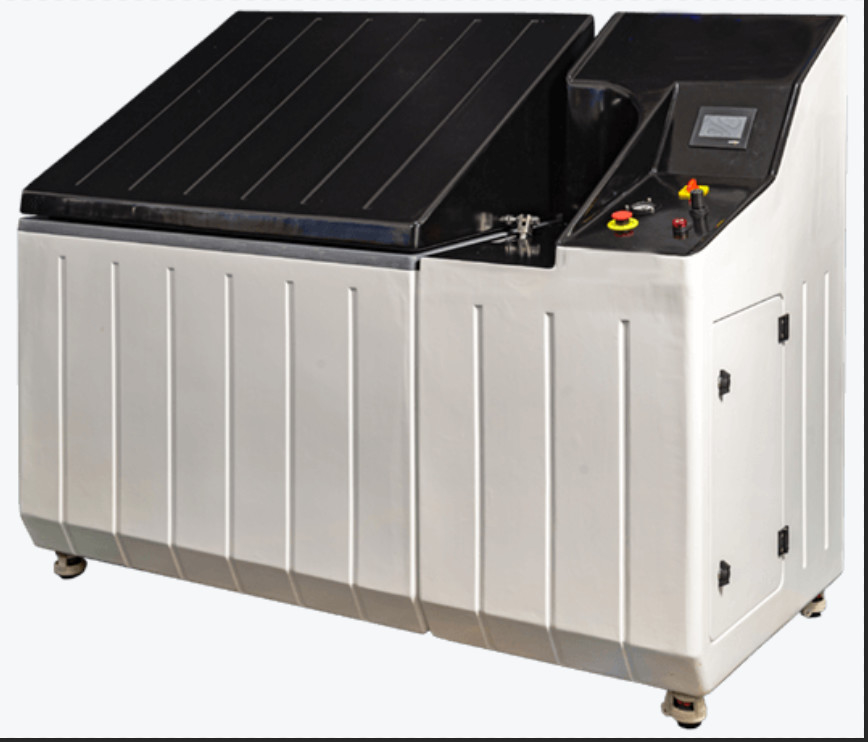

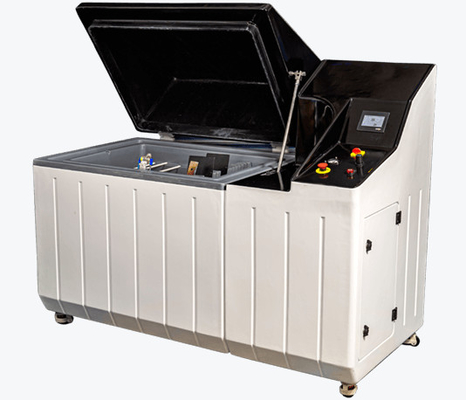

700L Salt Spray Cabinet LED Digital Display For Chemical Material Testing
product presentation:
Salt spray chamber is a laboratory equipment used to test the durability and corrosiveness of items in harsh salt spray environments. In a salt spray cabinet, items are usually exposed to high concentrations of saline mist to simulate corrosion in industrial environments such as oceans, chemicals, and automobiles. By observing the changes of items in the salt fog test chamber , their corrosion resistance and service life can be evaluated. Salt spray cabinet are widely used for quality control of items, research and development of materials, and quality assurance of products.
Features
♦ Material is Glass fiber reinforced plastics
♦ Saturated barrel temperature control and display Unit
♦ Corrosion-resistant atomizer tower with quartz spray
nozzles
♦ Spray deposition is 1~2ml / 80cm2 · h
♦ Continuous / periodic salt spraying
♦ Temperature sensor PT-100 MV A-class
♦ Saturated barrel, 31Liter
♦ 2 fog collectors in cabinet
♦ Standard sample holders
♦ Protection System
Material
1: 5MM imported gray and white impact resistant P.V.C
board, high temperature resistance up to 85°C, corrosion
resistance.
2: Support shelf:φ10MM glass fiber rod, corrosion resistance.Plastic-steel V-shaped brackets and fiber rods is placed at an angle to ensure that
the test object is inclined at 15-30 degrees.
3: Pressure bucket adopts seamless welding by 2.0MM SUS304 stainless steel plate.
4: Using titanium alloy heating tube for heat generation, long service life, high corrosion resistance.
5: The cover is made up of 5MM imported transparent (Germany YLIS) acrylic board. Fine workmanship, beautiful appearance, high transparency.
Specifications
Model | GSA-G27 | GSA-G28 | GSA-G29 | GSA-G30 | GSA-G31 |
Volume | 108L | 270L | 600L | 960L | 1200L |
Interior dimensions(mm)L*W*H | 600*450*400 | 900*600*500 | 1200*1000*600 | 1600*1000*600 | 2000*1000*600 |
Exterior dimensions(mm)L*W*H | 1060*580*1050 | 1400*850*1200 | 1950*1250*1400 | 2300*1250*1500 | 2700*1250*1500 |
Control system | 1.Adopt Japan IEC high-speed CPU, stable performance, safety and reliability | ||||
2.LED digital tube displaying, humanization interface, all information is clear at a glance. | |||||
3.Multi-fault warning protection system, anti-dry heating, anti-overheating | |||||
4.High-power SSR output, imported sterling silver relay contacts, with a service life to 106. | |||||
5.Multiple time modes, S, M,H can be switched as required. | |||||
6.Multi-control mode for continuous/discontinuous/manual/automatic testing. | |||||
7.With manual/automatic demist mode to ensure that the salt mist can't be leaked, so as to avoid corrosion of the laboratory. | |||||
8.Hidden correction method to ensure absolute temperature is under control. | |||||
Water Replenishing system |
Automatic/manual water charging system, with the function of automatic/manual replenishment when the water level is insufficient. The experiment will be not interrupted which can be met the diverse environmental requirements for users (Automatic water replenishment only needs to be connected with water pipe). | ||||
Heating mode | Direct steam heating.it has the feature of quick heating speed, uniform temperature distribution, and less stand-by time. | ||||
Controlling mode | Touch controlling standard operation. With full detection fault pre-warning system. Lights up when fault occurs. Built-in manual defogging function, can be placed or viewed during the experiment to remove the experimental accumulation of salt spray. | ||||
Safety protection device |
With double over-temperature protection (Italian KGB), the heating power can be switched off automatically in the event of temperature control meter fault or a heating system fault. Avoid overheating damage on the instrument. Double low water level protection to prevent dry burning damage on the heat pipe of laboratory and pressure bucket With overload short circuit protection. To prevent damage on the instrument and internal electronic control accessories when an exception occurs. (Equip the low salt level warning of the brine bucket when doing experiment to avoid experimental abnormalities after the brine is finished) |
||||
Dosage barrel | Built-in fog collection bucket. Compared to the traditional external type, it is less likely to be damaged. | ||||
Nozzle | Precision quartz glass nozzle. Using 4000 hours without crystallizing can be guaranteed.The spray tower is equipped with a conical dispersive device, which has the functions of guiding fog, adjusting the amount of fog, and evenly falling fog. | ||||
Sealing method | The inside and outside box is connected to the sealing groove, using water sealing. avoid salt spray leakage. | ||||
Temperature range |
1: Laboratory temperature: 35°C--50°C (can be set arbitrarily) 2: Pressure bucket temperature:47°C--63°C (can be set arbitrarily) |
||||
Heating rate |
1: Laboratory, room temperature---→35°C about 35 minutes 2:Pressure bucket, room temperature----→47°C about 15 minutes |
||||
Temperature accuracy | ±1°C | ||||
Power |
60/90 model AC220V 50HZ 15A 120 and more models AC220V 50HZ 20A This machine is suitable for neutral salt spray test (NSS) and corrosion test (AASS,CASS) |
FAQ
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q:Do you accept customization service?
A:Yes, of course, we can not only offer standard High and Low Temperature Alternating Damp Heat Testing Chamber, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.
Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: What's the delivery term?
A:At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
Q:How about the packing for machine, is it safely protected during transportation?
A: Testing Chamber is packed by standard export wooden box for outside package and stretch film for inner package, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.
