Product Details:
|
Warranty: | 1 Year | Place Of Origin: | Guangdong, China |
---|---|---|---|
Product Name: | Xenon Test Chamber | External Dimension: | 1220mm*1200*2050mm |
Lamp Rated Life: | 2000h | Weight: | 500Kg |
Brand: | GSKA | Light Source: | One 6.5 KW Water-cooled Long Arc Xenon Lamp |
Highlight: | Temperature Test Chamber,Climate Test Chamber |

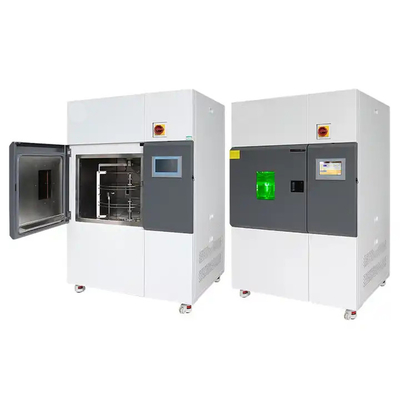

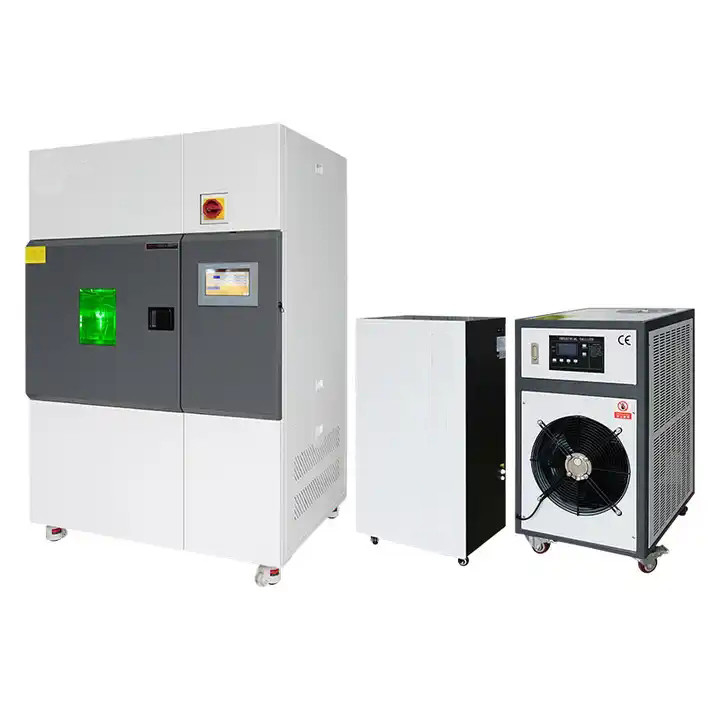

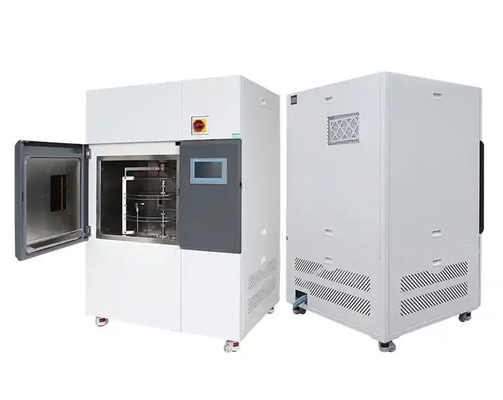

Xenon Arc Accelerated Aging Test Chamber For Laboratory Material Testing
product presentation:
The Xenon Chamber is a rotary type that meets the requirements
of all domestic and foreign test standards. It adopts a high-power
precision water-cooled xenon lamp of 6.5KW, and the exposure
area reaches 6500cm. The Xenon light source and filter imported
from the United States are used to simulate the full spectrum of
sunlight more realistically. The stable light source ensures the
comparability and neproducibility of the test data.
Exposure Area Up To 6500cm²
It can expose 63 to 65 standard samples of 150mm×70mm at
a time. The automatic rotating three-layer drum-shaped sample
rack ensures consistent test conditions for all exposed samples.
Model
|
GSA-X21
|
Light Source
|
One 6.5 KW water-cooled long arc xenon lamp
|
Lamp life
|
2000 hours
|
Filter
|
Original ATLAS filter; fully simulates the indoor or outdoor solar spectrum
|
Effective Exposure Area
|
6500 cm2 (63~65 pieces of standard samples of 150mm×70mm can be exposed to the sun at a time)
|
Irradiance Monitoring Point
|
340nm,420nm,300nm~400nm,300nm~800nm
|
Operation Room Temperature Adjustable Range
|
Chamber Temperature~70℃ (dark)
|
Black Panel/Black Scale Temperature Adjustable Range
|
BPT:Chamber Temperature~110℃;BST:Chamber Temperature~120℃
|
