Product Details:
|
| Warranty: | 1 Year | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Model Number: | GSA-S407 | Humidity Test Range: | 10%~98% |
| Volume: | 64L | Temperature Uniformity: | 1.5°C |
| Power: | 3kw | Temperature Test Range: | -70~180℃ |
| Highlight: | Walk In Climate Chamber,Temperature Test Chamber |
||

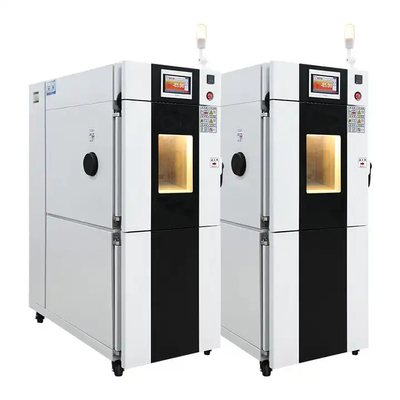

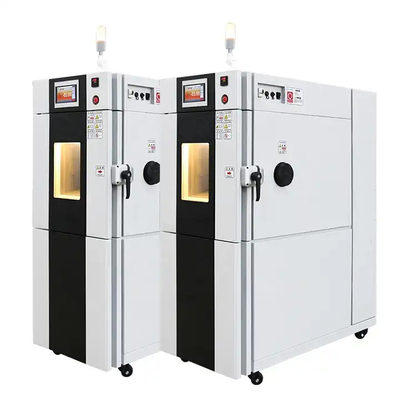

Weiss Climate Test Chamber Temperature Test Range -70~180℃ Used For Laboratory
product presentation:
Weiss test box shoes use constant temperature
and humidity
test boxes with seasonal variations, different climate zones - your
product must be able to withstand various temperatures during
manufacturing, transportation, storage, and use. The Weiss test
chamber has a wide range of applications, allowing you to control
the temperature and humidity in the chamber, ranging from
-70 ° C to+180 ° C (temperature) and from 10% to 98%
(relative humidity). It will help you test the impact of
temperature and humidity on product characteristics,
functionality, and lifespan under accelerated conditions.
feature

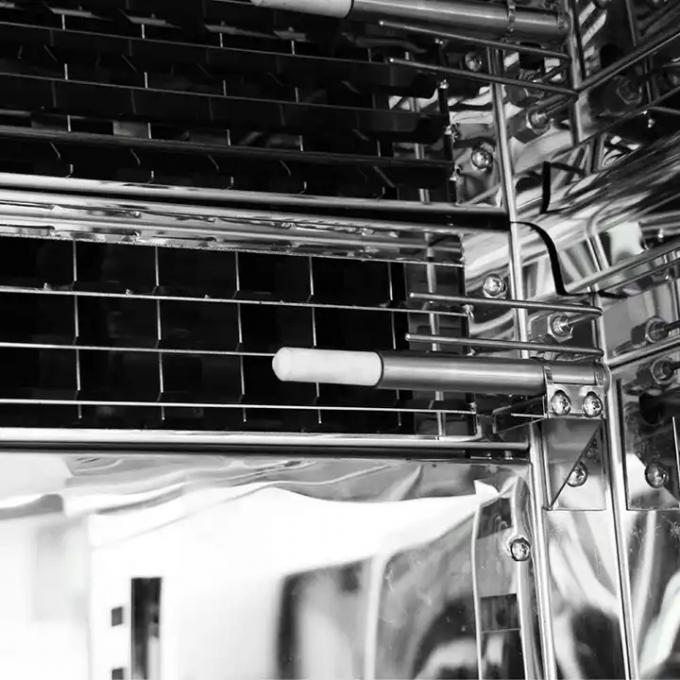

1.Better air duct design
Double air duct, connected with chamber
but isolate, air out from top and return from bottom.
The racks is made of high-quality cold-formed stainless steel plate,
adjustable louver for air outlets.
2.Extended control panel
Equipped with independent over-
temperature protector,2 groups of 220V power sockets,
communication interface and leakage circuit breaker for the
main power supply of the equipment
3.Electronic temperature humidity sensor
Adopt VAISALA electronic humidity sensor importedfrom Finland;
its humidity resolution can reach0.01%rh. No need to change
wet cloth, avoid adding tedious work.
4.Automatic water replenishment
Equipped with automatic water replenishment system, double-layer
filter device. New structure design, high efficiency
and low water consumption.
|
Model
|
GSA-S407
|
|
|
System
|
Temperature and Humidity Balance Control (BTHC) System
|
|
|
Test area capacity
|
64L
|
|
|
Test area load-bearing capacity
|
30KG
|
|
|
Internal dimensions W×H×D mm
|
400*400*400
|
|
|
Dimensions W×H×D mm
|
640*1688*1305
|
|
|
Weight
|
400kg
|
|
|
Power
|
1φ220V AC&50/60Hz,24A or 3φ380V AC&50/60Hz,10A
|
|
|
Performance
|
Temperature & Humidity Range
|
-70～＋100℃ (+150℃/+180℃) / 10～98%rh
|
|
Temperature & Humidity Fluctuations
|
±0.3°C / ±2.5%rh
|
|
|
Temperature uniformity
|
1.5°C
|
|
|
Temperature change rate
|
Heating rate:3.0°C/min Cooling rate:2.0°C/min
|
|
|
Extreme temperature reach time
|
Heating time:from＋20 to＋100℃ 30 minutes Cooling time:+20 to -20°C 20 minutes
|
|
|
Allowable heat load
|
est area temperature +20°C:300 W
|
|
|
Structure
|
Appearance material
|
Using 1.5mm thick FC advanced electrolytic plate + spray anti-corrosion
|
|
Test area material
|
1.2mm thick SUS304 stainless steel
|
|
|
Heater
|
Finned Nichrome Explosion-Proof Heater
|
|
|
Humidifier
|
Stainless Steel Sheathed Humidifier (Steam Humidification)
|
|
|
Condenser
|
Air-cooled condenser
|
|
|
Air circulator
|
Centrifugal fan
|
|
|
Water supply
|
Standard water tank
10 L
|
|
|
Refrigeration unit
|
System
|
Mechanical single-stage compression cooling
|
|
Compressor
|
Scroll/Piston Compressor
|
|
|
Refrigerant
|
R404A [R449A available on request]
|
|
|
Power
|
3.0 Kw
|
|
|
Noise level
|
68dB
|
|
