Product Details:
|
| After-sales Service: | Yes | Power: | Electronic |
|---|---|---|---|
| Speed: | 1mm/Min | Warranty: | 1YEAR |
| Max Pressure: | 5T | Dial Gauge: | 0~10mm |
| Certification: | CE | Brand Name: | GSKA |
| Highlight: | CBR Test Machine,CBR Testing Machine |
||
1mm/Min Cbr Test Machine With Load Ring Soil , Electronic Lab Cbr Tester
Details of CBR Test machine:

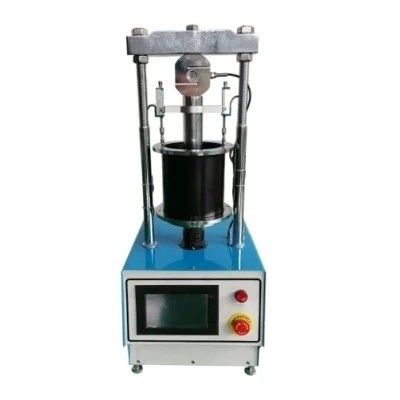

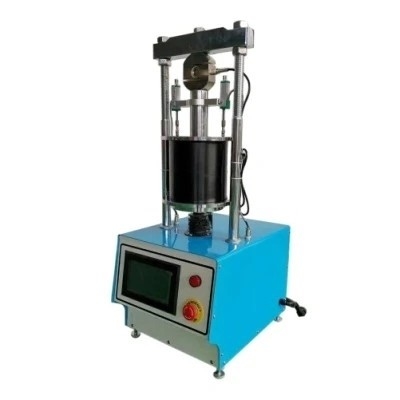

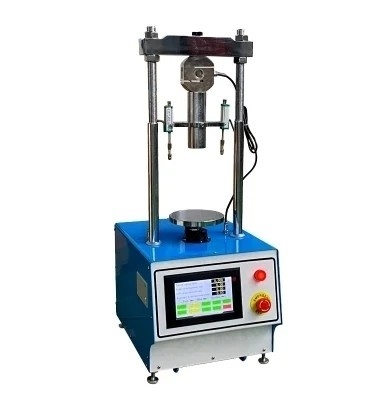

CBR Test Machine with Load Ring
CBR Test Apparatus is suitable for test of soils and mix materials (the grain size of the soil is less than 40mm) compacted with CBR mold so as to confirm the bearing loading ability of pavement, roadbed, subcrust as well as material layer of the roadbed to be designed. It consists of a twin column frame, proving ring, penetration bar, loading plate, micrometer, measuring device for swell increment etc. and easy to operate.
Parameters of CBR Test Machine:
| Speed | 1mm/min |
| Penetration bar | φ50mm*100mm |
| Multi-orifice | Two |
| Dia lgage | 0~10mm,three |
| Loading plate | 6(external diameter:φ150mm,inner diameter:φ52mm,1.25Kg one pitch) |
| Try tube | inner diameter:φ125mm,height:170mm,cushion block:φ151mm,height:50mm |
| Capacity | 30kn,50kn |
| Platen | φ170mm |
| Platen travel | 50mm |
| Mold | φ152mm*170mm |
| Dimension | 310*310*930mm |
| Weight | 100kg |
Package details of Cbr Test Machine with Load Ring Soil Lab Cbr Tester
If you have any question or need more info about Cbr Test Machine with Load Ring Soil Lab Cbr Tester, please contact with us ,thank you
