Product Details:
|
| Test Force Test Range: | 0.2% To 100% Fs | Accuracy Class: | 0.5 |
|---|---|---|---|
| Speed Accuracy: | Less Than ±0.5% | Operation Method: | Computer Control |
| Oil Cylinder Position: | Electric Control | Induction Method: | Precision Load Cell (sensor) |
| Effective Test Force Range: | 0.02/100~100% | Power: | Electronic |
| High Light: | Tensile Testing Machine,Universal Testing Machine |
||

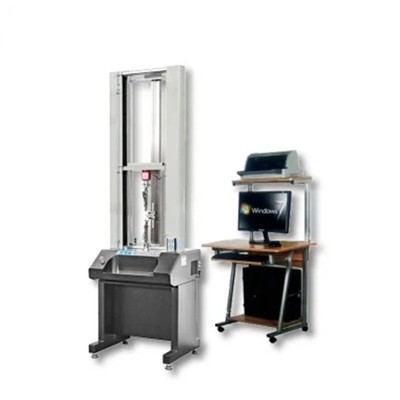

Computer Universal Leather Tensile And Compressive Strength Testing Machine
Brief introduction:
This machine is used to test tension, compression, bend, shearing force, adhesion, peeling force, tear strength, etc. Of specimen, semi product and finished product in the field of rubber, plastic, metal, nylon, fabric, paper, aviation, packing, architecture, electric appliance, automobile, etc., which are the basic facilities for input quality control, physical inspection, material research.
Standard for:
ISO7500/1, ISO 20345-2011, JJG475-88, ASTME4, DIN5122, JISB7721/B7733, EN1002-2, BS1610,
CNS9471/9470, GB/T532-2008, GJB2589.3
Attached accessories:

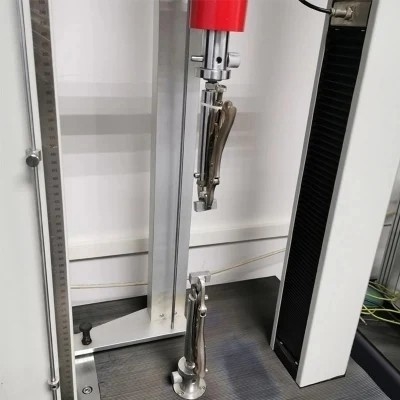

3 sets of grips (GW-G: Pliers grips; GW-O: Leather tear grips; GW-C: Elastomeric grips)
2 die moulds
Lenovo business PC with 17 inch screen, software CD, Canon printer (for computer desk, customer prepared by customers. )
We will held the responsibility for the situation evidenced our fault. Such as short delivery, improper packing and product quality. Other wise, in the circumstances, we are apparently not liable for the damage, that's all right for us to help you lodge the claim against the shipping comapny if you are inconvenient.
Application Industry:
All kinds of materials including leather rubber, plastic, metal, nylon,textile, paper, aviation, packing, architecture, electric appliance, automobile, etc.
Control system:
1, frequency conversion system tensile testing machine: the use of frequency conversion motor control system, stretching, compression speed through the frequency conversion governor control.
2, servo system tensile testing machine: servo motor control system, stretching, compression speed and displacement control is more accurate. The servo motor system is a servo control system with intelligent feedback operation, which can be used for speed test, cycle test, programming test and so on.
3, other driving mode tensile testing machine: through the DC motor control, the driving mode of tensile testing machine due to low cost performance, has been gradually phased out.
Main Technical Parameter: Tensile Test Equipment:
| Max capacity | 5kg,10kg,25kg,50kg,100kg,250kg,500kg,1000kg,2000kg,5000kg(It is optional.) can be setting |
| Induction method : | Precision load cell (sensor) |
| Max. Load Capacity : | 5000kg |
| Force Resolution/Accuracy: | ± 0.5% |
| Accuracy class : | 0.5 |
| Resolution: | 1/1,000,000 |
| Test width: | 400mm(Standard specifications special specifications can be customized) |
| Test stroke : | Max.700 mm( included the fixture) |
| Stroke Resolution: | 0.01mm |
| Speed range: | 0.001-20inches/min |
| Reference Machine Dimension: | 800×530×1600mm (L*W*H) Support Customized |
| Power : | 1 phase 220V 50/60Hz |
| Packing | Standard Export plywood case |
| Force system | servo drives + Servo motor + precision ball screw drive |
| Control system | Mechanical transmission + TM2101 + Pulse Command and Control System control |
| Measurement and Control System | TM2101 and control system; master controller uses the most advanced 32-bit ARM processor in the 21st century, the processing speed of the Pentium-class common computer standards, compared to the traditional 8 yuan SCM control system overall performance greatly improved, faster operation, control accuracy higher |
Obtain data |
The key components are used America's most stable and ultra-precision 24 yuan AD, sampling rate of up to 2000 times / sec, can capture the power of instantaneous change process, the entire file, regardless of the resolution of up to 1,000,000 indexing |
| Displacement Control: | Displacement encoder count with four frequency technology So that the displacement of four times the resolution can up to 0.0005mm |
| Safety devices: | 1. overload, emergency stop device
2. the upper and lower travel limit devices
3. the test is completed automatic shutdown device
|
|
|
ASTM D903, ASTM E8 CNS11888, JIS K6854, PSTC7 ASTM D903,GB/T16491CNS-11888,JIS K6854, PSTC-7 ,ASTM E4,ASTM D828,ASTM D882,ASTM,D1938,ASTM D 412 ,ISO 8339ASTM D3330,ASTM F88,ASTM F904,ISO 37,JIS P8113,QB/T 2358,QB/T 1130 , ISO 527 ,ISO 178 and other standards. |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
