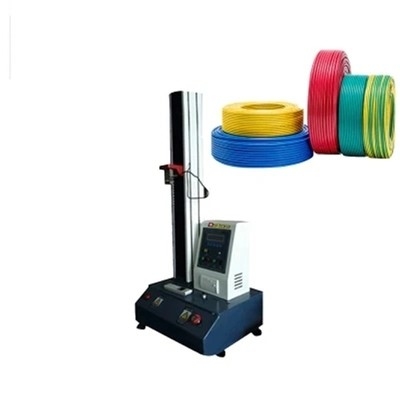

Microcomputer Hydraulic Universal Tensile Testing Machine For Wire And Cable

Microcomputer Hydraulic Universal Tensile Testing Machine For Wire And Cable
Microcomputer Hydraulic Universal Tensile Testing Machine For Wire And Cable Microcomputer Hydraulic Universal Tensile Testing Machine For Wire And Cable

Large Image :  Microcomputer Hydraulic Universal Tensile Testing Machine For Wire And Cable

Product Details:
Place of Origin: Dongguan, China
Brand Name: GSKA
Certification: CE
Model Number: Universal Tensile Testing Machine
Payment & Shipping Terms:
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases.
Delivery Time: 15-20working days after received deposit
Payment Terms: L/C, T/T
Supply Ability: 150 Set / Sets per Month

Microcomputer Hydraulic Universal Tensile Testing Machine For Wire And Cable

Description
Control: Computer Control Induction Method: Precision Load Cell (sensor)
Effective Test Force Range: 0.02/100~100% Origin: Dongguan
Elongation Accuracy: 0.001mm Operation Method: Computer Control
Certification: CE SGS ROHS UL CE Place Of Origin: Dongguan China
High Light:

Tensile Test Equipment

,

Tensile Strength Tester

Microcomputer Hydraulic Universal Tensile Testing Machine For Wire And Cable


Product Overview:

DF61 series hydraulic universal testing system is suitable for high-precision and reliable tensile, compression, flexure and shear tests of high-strength specimens with different shapes and sizes. The test force ranges from 300kN to 2000kN. DF61 series has a high-strength frame and a compact integrated hydraulic station. At the same time, the test system uses high-precision electro-hydraulic servo unit and high-speed digital closed-loop controller to control the hydraulic actuator, which can realize the test of force control, displacement control or strain control.


Product Feature:


1. Advanced chip integration technology, professional design of data acquisition and amplification system, with high integration, stable and reliable, easy to use. Control software can automatically obtain tensile strength, bending strength, yield strength, fracture strength, elastic modulus, elongation and other test data.

2. Control mode : constant speed, positioning, fixed load, constant load growth rate, constant stress, constant stress growth rate, constant strain, constant strain growth rate and other control modes can be selected.

3. Universal testing machine comes with automatic zeroing and test began, the measurement system automatically zero.

4. Automatic shift : according to the size of the load automatically switch to the appropriate range to ensure the accuracy of measurement data.

5. Automatic storage : test data and test conditions are automatically stored to prevent data loss caused by forgetting to save.

6. Batch test : For the same parameters of the sample, a set of tests can be completed in turn.

7. Display mode : data and curves are dynamically displayed with the test process.

8. Curve traversal : after the test is completed, the curve can be re-analysis, with the mouse to find the test curve of each point on the corresponding data.

9. Curve selection : stress-strain, force-displacement, force-time, displacement-time curves can be selected for display and printing.

10, Unit switch : strength unit : ( g, kg, N, lb ), stress unit : ( kg / mm2, N / mm2, Mpa, lbf / in2 )
Position : ( m, mm, in ).

11. The test report : according to user requirements of the format of the test report for programming and printing, and can export EXCEL file.

12. Safety protection : when the maximum load exceeds 2 ~ 10 %, the safety protection is automatically realized.

13. It can automatically detect and calculate the mechanical performance index of the sample, and can also manually intervene in the analysis process According to the requirements of relevant standards, the automatic analysis results can be corrected to improve the accuracy of the data.



Main Technical Parameter:



Load measurement range 0.2%-100%FS
Allowable error limit of test force indication Within ± 1 % of the indication
Test force indication resolution 1/±300000
Measuring range of deformation 0.2%-100%FS
Error limit of deformation indication Within ± 0.50 % of indication
Deformation resolution The maximum deformation of 1 / 60000
Displacement indication error limit Within ± 0.5 % of indication
Displacement resolution 0.05 µ m
Force control rate adjustment range 0.01 ~ 10 % FS / S
Rate control accuracy Within ± 1 % of the set value
Deformation rate adjustment range 0.02 ~ 5 % FS / S
Deformation rate control accuracy Within ± 1 % of the set value
Displacement speed adjustment range 0.5-500mm/min
Displacement rate control accuracy Rate ≥ 0.1 ≤ 50mm / min within ± 0.1 % of the set value
Constant force, constant deformation, constant displacement control range 0.5 % ~ -100 % FS
Constant force, constant deformation, constant displacement control accuracy Set value ≥ 10 % FS, set value within ± 0.1 % ; set value < 10 % FS, within ± 1 % of the set value
Repeated stretching accuracy ±1%
Effective stretch space distance 600mm
Repeated stretching accuracy ±1%
Fixture Customized Injection Handle Push Fixture

Microcomputer Hydraulic Universal Tensile Testing Machine For Wire And Cable 0Microcomputer Hydraulic Universal Tensile Testing Machine For Wire And Cable 1



Customer Support Services:


Ø Installation


Ø Training (Training customer employees)


Ø Calibration


Ø Preventative maintenance


Ø Replacement parts


Ø Assistance via phone or internet


Ø On-site diagnosis and repair/online diagnosis and repair


We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.
