Product Details:
|
| Power Supply Mode: | Removable Battery | SpO2 Accuray: | ±2% |
|---|---|---|---|
| Display: | OLED | Type: | Portable Desktop Pulse Oximeter |
| Voltage: | DC 3.0V | Safety Type: | Interior Battery Bf Type |
| High Light: | DC3.0V Blood Oxygen Finger Monitor,OLED Display Blood Oxygen Finger Monitor |
||

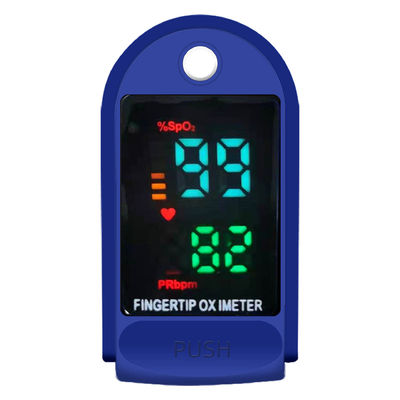

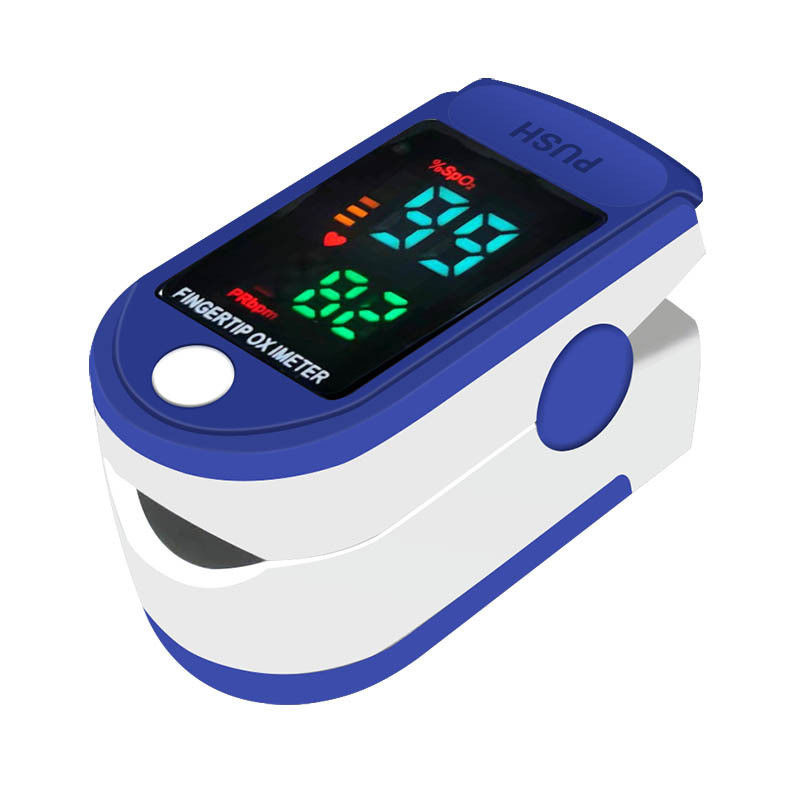

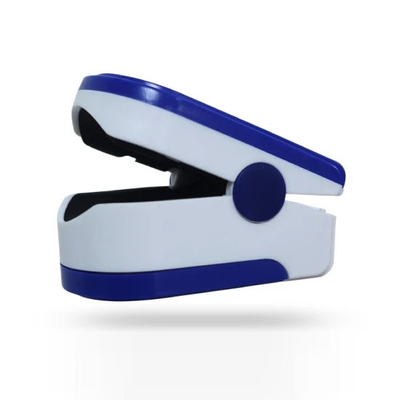

DC3.0V Mini Portable Blood Oxygen Finger Monitor With OLED Display
Product Description
According to medical experts, some patients are found with lower oxygen rate and have difficulty in breathing . Fortunately there is a small device called finger pulse oximeter which can detect the oxygen level in the blood.
The screen of pulse oximeter is TFT with 4 colors, it is very common to find 2 or single color on the market. It could display from 4 directions. Inside the oximeter, there is environmental silicone pad.
To measure our heart beat rate and oxygen level, you just need to clip onto your finger the oximeter, by the way, the fingernail must be upward, so the oximeter will measure accurately.
We could customize the package and the logo on the oximeter as well as the software.
Features:
1. Integrated with SpO2 probe and processing display module
2. Small in volumelight in weight and convenient in carrying
3. Operation of the product is simple, low power consumption
4. SpO2 value display
5. Pulse rate value display, bar graph display
6. Low-voltage indication: Low-voltage indicator appears before working abnormally which is due to low-voltage
7. Automatically power off function: When the device is under the state of measuring interface. It will automatically power off within 5 seconds if the finger falls out of probe
8. Various color of cover can be selected(Yellow, Blue, Light Blue, White, Balck, Pink)
Product Parameters& Main performance
| Display Mode | LED display |
| Saturation Oxygen (SpO2) | Range: SpO2 (36%~99%) |
| Resolution: 1% | |
| Accuracy: ±2% (70%~99%), ≤70% no definition | |
| Pulse Rate(PR) | Range: 30bpm~250bpm, (the resolution is 1bpm) |
| Resolution: 1bpm | |
| Accuracy: ± 1bpm or ± 1% (select larger) | |
| Measurement Performance in Weak Filling Condition | Gets accurate readings even if blood perfusion index is as low as 0.2%. |
| Resistance to Surrounding Light | The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ± 1% |
| Environment | Operating Temperature: 5 ºC to 40 ºC |
| Storage Temperature: -10 ºC to 40 ºC | |
| Operating Humidity: 15%-80% | |
| Storage Humidity: 10%-80% | |
| Atmospheric Pressure: 70kpa-106kpa | |
| Measuring Time | ≤10s |
| Power | Power Supply:1.5V (AAA) alkaline batteries × 2 |
| 20mA~130mA | |
| 20s without any operation | |
| Battery Working Hour | The minimum continually work time is 24 hours. Theoretical number is 56 hours |
| Light Sensor | Red light (Wavelength 662nm ~ 666nm 7mW) |
| Infrared light(Wavelength 890nm~900nm 5.5mW) | |
| Data Update Cycle | No more than 12s |
| Safety Type | Internal power supply, Type BF applied part |
| Product | Product Size: 56.6*33.5*32.5 mm |
| Net Wight: 30g(excluding batteries) | |
| Unit Package: 87*60*50(mm) | |
| Carton | Carton Size: 370*330*290mm |
| QTY/Carton: 100pcs | |
| G.W./Carton: 6.5KG |
It is applicable for home healthcare, hospital (including internal medicine, surgery, anesthetic, intensive care etc), oxygen bar, community medical center. And it is also ideal for measuring your oxygen saturation level before or after sports activities such as mountain climbing, running, biking and monitoring the health of individuals with certain types of condition that can affect blood oxygen levels.
Soft adaptive finger chamber accommodates most finger sizes for adults and children ages 2 years and up, one-button design ensures easy operation, and the oximeter automatically turns off after 20 seconds without any operation to save battery power.
