Product Details:
|
| Weight: | About 50g (with The Batteries) | Type: | Pulse Oximeter |
|---|---|---|---|
| Material: | Plastic | Transport Humidity: | 10%-95% (no Condensation) |
| Product Name: | Pulse Oximeter | Power Supply: | Dry Batteries |
| High Light: | Fingertip Medical Pulse Oximeter,OEM Medical Pulse Oximeter |
||

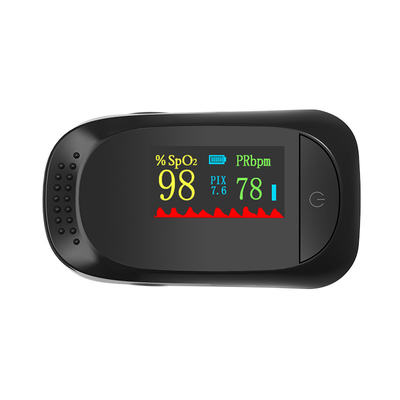

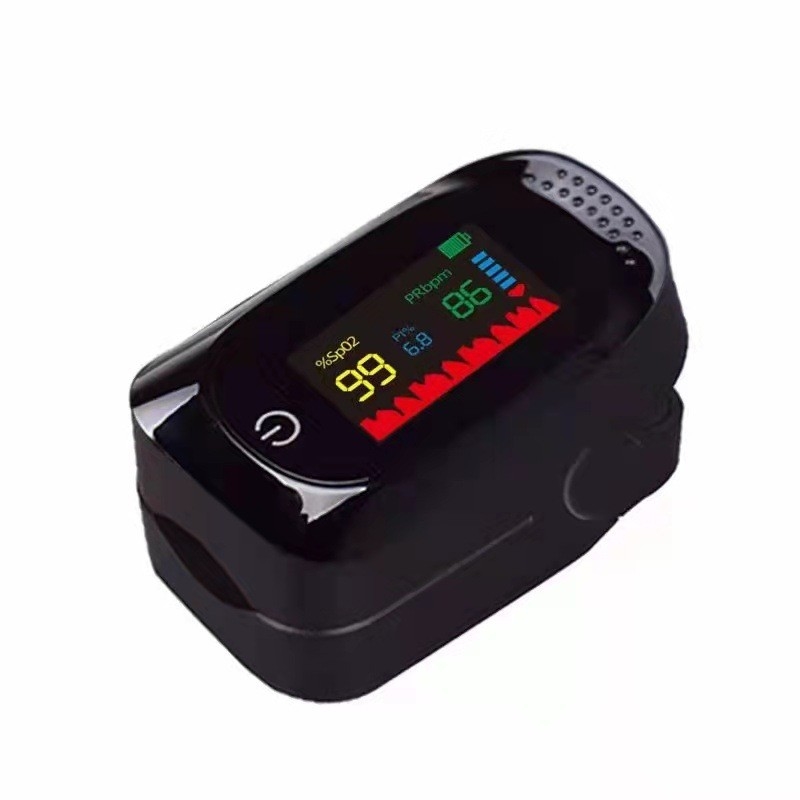

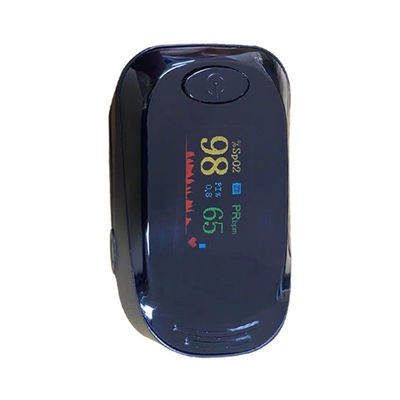

OEM Portable Home Use Fingertip Medical Pulse Oximeter
Products Description
1. 1.5 inch Red LED Display,the largest LED display of fingertip oximeter,large numeric font.
2. User-friendly Horizontal Screen Design
3. With SpO2,PR and PI parameters.
4. With Menu,can setup brightness and alarm limits
5. Three grades brightness adjustment
6. Standard Accessories: 1 lanyard, 1 manual.
Specifications
This Pulse Oximeter adopts Photoelectric Oxyhemoglobin Inspection Technology integrated with Capacity Pulse Scanning & Recording Technology, which can be used to measure human oxygen saturation and pulse rate through finger. The device is suitable for use in family, hospital, oxygen bar, community healthcare and physical care in sports, etc. (It can be used before or after exercise, but not recommended to use during exercising)
Technical parameters
| Display Screen | 0.96" Dual color OLED or TFT or LED display |
| Screen Resolution : | 128*64 |
| SpO2 Measuring Range : | 0%~100%, (the resolution is 1%). |
| Accuracy : | 70%~100%: ±2%,Below 70% unspecified. |
| PR Measuring Range : | 30bpm~250bpm, (the resolution is 1bpm) |
| Accuracy : | ±2bpm or ±2% (select larger) |
| Measurement Performance in Weak Filling Condition : | SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%.SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2% |
| (select larger). | |
| Resistance to surrounding light : | The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less |
| than ±1%. | |
| Power Consumption : | less than 80mA |
| Voltage : | DC 2.6V~3.6V |
| Dimension: | 61.8mm×33.1mm×26.3mm |
| Operation Temperature | 5ºC~40ºC |
| Storage Temperature: | -10ºC~40ºC |
| Ambient Humidity | 15%~80% on operation |
| Air Pressure: | 86kPa~106kPa |
| Declaration | EMC of this product complies with IEC60601-1-2 standard. |
| Packing detail: | Carton size: 30.5*27.5*22.3mm |
| Quantity: 100PCS/CTN | |
| Weight: 4.5KG/CTN |
Major Features
1) SpO2 value display
2) Pulse rate value display, bar graph display
3) Pulse waveform display
4) PI value display
5) The display mode can be changed
6) Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage
7) Pulse sound indication and over limit indication
If you have any question about Factory Stock in best price oximetro for children adult OEM fingertip free pulse oximeter, please kindly contact with us,thank you.
