Product Details:
|
| Material: | Plastic | Pulse Rate: | 30~240 Bpm |
|---|---|---|---|
| Power Supply Mode: | Removable Battery | Product Name: | Digital Fingertip Pulse Oximeter |
| Parameter: | SPO2, Pulse Rate | Type: | Blood Testing Equipments |
| High Light: | AAA Batteries Powered Fingertip Pulse Oximeter,RoHS Fingertip Pulse Oximeter |
||

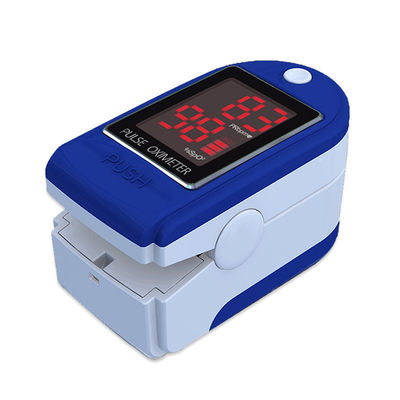

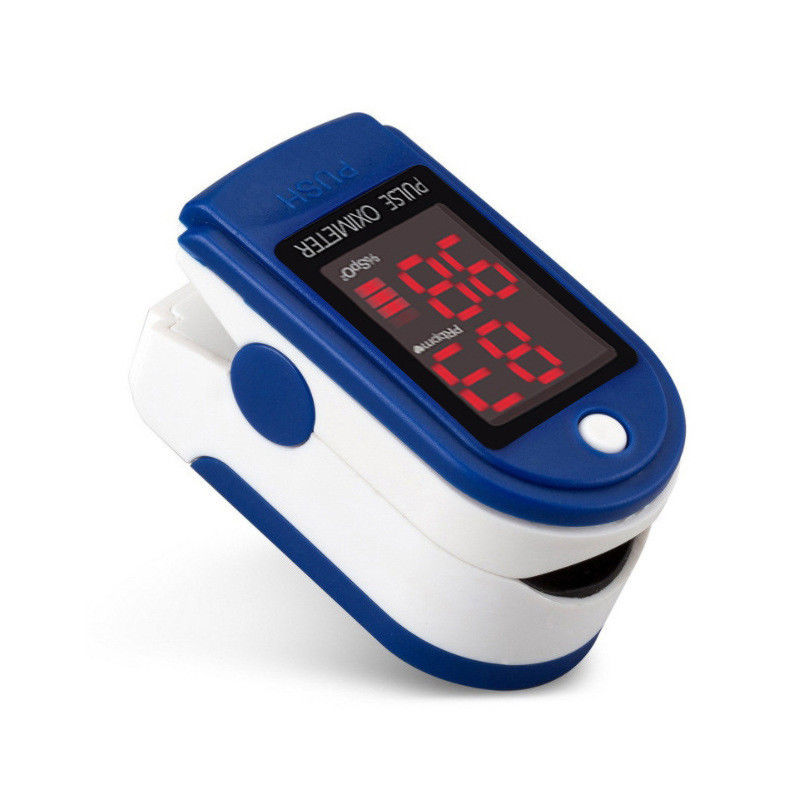

The medic uses a AAA battery-powered fingertip pulse oximeter
CMS50D2 Pulse Oximeter is a non-invasive device intended for the spot-check of oxygen saturation of arterial hemoglobin (SpO2) and the pulse rate of adult and pediatric patients in home and hospital environments (including clinical use in internist/surgery, anesthesia, intensive care ect.). This device is not intended for continuous monitoring.
Major Features
1) SpO2 value display
2) Pulse rate value display, bar graph display
3) Pulse waveform display
4) PI value display
5) The display mode can be changed
6) Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage
7) Pulse sound indication and over limit indication
Main performance
1. Display Mode:0.96" Dual-color OLED display(blue and yellow)
2. Screen Resolution:128*64
3. SpO2 Measuring Range:0%~100%, (the resolution is 1%).
Accuracy:70%~100%:±2% ,Below 70% unspecified.
4. PR Measuring Range:30 bpm~250 bpm, (the resolution is 1 bpm)
Accuracy:±2 bpm or ±2% (select larger)
5. PI Measuring Range: 0 %~ 20%
Accuracy:When the PI measure range is 1%~20%,the permission of absolute error is ±1%
When the PI measure range is 0%~0.9%,the permission of absolute error is ±0.2%
6. Measurement Performance in Weak Filling Condition:SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).
7. Resistance to surrounding light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%
8. Power Consumption:less than 80 mA
9. Voltage: DC 2.6 V - 3.6 V

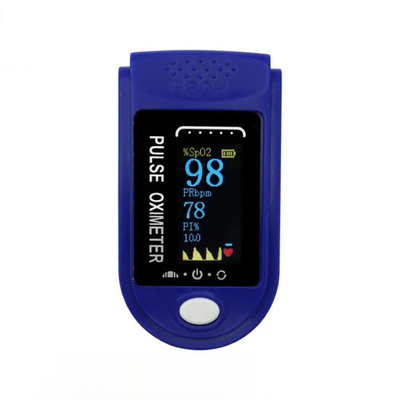

The medic uses a AAA battery-powered fingertip pulse oximeter
| Performance | CMS50DL1 | CMS50DL2 | CMS50D1 | CMS50D2 |
| Display Mode | LED display | 0.96" Dual-color OLED display | ||
| (blue and yellow) | ||||
| Power Supply | 1.5V (AAA size) alkaline batteries * 2 | |||
| Power Consumption | less than 25mA | less than 30mA | less than 80 mA | |
| Dimension | 61(L) mm * 36(W) mm * 32(H) mm | 60(L) * 30.5(W) * 32.5 (H) mm | 61(L) * 36(W) * 32(H) mm | 60(L) * 30.5(W) * 32.5 (H) mm |
| Weight | About 60g (with the batteries) | About 50g (with the batteries)) | About 60g (with the batteries) | About 50g (with the batteries) |
