Product Details:
|
| Name: | Finger / Fingertip Pulse Oximeter | SpO2 Measuring Accuracy: | 70-100%;±2%,≤70% Unspecified |
|---|---|---|---|
| Material: | Plastic | Power Source: | Battery |
| Display: | OLED Display | Screen Information: | Lcd Color Display |
| High Light: | Fingertip Pulse Oximeter With OLED Display,DC2.6V Fingertip Pulse Oximeter |
||

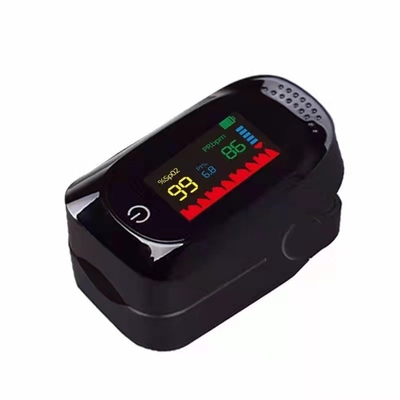

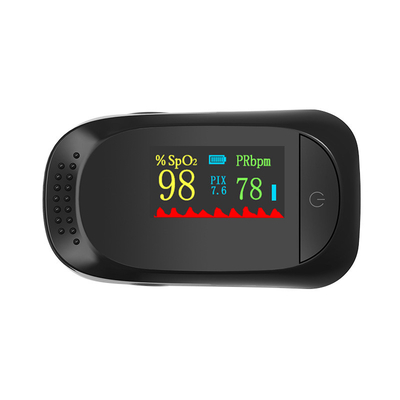

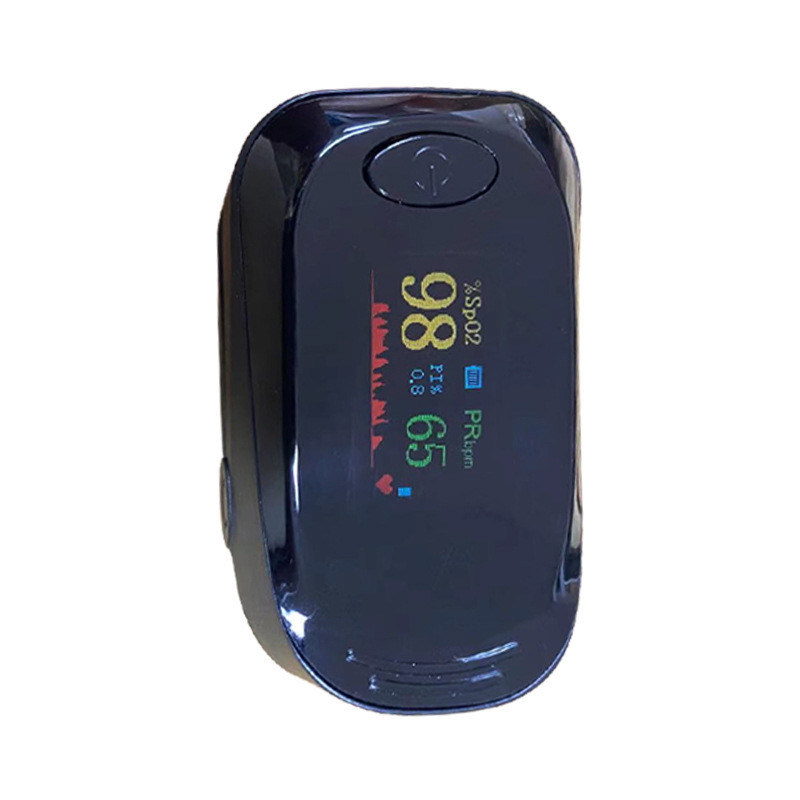

DC2.6V - 3.6V Intelligent Fingertip Pulse Oximeter With OLED Display
Features:
1) Support SpO2 and pulse rate display function
2) Support bar graph display function
3) Support low battery reminder function
4) Support automatic shutdown function
5) Support two-direction screen display function
This Pulse Oximeter adopts Photoelectric Oxyhemoglobin Inspection Technology integrated with Capacity Pulse Scanning & Recording Technology, which can be used to measure human oxygen saturation and pulse rate through finger. The device is suitable for use in family, hospital, oxygen bar, community healthcare and physical care in sports, etc. (It can be used before or after exercise, but not recommended to use during exercising)
Specification:
| Description | Healthcare Fingertip Pulse Oximeter for SPO2 and pulse rate |
| Display Mode | color display |
| Screen Resolution | 128*64 |
| SpO2 Measuring Range | 0%~100%(the resolution is 1%) |
| Accuracy | 70%~100%: ± 2%, Below 70% unspecified |
| PR Measuring Range | 30bpm~250bpm, (the resolution is 1bpm) |
| Accuracy | ± 2bpm or ± 2% (select larger) |
| Model | 301 |
| Resistance to surrounding light | The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ± 1%. |
| Power Consumption | Less than 80mA |
| Voltage | DC 2.6V~3.6V |
| Power Supply: | 1.5V (AAA size) alkaline batteries × 2 |
| Battery workingu hour | The theoretical number is 32 hours. |
| Safety Type | Interior Battery, BF Type |
| Measurement Performance in Weak Filling Condition | SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ± 4%, pulse rate error is ± 2 bpm or ± 2% (select larger). |
| Certificate | CE/ISO |
Finger Pulse Oximeter
Oxygenated blood absorbs light preferentially at 940nm (near infra-red light),whereas deoxygenated blood absorbs light preferentially at 660nm(red light),A pulse oximeter works by passing a beam of red and infra-red light through a pulsating capillary bed and then measures the amount of red and infra-red light emerging from the tissues via a sensor.The relative bsorption of light by oxyhemoglobin(HbO)and deoxyhemoglobin is then processed according to the Beer-Lambert's law and the oxygen saturation level(SpO2)determined .For sPORTS OR aVIATION USE.
If you have any question about Factory Stock in best price oximetro for children adult OEM fingertip free pulse oximeter, please kindly contact with us,thank you.
