Product Details:
|
| Warranty: | 1 Year | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Model Number: | GSA-362E | Xenon Lamp: | 6.5 KW Water-Cooled Long Arc Xenon Lamp |
| Lamp Life: | 2000 Hours | Dimension: | 1220x1200x2050 Mm WDH |
| Xenon Lamp Spectral Wavelength: | Optional 300-800nm | Adjustable Range Of Irradiance: | 30W/M2-150W/M2 |
| Highlight: | Aging Test Chamber,Climate Test Chamber |
||

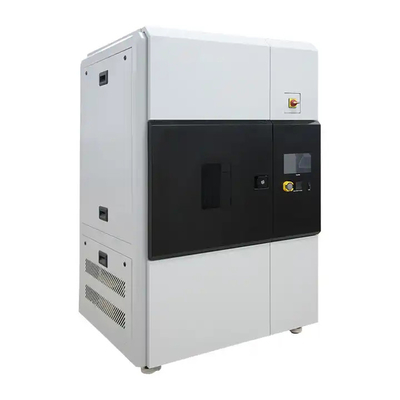

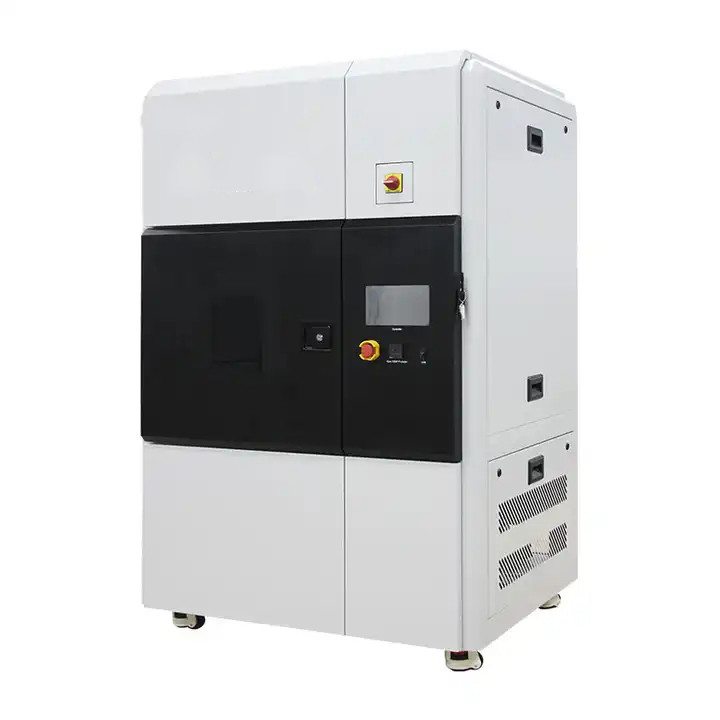

Climate Aging Test Chamber Weathering Resistance Xenon Accelerated Climate Chamber
product presentation:

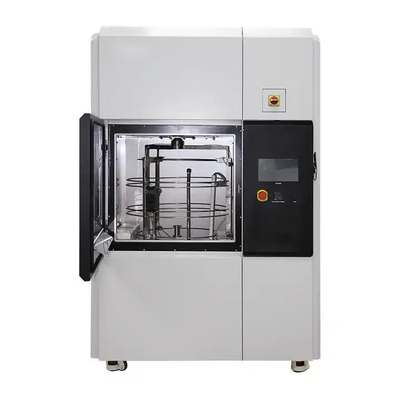

The GSA-362E climate aging test chamber is a rotating xenon accelerated climate chamber that meets the requirements of all domestic and international testing standards. Adopting a 6.5KW high-power precision water-cooled xenon lamp, the irradiation area reaches 6500cm2. Using xenon light sources and filters imported from the United States to simulate full spectrum sunlight more realistically. The stable light source ensures the comparability and reproducibility of test data. Exposure area up to 6500cm2, capable of simultaneously exposing 63 to 65 150mm × 70mm standard sample. Automatically rotate the three-layer drum shaped sample holder to ensure consistent testing conditions for all exposed samples
|
Model
|
GSA-362E
|
|||
|
Light Source
|
One 6.5 KW water-cooled long arc xenon lamp
|
|||
|
Lamp life
|
2000 hours
|
|||
|
Filter
|
Original ATLAS filter; fully simulates the indoor or outdoor solar spectrum
|
|||
|
Effective Exposure Area
|
6500 cm2 (63～65 pieces of standard samples of 150mm×70mm can be exposed to the sun at a time)
|
|||
|
Irradiance Monitoring Point
|
340nm,420nm,300nm～400nm,300nm～800nm
|
|||
|
Operation Room Temperature Adjustable Range
|
Chamber Temperature~70℃ (dark)
|
|||
|
Black Panel/Black Scale Temperature Adjustable Range
|
BPT:Chamber Temperature~110℃；BST:Chamber Temperature~120℃
|
|||
|
Temperature Fluctuation
|
±1℃
|
|||
|
Temperature Uniformity
|
≤2℃
|
|||
|
Temperature Deviation
|
≤±1℃
|
|||
|
Humidity Range
|
Light: 10%-75% No light: 10%-95%
|
|||
|
Sample Rotating Speed
|
1r/min (around the center of the lamp)
|
|||
|
Water Spray Cycle
|
Spray duration and spray cycle can be set arbitrarily
|
|||
|
Water Source
|
High purity deionized water, conductivity <2us/cm
|
|||
|
Mains Power
|
AC380V±10%, three-phase four-wire 50Hz; maximum current 50A, maximum power 9.5KW
|
|||
|
Pure Water Flow
|
Humidification: 0.2L/min; sample spray (front spray): 0.2L/min; sample rack spray (back spray): 0.2L/min
|
|||
|
External Dimensions
|
1220mm×1200mm×2050mm(length x width x height)
|
|||
