Product Details:
|
| Product Name: | Climate Test Chamber | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Model Number: | GSA-3012Z | Quality Certification: | Ce |
| Application: | Aviation, Aerospace, Information, Electronics, Instrumentation | Temp.humi. Fluctuation: | ±0.2℃,±0.5%RH |
| Interior Chamber Material: | SUS#304 Stainless Steel | Heating System: | SUS#Stainless Steel High-speed Heater |
| Highlight: | Temperature Cycle Test Chamber,Temperature And Humidity Chamber |
||

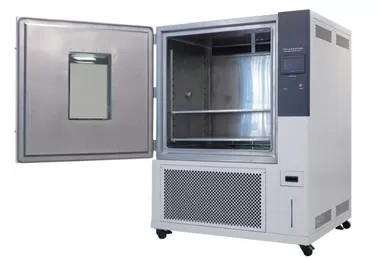

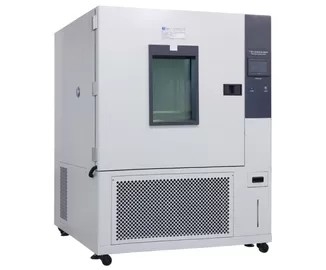

High And Low Temperature Cycle Climate Test Chamber Is Used For Battery Testing
product presentation:
High and low temperature circulation climate test chamber humidity control -70 ~ +150℃, widely used in aviation, aerospace, information, electronics, instruments and other industries, for electrical products, materials, parts, equipment and other accelerated heat and humidity test. Humidity and heat test chamber and constant temperature and humidity test chamber are used to evaluate the performance of samples under given environmental conditions.
Specifications:
| Model | GSA-3012Z | GSA-3013Z | GSA-3014Z | GSA-3015Z | ||
| Inner chamber size w×h×d(cm) | 40×50×40 | 50×60×50 | 50×75×60 | 60×85×80 | ||
| Exterior chamber size w×h×d(cm) | 90×140×95 | 100×150×105 | 100×165×115 | 110×175×135 | ||
| Testing temperature range | -73℃ ,-60℃,-40℃,-20℃,0℃~150℃,180℃ | |||||
| Testing humidity range | 20%RH~98%RH(10%RH~98%RH Or 5%RH~98%RH) | |||||
| Performance |
Temp.humi. fluctuation |
±0.2℃,±0.5%RH | ||||
|
Temp.humi. uniformity |
±1.5℃;±2.5%RH(RH≤75%),±4%(RH>75%)empty load,after stabilization | |||||
|
Temp.humi. resolution |
0.01℃;0.1%RH | |||||
| Heating-up time | ℃ | 10 0 15 0 | ||||
| min | 30 40 | 30 40 | 30 45 | 30 45 | ||
| Cooling-drow time | ℃ | 0 -20 -40 -60 -70 | ||||
| min | 25 40 50 70 80 | |||||
| Material | Exterior chamber material | Stainless steel+Powder coating | ||||
| Interior chamber material | SUS#304 Stainless steel | |||||
| Insulation material | PU fiberglass wool | |||||
| System | Air circulation system | Cooling fan | ||||
| Heating system | SUS#Stainless steel high-speed heater | |||||
| Humidification system | Surface evaporation system | |||||
| Refrigeration system | Imported tecumseh compressor+fin type evaporator+air(water)cooling system | |||||
| Dehumidifying system | ADP critical dew point cooling/dehumidifying method | |||||
| Controlling system | Digital electronic indicator+SSR+PID | |||||
| Other components | Multi-layer vacuum glass observation window,cable port(50mm),controlling status indicator lamp,chamber light,specimenloading shelf(2pcs,position adjustable) | |||||
| Safety protection device | Over-heat protection circuit breaker,compressor overload protection,control system overload protection,humidifying system overload protection indicator lamp | |||||
| Power supply | AC 1 phase 220V;3 phase 380V 60/50Hz | |||||
| Customization service | Non-standard or special requirements are all welcome | |||||
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE
maintenance,while considering of sea transportation, we can extend 2 months for our customers.
