Product Details:
|
| Application: | PFE Test,BFE Reference | Particle Size: | 0.3um,0.5um,0.7um,1.0um,2.5um,5.0um |
|---|---|---|---|
| Brand: | GSKA | Keyword: | Medical Lab Testing Equipment |
| Function: | Meltblown Or Mask Filtration Efficiency Test | Power: | Electronic |
| Place Of Origin: | Dongguan China | Brand Name: | GSKA |
| Highlight: | Lab Testing Equipment |
||

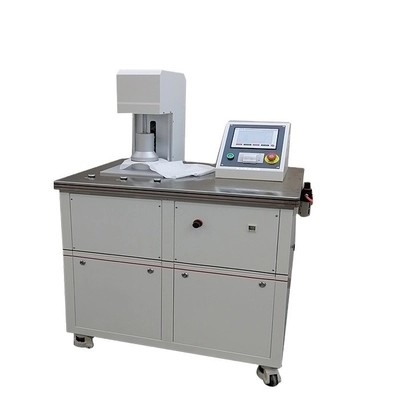

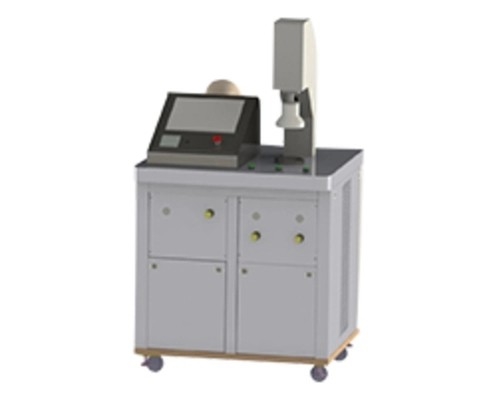

1KW 0.3-5um Medical Lab Testing Equipment For Particle Filtration Efficiency OEM
This device is composed of oil mist generator, data acquisition software, product detection tooling device, concentration detector, filtered concentration detector, computer data calculation device, pressure regulating device and tooling pipeline test auxiliary device, etc.
1. Flow range: (30~100) L/min, accuracy 2%
2. Filtration efficiency: (0.001~99.999)%
3. Resistance: 0~2000Pa, accuracy 2%
4. Test area: 100cm²
5. Aerosol: Sodium chloride (DOP, DEHS, optional)
6. Aerosol concentration: (12~20) mg/m³ (salinity),
7. Test mode: filtration efficiency of filter material
8. Test temperature: (25±5)℃
9. Relative humidity: (30±10)%
10. Overall dimensions: 950×600×1900mm
11. Weight: 130kg
12. Power source: AC220V 50Hz
13. Air source: flow 198L/min (0.6Mpa) at 550kPa
| Test flow range | 15 ~ 100L / Min (standard 32L / Min) |
| Test sample | 100cm2, can be equipped with multi-specification fixtures (flat masks, 3D masks) |
| Resistance testing | Mesure range 0 ~ 1000Pa |
| Accuracy 0.1Pa | |
| Efficiency testing | Measure range 40% -99.999% |
| Particle size 0.3μm | |
| Test particle size | 0.3μm |
| Fog dust source | NaCl, DEHS |
| Test time | Single test resistance: 5S |
| Efficiency and resistance simultaneous testing: 70s | |
| Power | 220V, 50Hz, 1KW |
| Gas source | 0.5MPa, 120L / Min |
Standard:
GB/T 5453, GB/T 13764, ISO 9237, ISO 7231, ISO 5636, BS 5636, ASTM D737
DIN 53887, JIS L1096
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
