Product Details:
|
| Product Name: | Climatic Aging Test Chamber | Place Of Origin: | Donggaun,china |
|---|---|---|---|
| Model Number: | GSA-2014B | Temperature Range: | -20℃ ~+140℃ Temperature Optional |
| Inner Case Material: | Stainless Steel | Weight: | 150kg |
| Power Supply: | AC220V/AC380V | Temperature Fluctuation Degree: | ±0.5℃ |
| Highlight: | Aging Test Chamber,Climate Test Chamber |
||

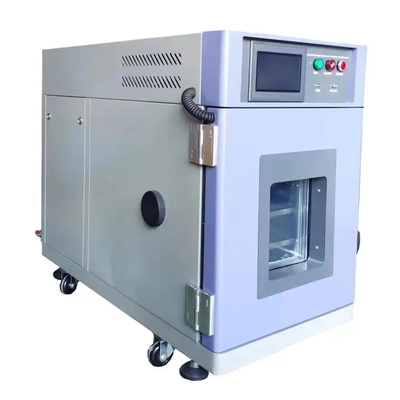

Small Climatic Aging Test Chamber -20℃ ~+140℃ For Plastic Material Testing
product presentation:
Small climate aging test chamber, also known as small environmental test chamber, is a small volume of artificial climate chamber, mainly used
for small-scale accelerated product aging test and environmental adaptability evaluation.
The main features of the GSA-2014B small climate aging test chamber are as follows:
The small volume, usually 0.3-2 cubic meters, can be placed on a common laboratory table, without the need for a special laboratory room.
The controllable temperature and humidity range is wide, the temperature range is generally -20~+140°C, the humidity range is 20-
98%RH,suitable for most product environmental tests.
Adopt compressor refrigeration system, stable and reliable work, high precision. Temperature and humidity control accuracy can reach ±2.5%RH.
Equipped with a digital temperature and humidity display controller or controller, complex change curves can be edited to achieve a more precise
temperature and humidity control.
Lighting system with different wavelength and illumination can be selected to simulate the lighting environment.

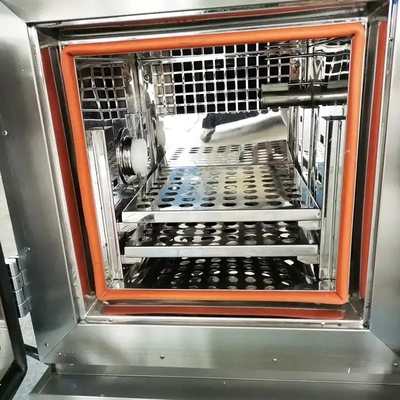

Stainless steel or plastic expansion lining, internal structure compact, uniform temperature distribution.

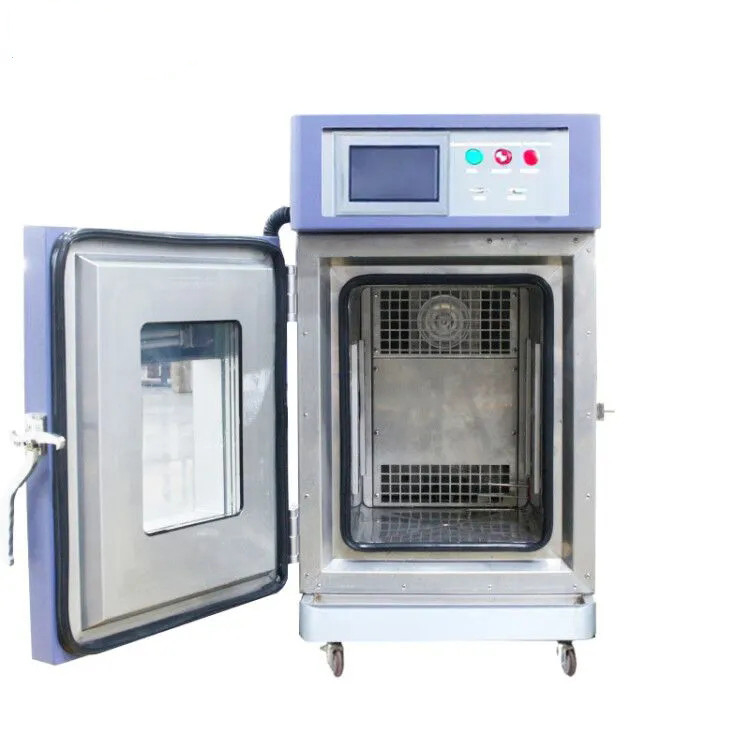

There are observation window and sample outlet, easy to operate and monitor the sample.
Optional CO2, ozone and other gas supply control system, to achieve the simulation of atmosphere environment.
Low price, small size, easy to use, suitable for small and medium-sized enterprises for product development and quality control.
Small climate aging test chamber is widely used in electronic, food, medicine, chemical and other industries of new product research and
development, quality evaluation and quality control, to provide technical means for product development cycle and input cost reduction.
|
Power(KW)
|
4.5
|
|
Weight(KG)
|
150
|
|
Humidity uniformity
|
±3.0%R.H
|
|
Standard accessories
|
Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m
|
|
Safety device (standard)
|
No fuse breaker, over pressureover heat and over current protection for compressor,
|
|
Over temp. protect, over load protect of blower, dry heat protection
|
|
|
Control System
|
Balanced Temperature & Humidity Control System
|
|
Refrigeration system
|
Air Cooled
|
|
Hermetic compressor,Single stage refrigeration system
|
|
|
CFC-Free refrigerant(HFC-507/HFC-23)
|
|
|
Controller
|
Panel:7-inch LCD Touch panel, Chinese or English display selectable
|
|
Operation model :Program or fix point running
|
|
|
Memory capacity :120programs,1200steps,
|
|
|
All repeat 999 cycles, part repeat 99 cycles
|
|
|
Humidity Range
|
20~98%R.H
|
|
Temp. constancy
|
±0.5ºC
|
|
Humidity constancy
|
±2.5%R.H
|
|
Temp. uniformity
|
±2.0ºC
|
|
Interior material
|
Stainless Steel Plate(SUS 304)
|
|
Exterior material
|
Baked Painting Steel Or Stainless steel(SUS304)
|
|
Insulation material
|
Rigid polyurethane Foam and Glass Fiber Wool
|
|
Ambient Temp.
|
+5ºC~+35ºC
|
|
Wiring method
|
AC 380±10%50Hz ,3 phase 4 wires +Ground Wires
|
FAQ:
1. Are a manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
-Yes, we are manufacturer of Programmable Environmental Temperature Humidity Stability Climatic Test Chamber Price. Every machine from our factory has a 12 months product warranty.If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
-If there is no stock, normally, the delivery time is 15-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
-Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine
4. what about the products' quality?
-Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency.
5.what about the packing of equipment?
-We use Standard Export Plywood Case to Protect it from rust during the long time shipping with the plastic film and protect its corners with the foam.
