Product Details:
|
| Warranty: | 1 Year | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Power: | Electronic | Heating Time: | 3 Centigrade / Min Can Reach 10 Centigrade / Minute. |
| Work Environment: | +5℃~+35℃ | Temperature Fluctuation: | ±0.5℃ |
| Cooling Time: | 1 Centigrade / Min Can Reach 5 Centigrade / Minute. | Humidity Fluctuation: | ±5% R.H. (damp Heat Only) |
| Highlight: | Walk In Climate Chamber,Temperature Test Chamber |
||

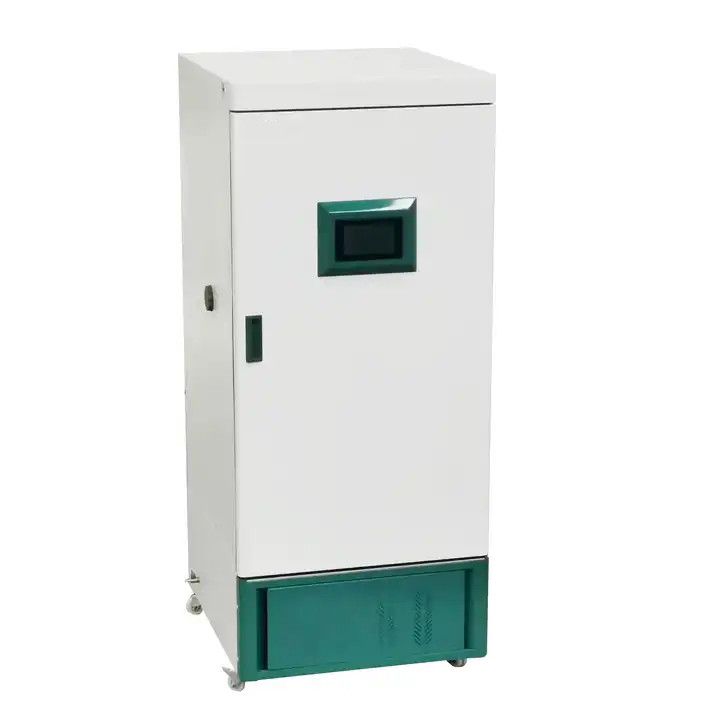

Programmable Stability Climate Chamber Inner Chamber Size 600*500*840mm
product presentation:

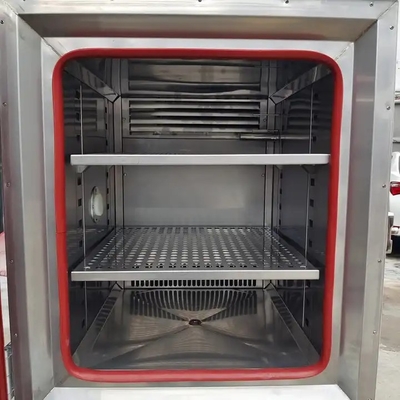

Features 1. High texture appearance. The body is arc shaped, the surface is treated with fog lines, and the flat non reactive handle is used, which is easy to operate, safe and reliable. 2. The rectangular laminated glass viewing window can be used for observation of test products. The window is equipped with anti sweat electric heating device to prevent condensation water drops, and is equipped with a high brightness Pl fluorescent lamp to keep lighting in the box. 3. A series of holes can be used to connect to the test power or signal cables and adjustable storage trays. The double layer isolation door is tightly sealed, which can effectively isolate internal temperature leakage. 4. Equipped with an external water supply system, it is convenient to supplement the humidifier bucket with water supply and automatically circulate. The compressor circulation system adopts the French "Taikang" brand, which can effectively remove the lubricating oil between the condenser tube and the capillary. The entire series adopts United Xing Environmental Refrigerant (R404L) 6 from the United States, and the controller adopts an original imported 7-inch touch screen, which can display both measured and set values simultaneously. The temperature and humidity testing conditions can be operated through programming. The test data can be directly exported through USB, with a maximum recording time of 3 months. Built in movable pulleys, easy to move and place, and equipped with powerful positioning screws to secure the position. Applicable scope: Used to test the performance of materials in various environments, as well as their heat resistance, cold resistance, dryness, and moisture resistance. Suitable for quality testing of products such as electronics, appliances, mobile phones, communication, instruments, whole vehicles, plastic products, metals, food, chemical, building materials, medical, aerospace, etc.
| Product | 750L LED illumination Climate Test Chamber For Lab |
| Model | GSA-687Z |
| Chamber Volume(L) | 750 |
| Temp. Control Range | With illumination: 10oC~ 50oC. Without illumination: 5C~ 50oC |
| Temperature Accuracy | ±0.1oC at 37oC |
| Temperature Fluctuation | ±0.5oC |
| Temperature Uniformity | ±2oC at 37oC |
| Temperature Controller | PID microprocessor control, soft touch, LED display |
| Temperature Sensor | PT100 |
| Timer | Power-on, power off and working. Timing range: 1min-2970hr |
| Chamber Material | 304 stainless steel |
| Housing Material | Steel (powder coating) |
| Humidity Range | RH50%-90% |
| Humidity Accuracy | ±0.3% |
| Humidity Fluctuation | ±5% |
| Humidity Controller | PID microprocessor control, soft touch, LED display |
| Humidity Sensor | Capacitor type |
| Illumination | 0-20000Lux (LED) |
| Chamber Size | 850x800x1100(WxDxH,mm) |
| External Dimensions | 1000×1150×1980(WxDxH,mm) |
| Net Weight(Kg) | 265 |
| Consumption Power(W) | 3060 |
| Shelf Size(mm) | 784×780 |
| Shelf Qty (Std./Max.) | 3/17 |
| Power Supply | 220V/50Hz (Optional: 220V/60Hz, 110V/60Hz) |
