Product Details:
|
| Power Supply: | AC220V 50Hz | Low Speed Gear: | Autorotation 140±2rpm Revolution 62±2rpm |
|---|---|---|---|
| Speed: | 1mm/Min | Width Of Mixing Blade: | 135mm |
| Total Weight Of Vibration Part: | 20kg±0.5kg | Power: | 0.75kW |
| Dial Gauge: | 0~10mm | Place Of Origin: | Made In China |
| High Light: | Cement Mortar Mixer |
||

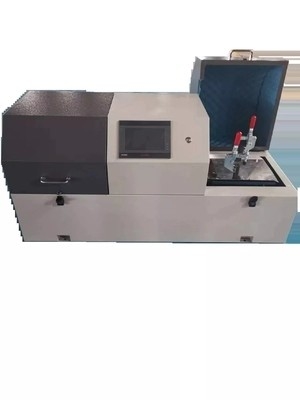

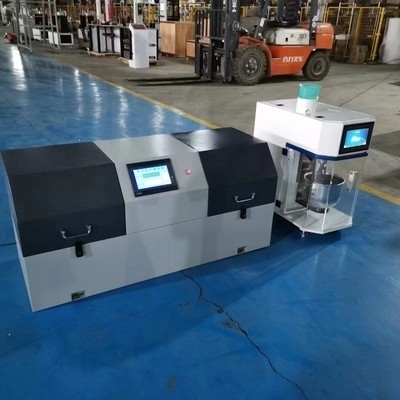

Cement Mortar Shaking Table , Cement Mortar Strength Tester
Product introduction:
GSKA-20H cement cement sand vibrating table is designed for testing the strength of cement cement sand and adopting ISO679 guo standard. The instrument conforms to the standard requirements of JC/T682, GB/T17671,IS0679 "Cement cement sand test forming vibrating table", which is used for the special equipment of cement strength inspection.
technical requirements:
1, vibration platform amplitude: 15.0mm+0.3mm
2. Vibration time of 60 times: 60s soil 2s
3. The total mass of the table plate (including arm rod, die sleeve and fixture) is 13.75kg+0.25kg, and the measured data is marked on the side of the table plate
4. The total mass of the two arms and their cross ribs: 2.25kg+0.25kg
5, the distance from the center of the table to the center of the arm shaft: 800mm+1mm
6, when the head is on the stop, the table surface is horizontal, the height of any corner of the four corners and its average height difference is not more than 1mm
7. The working face of the protruding head is spherical, and the contact with the stop is point contact
8, protruding head and stop by Rockwell hardness > Made of 55HRC fully hardened steel
9, the CAM is supported by Rockwell hardness V40HRC steel 10, the clamp and the mold sleeve is integrated, the mold sleeve can press the test mold and align with the inside of the test mold
11, the controller and the counter are sensitive and reliable, can control the vibration table after 60 vibration automatically stop
12, the whole machine insulation resistance > 2.5 M Ω
13, the arm rod shaft rotation without the phenomenon of kuang
14. After the vibration platform is started, there is no swing phenomenon in the rising process and the moment of impact, and the transmission part runs normally
15. Center distance of base bolt holes of vibrating platform
16. The paint surface of the external surface of the vibrating table is smooth, smooth, uniform and the color is consistent. Parts processing surface without scratches and rust
specification:
| Model Number | GSKA-20H |
|
Power
|
90W |
| Total mass of the table | 13.75kg±0.25kg |
| Total weight of vibration part | 20kg±0.5kg |
| Amplitude (falling distance) | 15mm±0.3mm |
| Time for 60 vibrations | 60S ± 2S |
| Center distance | 800mm |
| motor speed | 60 rpm |
| Power Supply | AC220V 50Hz |
| Overall dimensions | (124x52x80)cm |
| Net weight | about 90kg |
