Product Details:
|
Transport Package: | Standard Export Safety Packing | Induction Method: | Precision Load Cell (sensor) |
---|---|---|---|
Effective Test Force Range: | 0.02/100~100% | Testing Stroke: | 800mm Or 1000mm |
Elongation Accuracy: | 0.001mm | Operation Method: | Computer Control |
Warranty: | 1 Year | Place Of Origin: | Dongguan China |
High Light: | Tensile Test Equipment,Tensile Strength Tester |

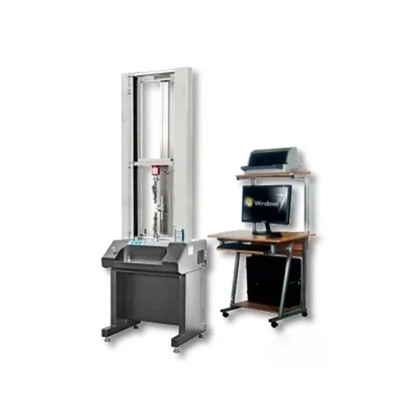

Microcomputer Servo Extensor Universal Tensile Testing Machine OEM
Brief introduction:
This machine is used to test tension, compression, bend, shearing force, adhesion, peeling force, tear strength, etc. of specimen, semi-product and finished product in the field of rubber, plastic, metal, nylon, fabric, paper, aviation, packing, architecture, electric appliance, automobile, etc., which are the basic facilities for input quality control, physical inspection, material research.
This machine is suitable for test all material .can change all grips.
Measuring principle:
1, tensile testing machine force value measurement is through the force sensor, amplifier and data disposal system to complete the measurement. It is known from the data mechanics that under the premise of small deformation, the strain ε at a certain point of an elastic element is proportional to the force on the elastic element, and also proportional to the elastic component. Taking the sensor of S-type testing machine as an example, when the sensor is subjected to the effect of tension P, the strain gauge is pasted on the surface of the elastic element, and since the strain of the elastic element is in direct proportion to the size of the external force P, the strain gauge is connected to the measuring circuit to measure the output voltage and then the size of the force.
2, the deformation measurement through the deformation measurement installation to measure, it is used to measure the deformation of the sample in the process of the experiment. The installation has two collets, which are connected to a photoelectric encoder mounted on the top of the measuring installation through a series of biographies. When the interval between the two collets switches, the shaft of the photoelectric encoder is driven to twist, and the photoelectric encoder will have a pulse signal output. Then the signal is processed by the processor and the deformation of the sample can be obtained.
3. The measurement of beam displacement is roughly the same as the deformation measurement, which is to obtain the displacement of the beam by measuring the output pulse number of the photoelectric encoder
Main Technical Parameter:
Model | GSKA-011A1 Computer system universal testing machine |
Test speed: | 0~500mm/min |
Max. load: | 2000kg |
Unit: | kg, N, Ib switchable |
Counter: | LCD display |
Motor: | AC serve motor |
Sample rate: | 16times/sec. |
Speed resolution: | 0.003mm |
Stroke: | 1000mm(exclude the grips) |
Voltage: | AC220V |
Dimension: | 81*48*230cm |
N.W.: | 210kg |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
