Product Details:
|
| Application: | Suitable For Non-metallic Materials | Humidityrange: | More Than 90%R.H. |
|---|---|---|---|
| Humidity Range: | ≥75%RH | Power: | Electronic |
| Temperature Uniformity: | ±3℃ | Wave Length Of Test Light Source: | 280~400nm |
| Air Pressure: | 86~ 106Kpa | Material: | Stainless Steel |
| High Light: | UV Weathering Test Chamber,Accelerated Weathering Chamber |
||
Programmable Controller Uv Light Testing Equipment AC220V 50HZ
UV Ageing Weathering Chamber Introduction:
Weatherometer fadeometer is another type of light aging testing machine simulating lighting, mainly UV in sunlight. It is able to simulate the damage created by nature rain and dew via exposing test samples to under-controlled interaction cycle of sunlight and moisture and rising temperature. The UV weather test chamber adopts Ultraviolet fluorescent to simulate sunlight and, at the same time simulate moisture influence through condensation or spray.
Test samples and performance evaluation:
1. Appearance assessment: the appearance of the coating is mainly assessed, and can also be visually assessed Plastic and Rubber necessary. The check project is mainly for gloss, color change, chalking, spots, blisters, cracks and dimensional stability, etc. Should try to use the instrument to do Quantitative detection, such as gloss, colorimeter.
2. Evaluation of the mechanical and other properties: tensile strength of general rubber material, elongation, hardness measurement, the measurement red plastic impact strength, elongation at break, tensile strength, flexural strength, if necessary, may require additional performance testing projects.
Specifications :
| Rubber Programmable Accelerated Weathering UV Aging Test Chamber Technical Parameters | ||
| Model | GSKA-UV-280 | |
| Internal Dimension W*H*D (cm) |
115*50*40 | |
| External Dimension W*H*D (cm) |
150*150*55 | |
| Applicable Standard | GB/T16422,GB/T5170.9 | |
| Temperature Range | R.T.+10degree C~+70degree C | |
| Temperature Fluctuation | ±0.5degree C | |
| Humidity Range | ≥95%R.H. | |
| Environmental Temperature for Use |
+5degree C~+35degree C | |

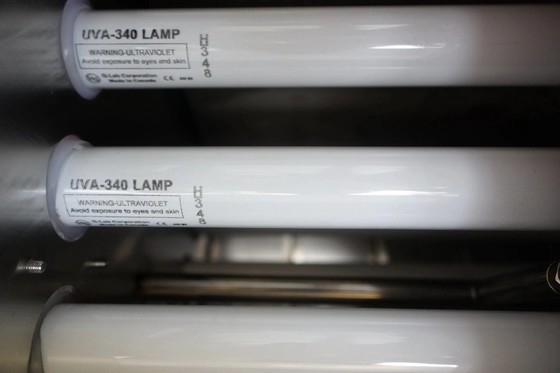

| Test Light Source | UVA,UVB UV light | |
| Wave Length of Test light Source (nm) |
280~400 | |
| Center Distance between Sample and Tube (mm) |
50±2 | |
| Center Distance Between Tubes (mm) |
75±2 | |
| Material of Internal Case | Stainless steel with sanding polish | |
| Material of External Case | Stainless steel with sanding polish or painting coated | |
| Heating and Humidifier | Electric-heat type steam generator ,heating and humidification | |
| Safety System | Operation Interface | Digital smarts touch key input (Programmable) |
| Running Mode | Program/constant running type | |
| Input | Black panel thermometer.PT-100 Sensor | |
| Standard Configuration | 1 pc Stainless steel shelves | |
| Safety Configuration | Protection of electric leakage, power outage when over-load, over-temperature protection, water short storage, ground lead protection | |
| Power | AC220V 1phase 3 lines, 50HZ | |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Package: Standard export wooden case, plywood case or according to customer's requirement.
If you need more info about this UV Weather Simulated Plastic Accelerated Aging Test Machine / Plastic Aging Chamber , please contact with us,thank you
