Product Details:
|
| Spray Quantity: | 1.0~2.0ml/80cm2/hour | Power Supply: | AC220V 1Phase 15A |
|---|---|---|---|
| Humidity Range: | 20%~98%RH | Testing Room Capacity: | 60,120,270,480L / Customized |
| Keyword: | Salt Spray Test Chamber | Controller: | Programmable LCD Touch Screen Casters |
| Air Pressure: | 86~ 106Kpa | Brand: | GSKA |
| High Light: | Salt Spray Test Chamber,Salt Spray Corrosion Tester |
||

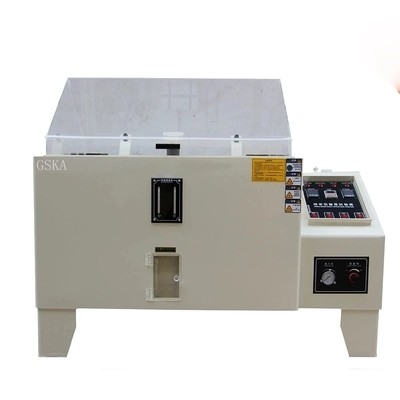

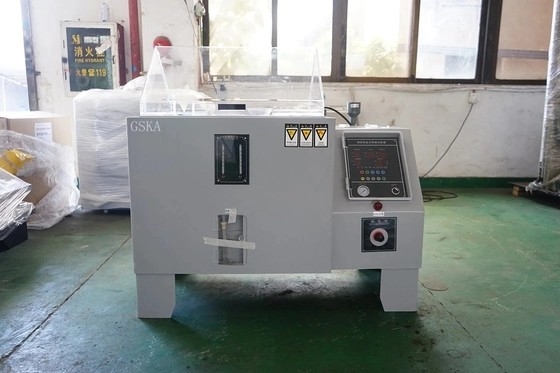

Touch Screen Laboratory Salt Spray Chamber For Electric Component Test Equipment
Characters:
1. Use special machine structure which can meet temperature and humidity well distribution.
2. Use environment-friendly refrigerant which meets international standard.
3. LCD display screen uses dialog box operating easy and user-friendly.
4. When fault occurs, display failure causes to help troubleshooting.
5. Have safety protection equipment and power failure memory.
6. Connect with computer, recorder(under user needs)
Applications:
The salt spray test chamber is a climate simulation device that tests the corrosion of electronic equipment, metallic material, as well as some surface treatment--coating, galvanizing, organic/inorganic coating, anodizing treatment, rust-proof oil coating, etc. Performance indicators in line with requirements of GB / T5170.8 Electrical and Electronic Products, Environmental Testing Equipment, the Basic Parameters of the Test Method. The salt spray corrosion test chamber according to GB / T2423.17 Electronic and Electrical Products Basic Environmental Test Procedures Test Ka: Salt Spray Test Method for neutral salt spray test can also be used for acetic acid salt test.
Technical Parameters:
| Inside box size(cm) | 60x45x40 | 90x60x50 | 120x80x50 |
| Outside box size(cm) | 107x60x118 | 141x88x128 | 190x110x140 |
| Testing room temperature | Salt test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃ | ||
| Pressure barrel temperature | Salt test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃ | ||
| Brine temperature | 35℃±1℃ 50℃±1℃ | ||
| Testing room Capacity | 108L | 270L | 480L |
| Brine tank capacity | 15L | 25L | 40L |
| Salt concentration | The concentration of sodium chloride 5% or the 5% concentration of sodium chloride add 0.26g per liter of copper chloride (CuCl2 2H2O) | ||
| Air pressure | 1.00±0.01kgf/cm2 | ||
| Spray volume | 1.0~2.0ml/80cm2/h (working at least 16 hours, and then take the average) | ||
| Testing room relative humidity | 85% above | ||
| PH | 6.5~7.2 3.0~3.2 | ||
| Spray form | Programmable spray (Including continuous and intermittent spray) | ||
| power | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A |
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
