Product Details:
|
| Customized Support: | OEM | Est Chamber Humidity: | >85% |
|---|---|---|---|
| Salt Tank Capacity: | 15L | Power Supply: | 220V 50/60Hz 1.2KW Single Phase |
| Test Chamber Size: | 600*450*400mm | Saturated Air Pressure: | 1.00±0.01kgf/cm2 |
| Test Chamber Capacity: | 108L | Warranty: | 1 Year |
| Highlight: | Salt Spray Test Chamber,Salt Spray Corrosion Tester |
||

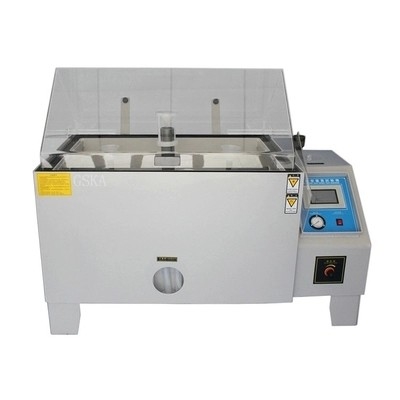

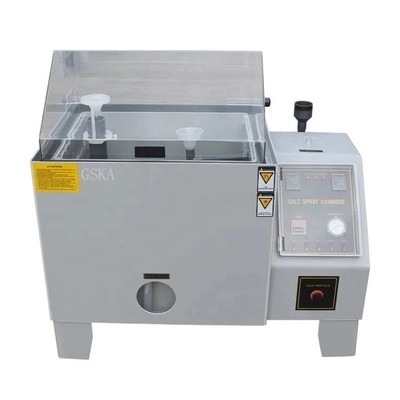

LED Display Climate Test And Salt Spray Corrosion Test Box Stainless Steel Material
Features:
* Fine workmanship, beautiful appearance, high transparency, pneumatic open cover.
* PVC plate, special treatment corrosion resistance, plastic steel V-shaped frame and stainless steel pipe Angle.
* With low water level, over temperature safety protection device, overload short circuit protection.
* Adopt automatic/manual water adding system, with automatic/manual water replenishment function when the water level is insufficient.
* Test time can be set multi-functional, with power failure memory function.
* Temperature controller using digital display, PID control.
* The test refill bottle adopts hidden type with water level perspective window, which is easy to clean and not easy to break.
Working principle:
Compressor transformed the liquid into gas and make them spray from nozzle to fall out on the samples.At the same time, the heater is used to keep the temperature within the box to judge the experiment result eventually.
|
ModelG
|
60A
|
G90A
|
G120A
|
G160A
|
|
Temp Range
|
Test Chamber: NSS ACSS 35±1℃, CASS 50±1℃
Saturated Air Barrel: NSS ACSS 47±1℃, CASS 63±1℃ |
|||
|
Test Chamber Capacity
|
108L
|
270L
|
480L
|
800L
|
|
Test Chamber Humidity
|
＞85%
|
|||
|
Salt Water Temp
|
NSS ACSS 35±1℃, CASS 50±1℃
|
|||
|
Salt Tank Capacity
|
15L
|
25L
|
40L
|
|
|
Brine Concentration
|
5% NaCl solution or 0.26gCuCl2 was added to 5% NaCl solution per liter
|
|||
|
Saturated Air Pressure
|
1.00±0.01kgf/cm2
|
|||
|
Spray
|
1.0~2.0ml/80cm2/h(The samples were collected for at least 16 hours and averaged.)
|
|||
|
Optional Accessory
|
Touch screen
|
|||
|
Power Supply
|
220V 50/60Hz 1.2KW single phase
|
|||
|
Test Chamber Size
|
600*450*400mm
|
900*600*500mm
|
1200*1000*500mm
|
1600*1000*500mm
|
|
External Size
|
1070*600*1180mm
|
1410*880*1280mm
|
1900*1100*1400mm
|
2300*1300*1400mm
|
Our advantages:
1) Direct factory with 10+ years manufacturing experience in test equipment.
2) Products are in accordance with ASTM, IEC, ISO, JIS and other international standard.
3) Overseas technical and onsite installation support, have been 8 countries, such as America, Turkey, Australia etc.
4) Professional R&D staff with more than 5 years experience in this filed.
