Product Details:
|
| Testing Time: | 0~999H, Adjustable | Material: | Stainless Steel |
|---|---|---|---|
| Humidity Range: | ≥75%RH | Brand: | GSKA |
| Keyword: | UV Weathering Test Chamber | Lamp Power: | 40W/Unit, 8PCS For Unit Chamber |
| Air Pressure: | 86~ 106Kpa | Power: | Electronic |
| High Light: | UV Weathering Test Chamber,Accelerated Weathering Chamber |
||

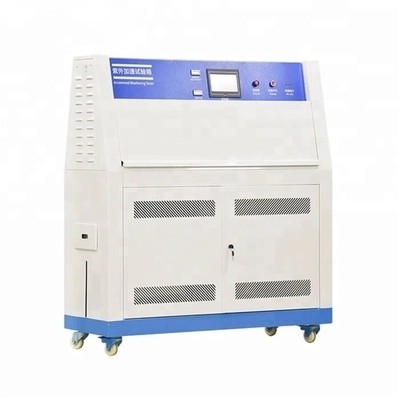

290-400nm UV Weathering Test Chamber Antirust Power Supply380V 50HZ
Product description:
Accelerated Weather UV test machine is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources. A variety of industrial products can make the reliability test, and this product can simulate the product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.
UV Accelerated Weathering Tester is the world's most widely used ,can be used in more labs throughout the world than any other accelerated weathering tester. It's used widely in the industry, such as printing ink, paint, pastics, print, packaging,motor van, metal, electron, medical... and so on.
Chamber Structure:
The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of SUS 304 steel plate.
The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.
Specifications of Aging UV Test Chamber:
| Product Name | UV Weathering Test Chamber | |
| Internal dimensions (mm) | 450*1170*500 | 450*1170*500 |
| Overall dimensions (mm) | 680*1300*1500 | 680*1300*1500 |
| Capacity of test specimens | 48 pieces Individual specimen size is 75mm * 150mm | 48 pieces Individual specimen size is 75mm *150mm |
| Controller | Programmable color display touch screen controller | Programmable color display touch screen controller |
| Temperature range | Ambient~90℃ ±2℃ | Ambient~90℃ ±2℃ |
| Humidity range | ≥95%R.H ±2%R.H |
≥95%R.H ±2%R.H
|
| Black Panel Temperature | BPT 30~80℃ | BPT 30~80℃ |
| Irradiation Source | Fluorescent UV lamps (8) - 40 W | Fluorescent UV lamps (8) - 40 W |
| UV wavelength | 290 ~ 400nm | 290 ~ 400nm |
| Irradiance Control | N/A | 0.3 ~ 20 W/㎡(340 nm / 313 nm) |
| Water Spray | Spraying water | Spraying water |
| Distance of Specimen and lamp | 50mm | 50mm |
| Nominal power | 5000W | 5500W |
| Power Supply | 380V 50HZ | 380V 50HZ |
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
