Product Details:
|
Model Number: | GSA-47X | Type: | Drying Oven |
---|---|---|---|
Drying Oven: | 800w | Packing: | 780*620*690mm |
Capacity: | 25L | Voltage: | 220V 50HZ, 220V 50HZ |
Temp. Range: | +10~200°C | Emp. Analysis: | 0.1°C |
Highlight: | Laboratory Muffle Furnace,Vacuum Drying Oven |

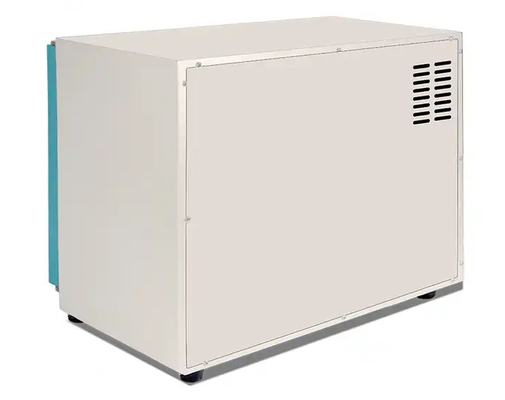

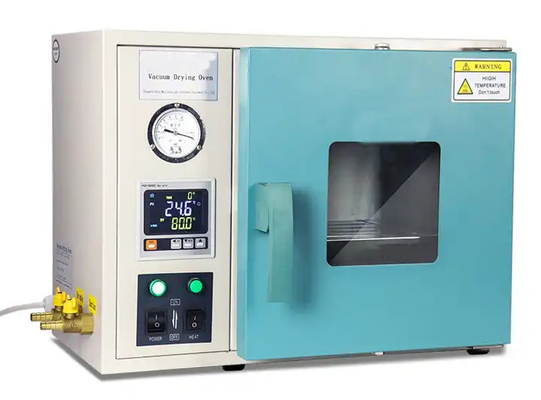

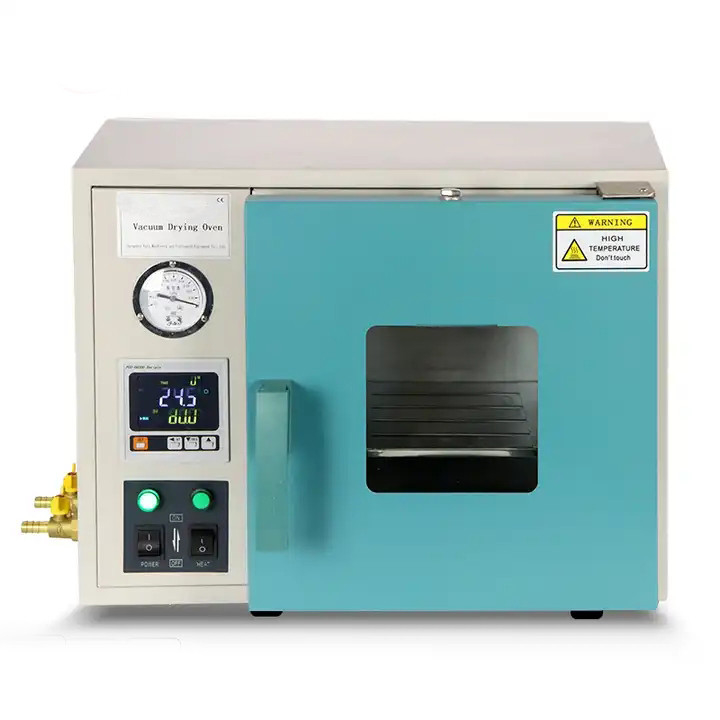

Dry Heat Sterilization Vacuum Drying Oven Temperature Range +10~200°C
product presentation:
Vacuum drying oven is designed for drying heat-sensitive, easy to decompose and easy to oxidize substances. When working, it can keep a certain vacuum degree in the working room, and can fill the inert gas into the interior, especially some complex components can also be dried quickly. The temperature is set, displayed and controlled by intelligent digital temperature regulator.
Vacuum drying oven is widely applied in research and application fields such as biochemistry, chemical pharmaceutical, medical and health, agricultural scientific research, environmental protection and so on, for drying, baking powder and all kinds of glass containers disinfection and sterilization. Particularly suitable for the dry heat sensitive, easy to decompose, easy oxidation material and complex component objects processing fast and efficient drying treatment.
technical specifications
Model | GSA-47X |
Power Supply | 220V/50HZ |
Liner Material | 304 Stainless SteelTemp. |
Range(°C) | RT+10-200 |
Max. Vacuum Degree(Mpa) | 0.098 |
workingTemp.(°C) | +5~40 |
Input Power (W) | 800 |
Chamber Capacity (L) | 25 |
Inner Dimension (W*D*H, mm) | 300*280*300 |
Overall Dimension (W*D*H, mm) | 620*500*480 |
Shelves (Pc) | 1 |
Time Range(min) | 1-9999 |
Optional Configuration | Explosion-proof1 |
FQA:
1,How many shelves does your oven can hold?
Different models hold different number shelves like 1, 2, 3 shelves. That will be according to the models.
2.What is your max temperature?
Max 250 degree C, 200 degree C is normal.
3, What kind of size do you have?
We have 8L(0.28 cu ft), 25L(0.9 cu ft), 55L(1.9 cu ft) and 91L(3.2 cu ft). They are normal and popular models. If you need bigger size we can supply it too.
4, Can you make 110V versions?
Yes, we can make it.
5, How is your oven heated?
There are many heating electric pipes surround the chamber inside, to keep the high temperature.
6, Could you make the temperature shows in Fahrenheit?
Yes, we can make it.
