Product Details:
|
| Model Number: | GSA-84KJ | Place Of Origin: | Donggaun,china |
|---|---|---|---|
| Accuracy: | 0.5% | The Perforation Of The Porous Plate: | Phi 3mm |
| Hydrograph Diameter: | Phi 200mm | Maximum Pressure: | 2.5MPa |
| The Sample Size: | Phi 200mm, | Size: | 450×710×870mm |
| Highlight: | 2.5MPa Resistant Water Pressure Tester,Geomedic Membrane Resistant Water Pressure Tester |
||

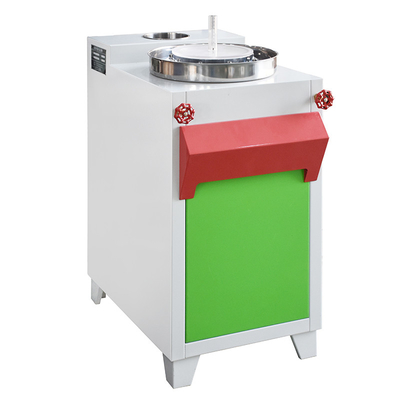

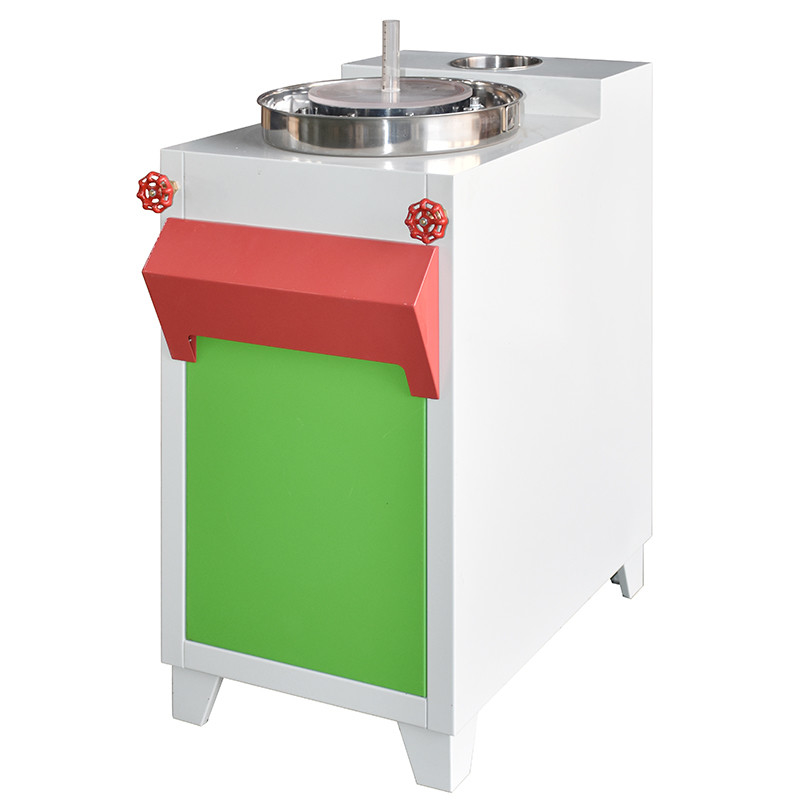

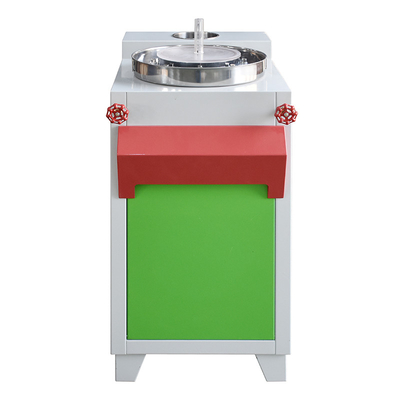

2.5MPa Geomedic Membrane Resistant Water Pressure Tester Model GSA-84KJ
Product Description
This instrument is based on JTGE50-2006, SL 235-2012, GB/T19979.1-2005 geosynthetic materials impermeable performance, permeability coefficient of the national standard research and design. All stainless steel fittings are used. It is suitable for the measurement of permeability coefficient of all kinds of geotechnical materials, stable performance, convenient and practical.
Implementation standard
GB/T19979.1-2005 "geosynthetics impermeability Part 1: Determination of hydrostatic pressure"
Code for Testing Geosynthetic Materials SL 235-2012
JTGE50-2006 Test Rules for Geosynthetic Materials in Highway Engineering
Product characteristics
1, stainless steel work surface
2, automatic water supply, configuration water tank
3, pull type controller, when the equipment is not used, the controller can be taken back into the case
| Accuracy | 0.50% |

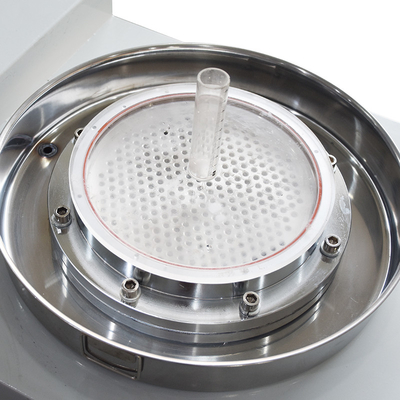

| The perforation of the porous plate | Phi 3mm |
| Hydrograph diameter | Phi 200mm |
| Maximum pressure | 2.5MPa |
| The sample size | Phi 200mm, |
| Effective cross-sectional area | ≥200 square centimeters |
| Pressure pump automatic water supply, voltage | 380v |
| Pressure adjustment range | 0~2.5MPa |
| Size | 450×710×870mm |
| Machine weight | 150Kg |
FAQ:
1. Are your company a trading one or a factory?
Factory ,13years focusing on test instruments field,3 years exporting experience.Our factory is in Dongguan, Guangdong, China
2. After an order is placed, when to deliver?
Usually about 15-30 working days, if we have finished products, we can arrange delivery within 15 working days.
Please note that our production lead time depends on the specific project and the number of projects.
3. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sales service team will provide comprehensive technical support to help customers solve problems encountered when using our products, and promptly handle customer problems and complaints.
4. What about the services and product' quality?
Service: ,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
