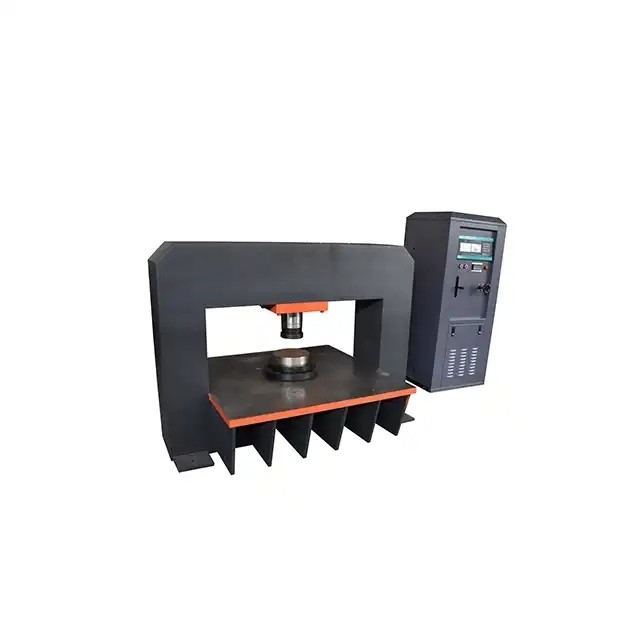

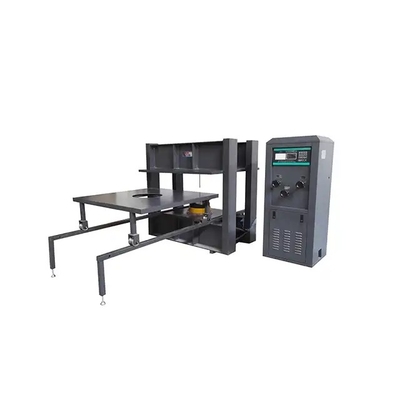

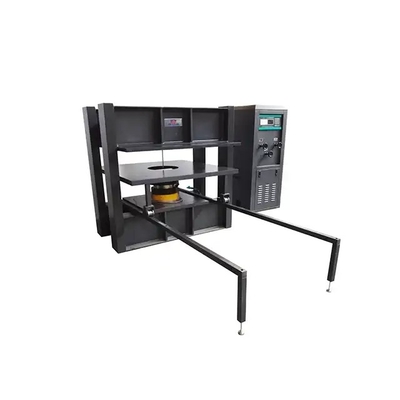

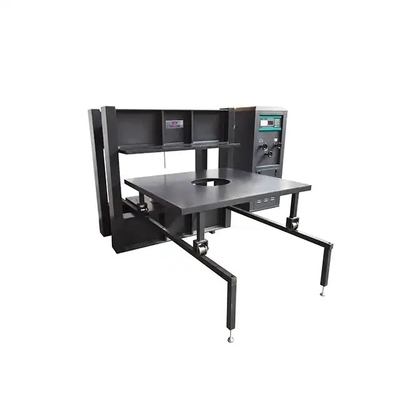

Reinforced Concrete Manhole Cover Compression Testing Machine 500KN

Large Image : Reinforced Concrete Manhole Cover Compression Testing Machine 500KN

Product Details:

Place of Origin:	Donggaun,china
Brand Name:	GSKA
Certification:	ce
Model Number:	Manhole cover testing machine

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiation
Packaging Details:	Packed in foam firstly,and then reinforced with strong carton box for outer packing
Delivery Time:	7-10working days after received deposit
Payment Terms:	T/T, L/C
Supply Ability:	100 Set / Sets per Month

Contact Now

Reinforced Concrete Manhole Cover Compression Testing Machine 500KN

Description

Maximum Test Force:	500KN	Test Accuracy:	Less Than 1%
Loading Rate:	0.5-10 KN/S	Maximum Stroke Of Piston:	200mm
Upper Pressure Head Size:	Phi 356mm	Test Force Measurement Range:	5-500KN
Test Compression Space:	0-350mm	Warranty:	12 Months
High Light:	200mm Compression Testing Machine , Manhole Cover Compression Testing Machine , 500KN Compression Testing Machine

500KN Reinforced Concrete Manhole Cover Compression Testing Machine Price

Application:

The test machine is suitable for the test of bearing capacity of less than 1000KN. The main structure adopts welding structure and aging treatment to ensure the rigidity of the whole machine. The hydraulic cylinder is placed under the upper beam. When the work is done, the piston extends out of the lower pressure sample and the size of the table surface is fixed (width x long): 1200x1200mm. The pressure head is quenched in high quality alloy structural steel (HRC45-50) to ensure its service life. Using high precision hydraulic drive hydraulic cylinder, cylinder and piston with special sealing material, achieve high efficiency sealing, low friction, long life, the use of professional testing machine oil pump motor group, low noise, long service life, using super fine oil filter to ensure oil within the system so as to ensure the implementation of long-term control of clean working elements.

Technical Parameters:

Maximum test force	500KN
Test force measurement range	5-500KN, the whole file
Test accuracy	less than 1% (better than 1)
Loading rate	0.5-10 KN/S (manual stepless speed regulation)
Maximum stroke of piston	200mm
Test compression space	0-350mm
Upper pressure head size	Phi 356mm
Workspace	1200mmX1200mm
Power	0.75KW
Main size	1710x1200x1260mm (length X, width X height)
Host weight	2500Kg

Reinforced Concrete Manhole Cover Compression Testing Machine 500KN 0

Customer Support Services:

Ø Installation

Ø Training (Training customer employees)

Ø Calibration

Ø Preventative maintenance

Ø Replacement parts

Ø Assistance via phone or internet

Ø On-site diagnosis and repair/online diagnosis and repair
