Product Details:
|
| Test Box Material: | Stainless Steel | Test Piece Thickness: | ≤60mm |
|---|---|---|---|
| Flame Height: | (20 ± 1) Mm | Lgnition Timing: | 15s, 30s |
| Power Supply: | 220V±10% 50Hz | Product Size: | 900*400*910mm |
| Warranty: | 12 Months | ||
| High Light: | Ce Flammability Test Device,Flammability Test Device 220V |
||

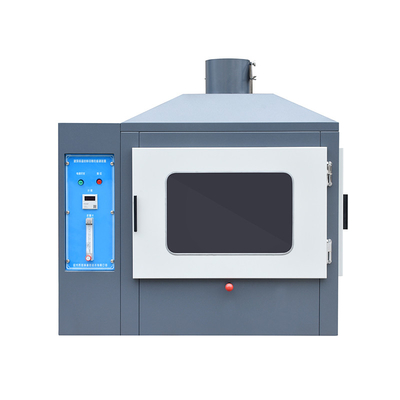

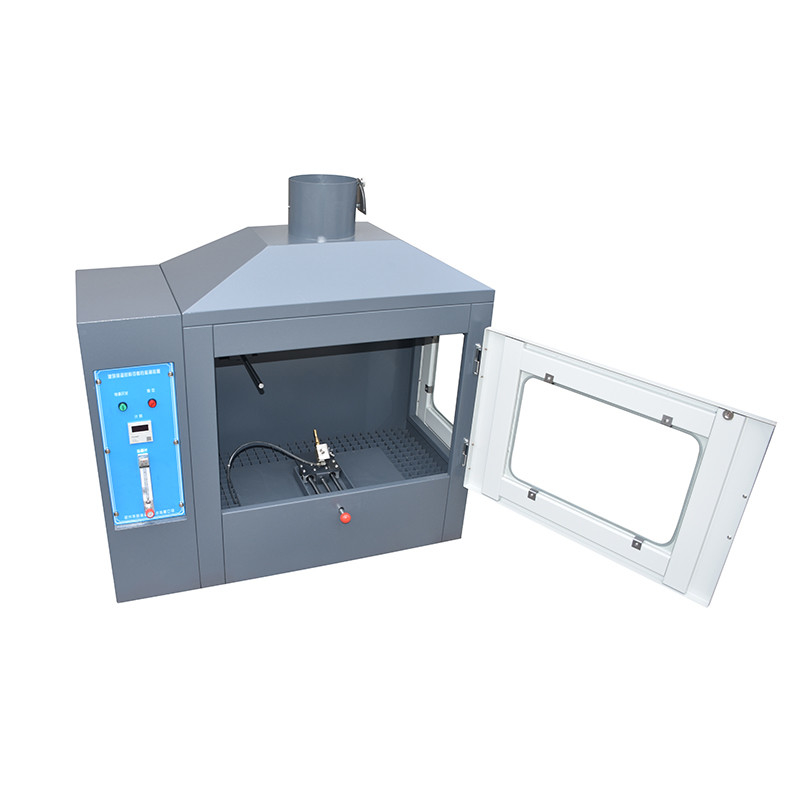

Flammability Test Device For Building Thermal Insulation Materials
Product introduction:
This product is mainly used for external wall insulation system and various building materials combustion performance test, determine whether building materials have flammability test instrument. Widely used in heat resistant and thermal insulation materials production enterprises, related quality inspection departments and units, colleges and universities and research institutes.
Flammability and Fire Testing (Building Materials) * Room Burn Apparatus: Flammability tests for wall panels, wall coverings, foam plastics, and an assortment of other materials and configurations.
Open Calorimeter: Calorimeter tests in compliance with federal, state or local fire codes and requirements including testing to UL 1056 and UL 1895.
Product characteristics:
1, the box is made of stainless steel design and manufacture, beautiful appearance, smoke resistance, corrosion resistance, anti-aging, durable.

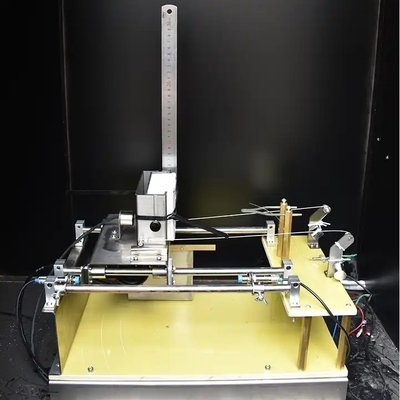

2, the use of manual, the test part and the burner between the X, Y, Z direction of the relative movement, as well as around the Z axis of the quarter rotation, can be very convenient to determine the relative position between the test part and the burner.
Nozzle aperture | ¢0.17mm |
Flame height | (20 ± 1) mm |
Lgnition timing | 15s, 30s |
Use gas | propane gas with a purity of more than 95% |
Sample size | 250mm × 90mm 250mm × 180mm |
Test piece thickness | ≤60mm |
Ambient temperature | (23±5) °C |
Relative humidity | (50±20)%RH |
Power | AC220V±10% 50HZ |
Product size | 900*400*910mm |
Test box material | stainless steel |
Specimen holder | Two U-shaped stainless steel frames, 5.0mm thick |
Burner | at an angle of 45 degrees to the horizontal |
Flue air flow rate | 0.7m/s |
Anemometer measurement accuracy | ±0.1m/s |
Has six moving parts: (1) Y-direction movement (2) X-direction movement (3) Z-direction movement (4) Y-direction sliding (5) Rotation around the Z-axis (6) Burner around the X direction -450~+450 swing | |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
