Product Details:
|
| Underwear Bra Cup Mac: | Bra Pad Molding Machine | Over-Lock Stitch: | Bra Pad Molding Machine / Underwear Bra Cup Machi |
|---|---|---|---|
| Automatic Grade: | Automatic | Bra Cup Machine: | Bra Cup |
| HS Code: | 8401100000 | Product Name: | Bra Cup Molding Machine |
| High Light: | Seamless Bonding Machine,Bra Cup Molding Machine |
||

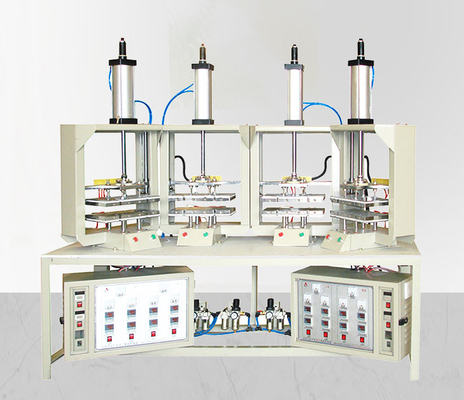

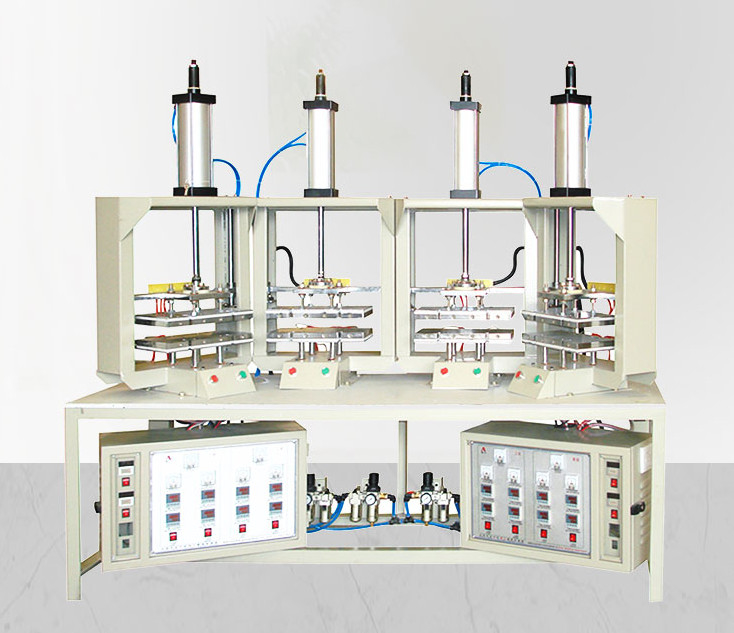

Bra Cup Molding Machine
Function: It is mainly used to mold foam bra cups, bra pads and other similar products such as shoulder pads, hip pads, bike pads and etc.
Features:
1. With double molding tables, four guiding pillars with good rigidity. High precision with guiding, stable in clamping moulds.
2. Special temperature control system. We utilize silicon controlled phase shifting triggering current to control heating. So, it can make the temperature more even and steady with remarkable energy-saving efficiency.
3. It is best suitable for molding European big sizes bra cups. Equipped with automatic smoke-exhausting devices, cooling fans installed in the inner part of worktable. It is environment friendly and benefit for heat elimination of molded bra cups.
Power supply/power: 220V/8KW
Specification of the electro-thermal pipe:Φ9.45*350mm*400W-220V
Dimension of the mould table:550mm*350mm
Dimension of the machine:2000mm*930mm*2200mm
Applicable material: Fabrics for bra and other garments

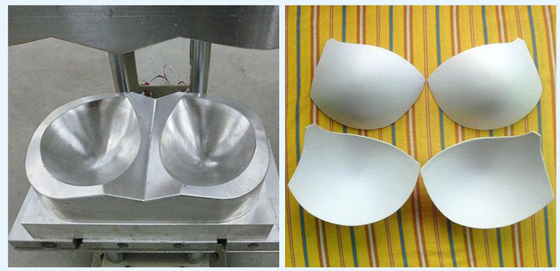

Applicable moulds: Moulds for foam cups
Weight:1000KG
| Power supply/power | 220V/9.6KW |
Specification of the electro-thermal pipe |
Φ12×300mm×400W-220V |
Dimension of the mould table |
500mm×300mm |
Dimension of the machine |
1700mm×820mm×2100mm |
Applicable material |
foam / sponge, laminated foam-fabric sheets |
Applicable moulds |
Moulds for foam bra cups |
Weight |
1000KG |
If you need more info about Bra Cup Molding Machine, please let us know,thank you
