Product Details:
|
| Torque: | 2.4-120Kgf.cm | Certification: | CE,RoHS |
|---|---|---|---|
| Gearbox Diameter: | 42mm | Speed(RPM): | 1.6-1620RPM |
| Continuous Current(A): | 0.01-1A | ||
| High Light: | Tricycle High Power Motor,3000W Brushless Gear Motor,Electric Bicycle Brushless DC Motor |
||

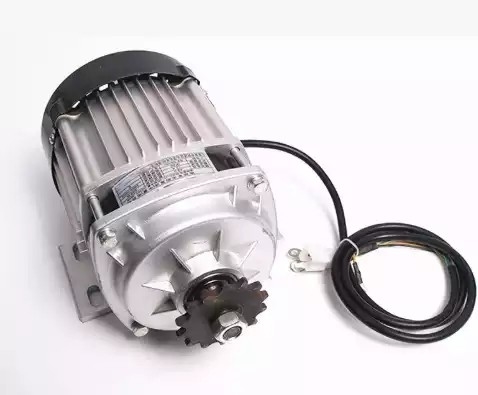

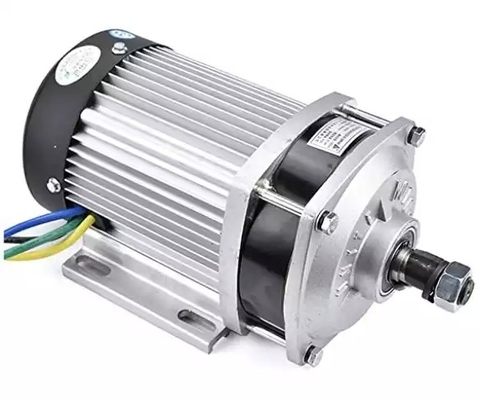

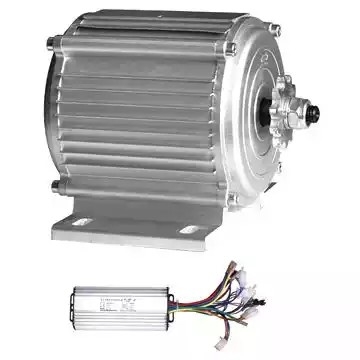

24/48V Tricycle High Power Motor Electric Bicycle Brushless DC Motor 3000W
Product Application:
High speed permanent magnet brushless motor:
It is composed of stator core, magnetic steel rotor, sun wheel, decelerating clutch and hub shell.
Hall sensor can be installed on the motor cover to measure speed.
There are three types of position sensors: magnetic, photoelectric and electromagnetic.
Brushless DC motor with magnetically sensitive position sensor, the magnetically sensitive sensor (such as hall element, magnetically sensitive diode, magnetically sensitive electrode, magneto resistor or ASIC, etc.) is installed on the stator assembly, used to detect the permanent magnet, rotor rotation of the magnetic field changes. Electric cars mostly use Hall components.
The brushless DC motor with photoelectric position sensor is equipped with photoelectric sensor on the stator assembly according to a certain position, the rotor is equipped with a light screen, the light source is a light emitting diode or a small bulb. When the rotor is rotating, the photosensitive components on the stator will generate pulse signals intermittently at a certain frequency due to the action of the light screen.
The brushless DC motor with electromagnetic position sensor is equipped with electromagnetic sensor components (such as coupling transformer, proximity switch, LC resonance circuit, etc.) on the stator assembly. When the rotor position of permanent magnet changes, electromagnetic effect will make the electromagnetic sensor generate high-frequency modulated signals (the amplitude of which changes with the rotor position).
Note:
The typical specifications below are just for your reference. BLDC motors can be customized. Please feel free to contact us if you can't find the motor you required. We are always here being ready to help.
Often ask questions:
Q: What are your main products?
A: We currently produce brushed DC motors, brushed DC gear motors, planetary DC gear motors, brushless DC motors, stepper motors, AC motors and high precision planetary gearboxes. You can view the specifications of the above motors on our website and you can email us to recommend the motors required according to your specifications.
Q: How to choose the right motor?
A: If you have pictures or drawings of the motor to show us, or if you have detailed specifications such as voltage, speed, torque, motor size, motor working mode, required life and noise level, please feel free to let us know so that we can recommend A suitable motor according to your requirements.
Q: Do you have a custom service for your standard motors?
A: Yes, we can customize according to your requirements for voltage, speed, torque and shaft size/shape. If you need to solder additional wires/cables to the terminals or need to add connectors, capacitors or EMCs, we can also manufacture.
Q: Do you have a separate motor design service?
A: Yes, we would like to design the motor separately for the customer, but there may be some die development costs and design costs.
Q: What is your delivery time?
A: Generally speaking, it takes 15-30 days for our regular standard products and longer for our custom products. But we are very flexible about the delivery time, which will depend on the specific order.
