Product Details:
|
| Weight: | 1250g | Horsepower: | 200W |
|---|---|---|---|
| Gearbox Diameter: | 42mm | Torque: | 2.4-120Kgf.cm |
| Speed(RPM): | 1.6-1620RPM | Continuous Current(A): | 0.01-1A |
| High Light: | 300w Brushless DC Motor,Brake Brushless DC Motor,7.9A Brushless Gear Motor |
||

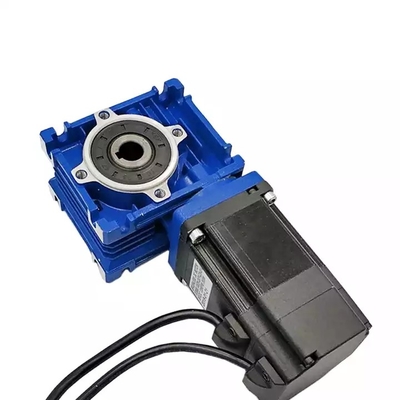

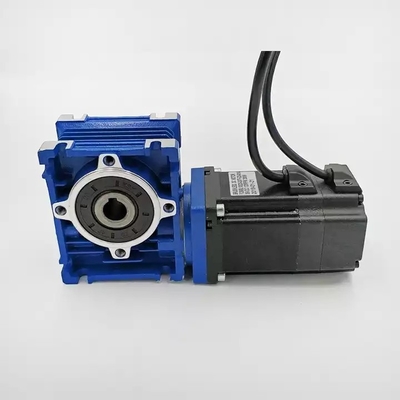

200w 300w Worm Gear Reduction Brake Brushless DC Motor Rated Load Current 7.9A
Comparison of brushless motor and brushless motor:
The difference between the power principle of brushless motor and brushless motor is as follows: the brushless motor is mechanically reversed by the carbon brush and commutator, while the brushless motor is electronically reversed by the controller through the induction signal of Hall components.
The power principle of brushless motor and brushless motor is different, and its internal structure is different. For hub motor, the output mode of motor torque (whether it is decelerated by gear reduction mechanism) is not the same, and its mechanical structure is not the same.
1, common high-speed brush motor internal mechanical structure. The hub-type motor consists of a built-in high-speed brush motor center, reduction gear set, overrunning clutch, hub end cover and other components. High - speed brush - gear - hub motor is an inner - rotor motor.
2, common low speed brush motor internal mechanical structure. The hub-type motor is composed of carbon brush, phase changer, motor rotor, motor stator, motor shaft, motor end cover, bearing and other components. Low speed brushless gearless hub motor belongs to external rotor motor.
3, common high speed brushless motor internal mechanical structure. The hub type motor is composed of built-in high-speed brushless motor heart, planetary friction roller, overload clutch, output flange, end cover, hub housing and other components. High speed brushless gear hub motor belongs to inner rotor motor.
4, common low speed brushless motor internal mechanical structure. The hub-type motor is composed of motor rotor, motor stator, motor shaft, motor end cover, bearing and other components. Low speed brushless gearless hub motor belongs to external rotor motor.
SPECIFICATION:
| MOTOR FRAME SIZE | 60 mm / 70mm / 80mm / 90mm / 104mm | ||
| MOTOR TYPE | Dc brushed type / dc brushless type | ||
| Motor speed | 450 rpm - 10000 rpm ( can be suctomized) normal speed is 1500/1800/2500/3000 rpm | ||
| OUTPUT POWER | 6W / 10W / 15W / 25W / 40W / 60W / 90W / 120 W /150W / 180W / 250W ......1000W(can be customized) | ||
| OUTPUT SHAFT | 8mm / 10mm / 12mm / 15mm ; round shaft, D-cut shaft, keyway shaft (can be customized) | ||
| Voltage type | 12V / 24V / 36V / 48V / 90V / 110V /220V | ||
| Accessories | electromagnetic brake / encoder | ||
| GEARBOX FRAME SIZE | 60 mm / 70mm / 80mm / 90mm / 104mm | ||
| GEAR RATIO | MINIMUM 3:1---------------MAXIMUM 750:1 | ||
| GEARBOX TYPE | PARALLEL SHAFT GEARBOX AND STRENGTH TYPE | ||
| Right angle hollow worm shaft | Right angle spiral bevel hollow shaft | L type hollow shaft | |
| Righjt amgle solid worm shaft | Right angle spiral bevel solid shaft | L type solid shaft | |
| K2 series airtightness improved type | |||
| Certification | CCC CE UL RoHS | ||
Often ask questions:
Q: What are your main products?
A: We currently produce brushed DC motors, brushed DC gear motors, planetary DC gear motors, brushless DC motors, stepper motors, AC motors and high precision planetary gearboxes. You can view the specifications of the above motors on our website and you can email us to recommend the motors required according to your specifications.
Q: How to choose the right motor?
A: If you have pictures or drawings of the motor to show us, or if you have detailed specifications such as voltage, speed, torque, motor size, motor working mode, required life and noise level, please feel free to let us know so that we can recommend A suitable motor according to your requirements.
Q: Do you have a custom service for your standard motors?
A: Yes, we can customize according to your requirements for voltage, speed, torque and shaft size/shape. If you need to solder additional wires/cables to the terminals or need to add connectors, capacitors or EMCs, we can also manufacture.
Q: Do you have a separate motor design service?
A: Yes, we would like to design the motor separately for the customer, but there may be some die development costs and design costs.
Q: What is your delivery time?
A: Generally speaking, it takes 15-30 days for our regular standard products and longer for our custom products. But we are very flexible about the delivery time, which will depend on the specific order.
