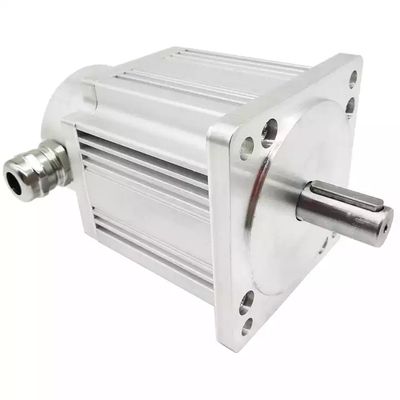

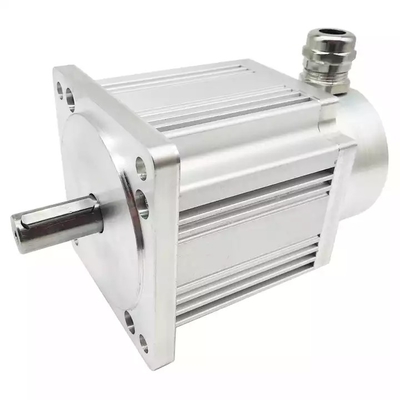

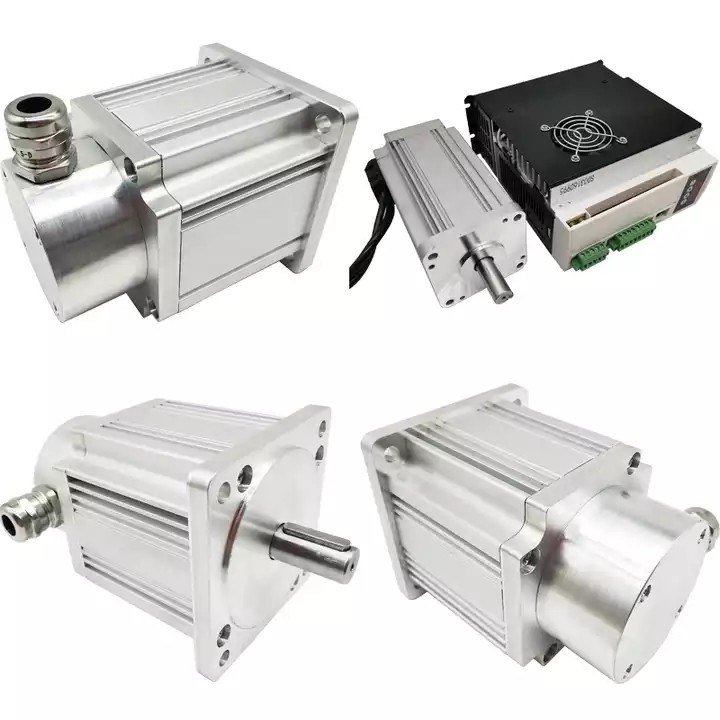

200W 750W Gear High Torque DC Motor Waterproof And Drip Proof

200W 750W Gear High Torque DC Motor Is Waterproof And Drip Proof

Principle of Operation:

Brushless DC motor uses semiconductor switching devices to realize electronic commutation, that is, electronic switching devices instead of the traditional contact commutator and brush. It has the advantages of high reliability, no reversing spark, low mechanical noise, and is widely used in high-grade recording seat, video recorder, electronic instruments and automatic office equipment.

Brushless DC motor is composed of permanent magnet rotor, multipole winding stator, position sensor and so on. According to the change of the rotor position, the position sensor converts the current of the stator winding in a certain sequence (that is, the position of the magnetic pole of the rotor relative to the stator winding is detected, and the position sensing signal is generated at the determined position. After the signal conversion circuit is processed, the power switch circuit is controlled, and the winding current is switched according to a certain logical relationship). The operating voltage of the stator windings is provided by an electronic switching circuit controlled by the output of the position sensor.

There are three types of position sensors: magnetic, photoelectric and electromagnetic.

Brushless DC motor with magnetically sensitive position sensor, the magnetically sensitive sensor (such as hall element, magnetically sensitive diode, magnetically sensitive electrode, magneto resistor or ASIC, etc.) is installed on the stator assembly, used to detect the permanent magnet, rotor rotation of the magnetic field changes.

The brushless DC motor with photoelectric position sensor is equipped with photoelectric sensor on the stator assembly according to a certain position, the rotor is equipped with a light screen, the light source is a light emitting diode or a small bulb. When the rotor is rotating, the photosensitive components on the stator will generate pulse signals intermittently at a certain frequency due to the action of the light screen.

The brushless DC motor using electromagnetic position sensor is equipped with electromagnetic sensor components (such as coupling transformer, proximity switch, LC resonance circuit, etc.) on the stator assembly. When the rotor position of permanent magnet changes, electromagnetic effect will make the electromagnetic sensor generate high-frequency modulated signals (the amplitude of which changes with the rotor position).

SPECIFICATION:

Often ask questions:

Q: What are your main products?

A: We currently produce brushed DC motors, brushed DC gear motors, planetary DC gear motors, brushless DC motors, stepper motors, AC motors and high precision planetary gearboxes. You can view the specifications of the above motors on our website and you can email us to recommend the motors required according to your specifications.

Q: How to choose the right motor?

A: If you have pictures or drawings of the motor to show us, or if you have detailed specifications such as voltage, speed, torque, motor size, motor working mode, required life and noise level, please feel free to let us know so that we can recommend A suitable motor according to your requirements.

Q: Do you have a custom service for your standard motors?

A: Yes, we can customize according to your requirements for voltage, speed, torque and shaft size/shape. If you need to solder additional wires/cables to the terminals or need to add connectors, capacitors or EMCs, we can also manufacture.

Q: Do you have a separate motor design service?

A: Yes, we would like to design the motor separately for the customer, but there may be some die development costs and design costs.

Q: What is your delivery time?

A: Generally speaking, it takes 15-30 days for our regular standard products and longer for our custom products. But we are very flexible about the delivery time, which will depend on the specific order.
